Documentation for AIXM 5.1.1
Definition Type: Element
Name: directedNode
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DirectedNodePropertyType
Containing Schema: topology.xsd
Abstract
Documentation:
A gml:directedNode property element describes the boundary of topology edges and is used in the support of topological point features via the gml:TopoPoint expression, see below. The orientation attribute of type gml:SignType expresses the sense in which the included node is used: start ("-") or end ("+") node.

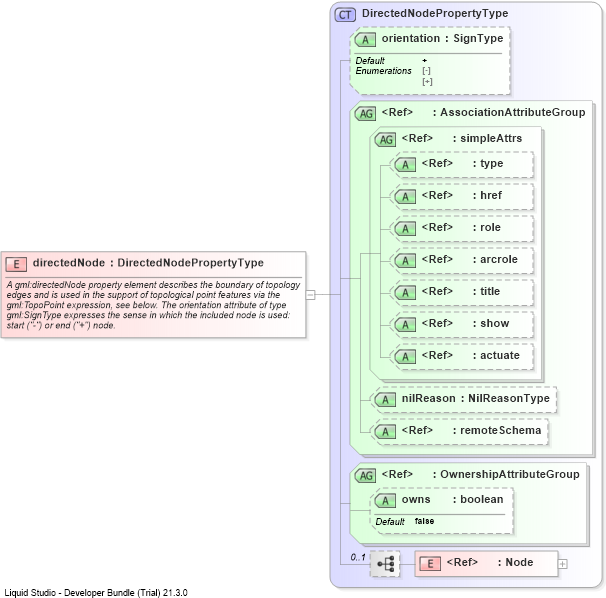

Collapse XSD Schema Diagram:
Drilldown into NodeDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into orientationDrilldown into DirectedNodePropertyTypeXSD Diagram of directedNode
Collapse XSD Schema Code:
<element name="directedNode" type="gml:DirectedNodePropertyType">
    <annotation>
        <documentation>A gml:directedNode property element describes the boundary of topology edges and is used in the support of topological point features via the gml:TopoPoint expression, see below. The orientation attribute of type gml:SignType expresses the sense in which the included node is used: start ("-") or end ("+") node.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Node gml:Node (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
orientation gml:orientation + (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
owns gml:owns false (Optional)
Collapse Derivation Tree:
