Definition Type: Element
Name: Node
Namespace: http://www.opengis.net/gml/3.2
Type: gml:NodeType
Containing Schema: topology.xsd
Abstract
Documentation:
gml:Node represents the 0-dimensional primitive.
The optional coboundary of a node (gml:directedEdge) is a sequence of directed edges which are incident on this node. Edges emanating from this node appear in the node coboundary with a negative orientation.
If provided, the aggregationType attribute shall have the value "sequence".
A node may optionally be realised by a 0-dimensional geometric primitive (gml:pointProperty).

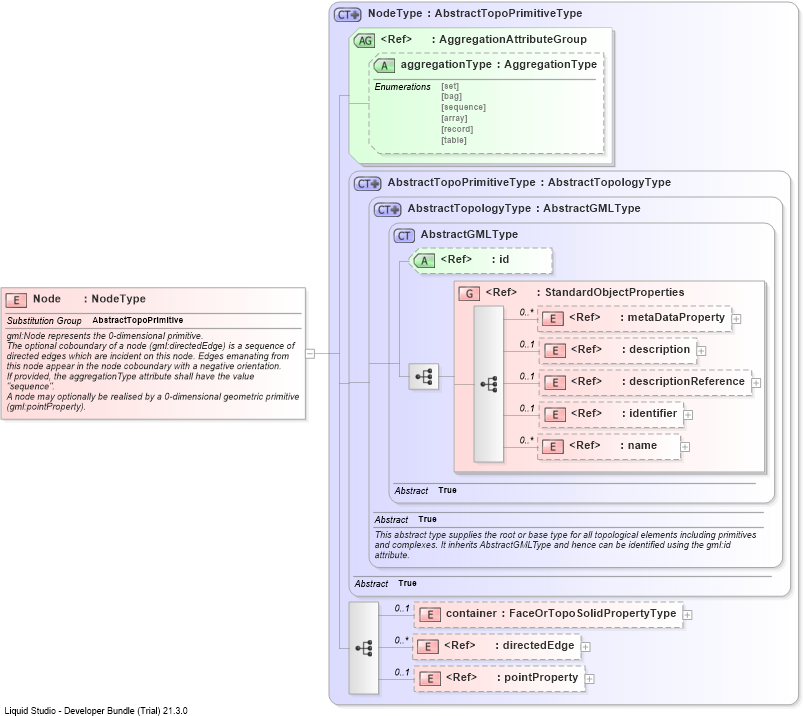

Collapse XSD Schema Diagram:
Drilldown into pointPropertyDrilldown into directedEdgeDrilldown into containerDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into AbstractTopologyTypeDrilldown into AbstractTopoPrimitiveTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into NodeTypeXSD Diagram of Node
Collapse XSD Schema Code:
<element name="Node" type="gml:NodeType" substitutionGroup="gml:AbstractTopoPrimitive">
    <annotation>
        <documentation>gml:Node represents the 0-dimensional primitive.
The optional coboundary of a node (gml:directedEdge) is a sequence of directed edges which are incident on this node. Edges emanating from this node appear in the node coboundary with a negative orientation.
If provided, the aggregationType attribute shall have the value "sequence".
A node may optionally be realised by a 0-dimensional geometric primitive (gml:pointProperty).</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
container gml:container 0 (1)
directedEdge gml:directedEdge 0 unbounded
pointProperty gml:pointProperty 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractTopoPrimitive
