Definition Type: ComplexType
Name: NodeType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:AbstractTopoPrimitiveType
Containing Schema: topology.xsd
Abstract

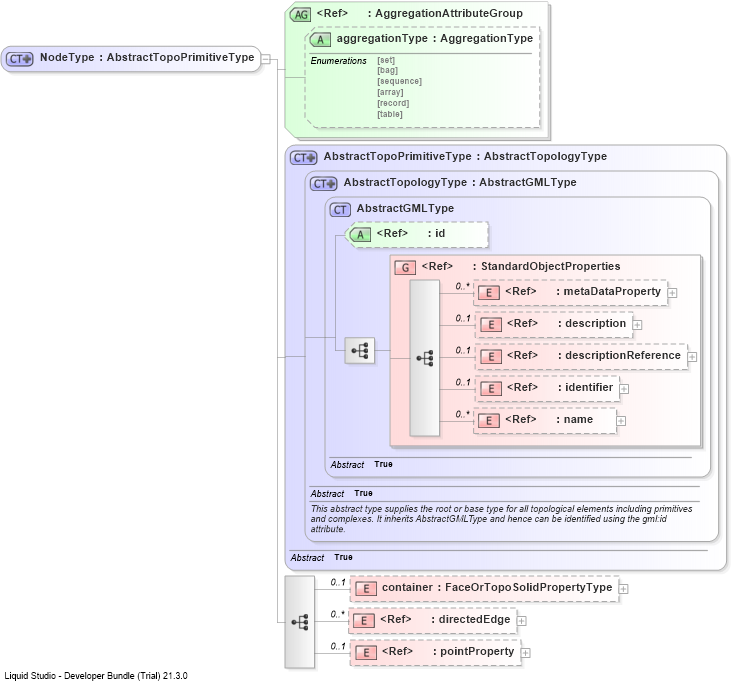

Collapse XSD Schema Diagram:
Drilldown into pointPropertyDrilldown into directedEdgeDrilldown into containerDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into AbstractTopologyTypeDrilldown into AbstractTopoPrimitiveTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupXSD Diagram of NodeType
Collapse XSD Schema Code:
<complexType name="NodeType">
    <complexContent>
        <extension base="gml:AbstractTopoPrimitiveType">
            <sequence>
                <element name="container" type="gml:FaceOrTopoSolidPropertyType" minOccurs="0" />
                <element ref="gml:directedEdge" minOccurs="0" maxOccurs="unbounded">
                    <annotation>
                        <documentation>In the case of planar topology, a gml:Node must have a clockwise sequence of gml:directedEdge properties, to ensure a lossless topology representation as defined by Kuijpers, et. al. (see OGC 05-102 Topology IPR).</documentation>
                    </annotation>
                </element>
                <element ref="gml:pointProperty" minOccurs="0" />
            </sequence>
            <attributeGroup ref="gml:AggregationAttributeGroup" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
container gml:container 0 (1)
directedEdge gml:directedEdge 0 unbounded
pointProperty gml:pointProperty 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:Node
