Documentation for AIXM 5.1.1
Definition Type: Element
Name: direction
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DirectionPropertyType
Containing Schema: direction.xsd
Abstract
Documentation:
The property gml:direction is intended as a pre-defined property expressing a direction to be assigned to features defined in a GML application schema.

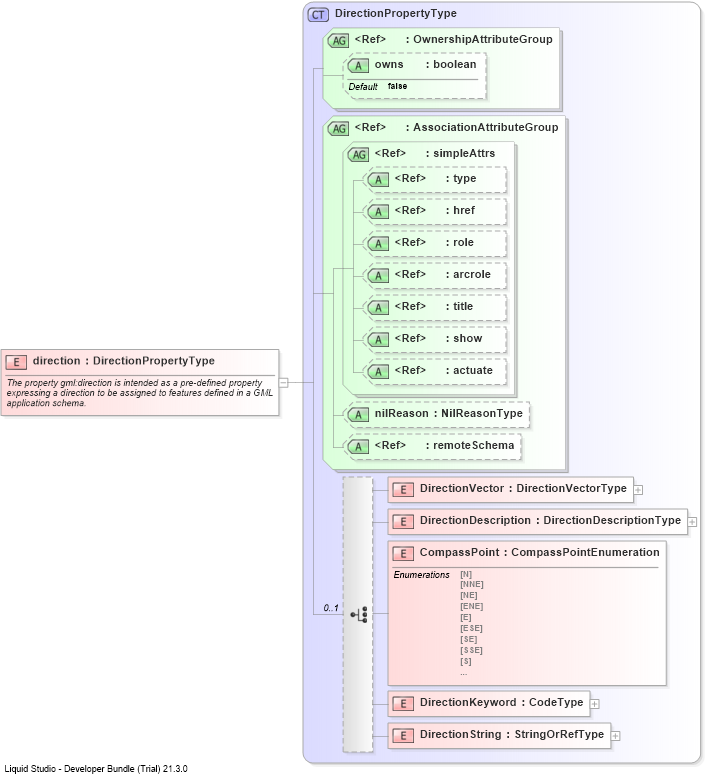

Collapse XSD Schema Diagram:
Drilldown into DirectionStringDrilldown into DirectionKeywordDrilldown into CompassPointDrilldown into DirectionDescriptionDrilldown into DirectionVectorDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into ownsDrilldown into OwnershipAttributeGroupDrilldown into DirectionPropertyTypeXSD Diagram of direction
Collapse XSD Schema Code:
<element name="direction" type="gml:DirectionPropertyType">
    <annotation>
        <documentation>The property gml:direction is intended as a pre-defined property expressing a direction to be assigned to features defined in a GML application schema.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DirectionVector gml:DirectionVector (1) (1)
DirectionDescription gml:DirectionDescription (1) (1)
CompassPoint gml:CompassPoint (1) (1)
DirectionKeyword gml:DirectionKeyword (1) (1)
DirectionString gml:DirectionString (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
owns gml:owns false (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
