Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: DirectionPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: direction.xsd
Abstract

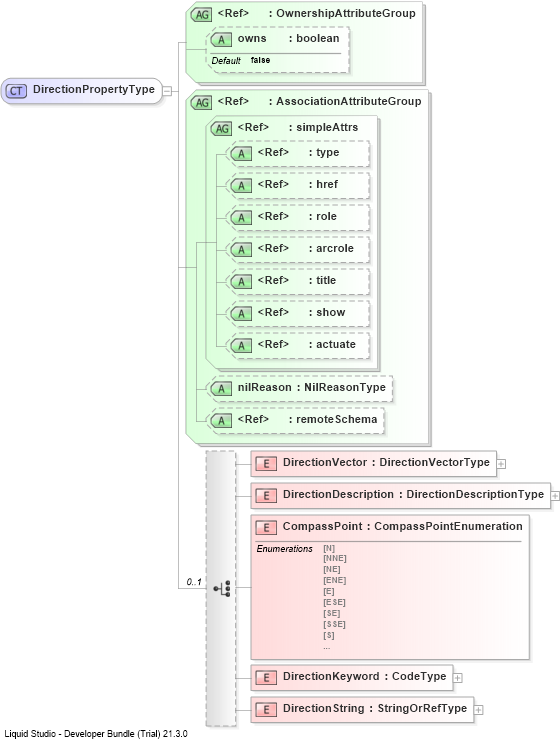

Collapse XSD Schema Diagram:
Drilldown into DirectionStringDrilldown into DirectionKeywordDrilldown into CompassPointDrilldown into DirectionDescriptionDrilldown into DirectionVectorDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupDrilldown into ownsDrilldown into OwnershipAttributeGroupXSD Diagram of DirectionPropertyType
Collapse XSD Schema Code:
<complexType name="DirectionPropertyType">
    <choice minOccurs="0">
        <element name="DirectionVector" type="gml:DirectionVectorType" />
        <element name="DirectionDescription" type="gml:DirectionDescriptionType" />
        <element name="CompassPoint" type="gml:CompassPointEnumeration" />
        <element name="DirectionKeyword" type="gml:CodeType" />
        <element name="DirectionString" type="gml:StringOrRefType" />
    </choice>
    <attributeGroup ref="gml:OwnershipAttributeGroup" />
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DirectionVector gml:DirectionVector (1) (1)
DirectionDescription gml:DirectionDescription (1) (1)
CompassPoint gml:CompassPoint (1) (1)
DirectionKeyword gml:DirectionKeyword (1) (1)
DirectionString gml:DirectionString (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
owns gml:owns false (Optional)
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:bearing, gml:direction
