Documentation for AIXM 5.1.1
Definition Type: Element
Name: EllipsoidalCS
Namespace: http://www.opengis.net/gml/3.2
Type: gml:EllipsoidalCSType
Containing Schema: coordinateSystems.xsd
Abstract
Documentation:
gml:EllipsoidalCS is a two- or three-dimensional coordinate system in which position is specified by geodetic latitude, geodetic longitude, and (in the three-dimensional case) ellipsoidal height. An EllipsoidalCS shall have two or three gml:axis property elements; the number of associations shall equal the dimension of the CS.

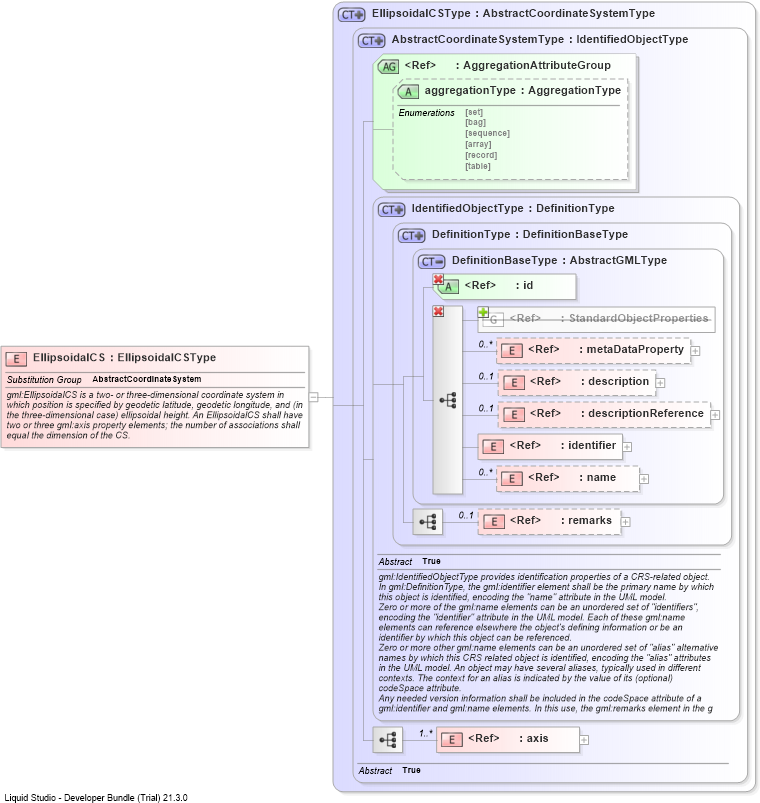

Collapse XSD Schema Diagram:
Drilldown into axisDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into IdentifiedObjectTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into AbstractCoordinateSystemTypeDrilldown into EllipsoidalCSTypeXSD Diagram of EllipsoidalCS
Collapse XSD Schema Code:
<element name="EllipsoidalCS" type="gml:EllipsoidalCSType" substitutionGroup="gml:AbstractCoordinateSystem">
    <annotation>
        <documentation>gml:EllipsoidalCS is a two- or three-dimensional coordinate system in which position is specified by geodetic latitude, geodetic longitude, and (in the three-dimensional case) ellipsoidal height. An EllipsoidalCS shall have two or three gml:axis property elements; the number of associations shall equal the dimension of the CS.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
axis gml:axis (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCoordinateSystem
