Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: AbstractCoordinateSystemType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:IdentifiedObjectType
Containing Schema: coordinateSystems.xsd
Abstract True

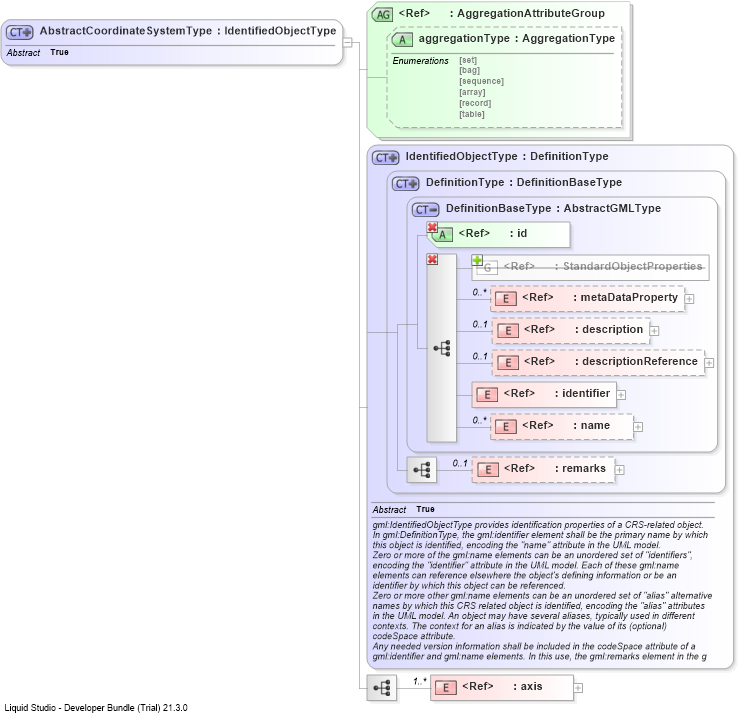

Collapse XSD Schema Diagram:
Drilldown into axisDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into IdentifiedObjectTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupXSD Diagram of AbstractCoordinateSystemType
Collapse XSD Schema Code:
<complexType name="AbstractCoordinateSystemType" abstract="true">
    <complexContent>
        <extension base="gml:IdentifiedObjectType">
            <sequence>
                <element ref="gml:axis" maxOccurs="unbounded" />
            </sequence>
            <attributeGroup ref="gml:AggregationAttributeGroup" />
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
axis gml:axis (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCoordinateSystem, gml:AffineCSType, gml:CartesianCSType, gml:CylindricalCSType, gml:EllipsoidalCSType, gml:LinearCSType, gml:ObliqueCartesianCSType, gml:PolarCSType, gml:SphericalCSType, gml:TemporalCSTypegml:TimeCSType, gml:UserDefinedCSType, gml:VerticalCSType,
