Definition Type: Element
Name: PolarCS
Namespace: http://www.opengis.net/gml/3.2
Type: gml:PolarCSType
Containing Schema: coordinateSystems.xsd
Abstract
Documentation:
gml:PolarCS ia s two-dimensional coordinate system in which position is specified by the distance from the origin and the angle between the line from the origin to a point and a reference direction. A PolarCS shall have two gml:axis property elements.

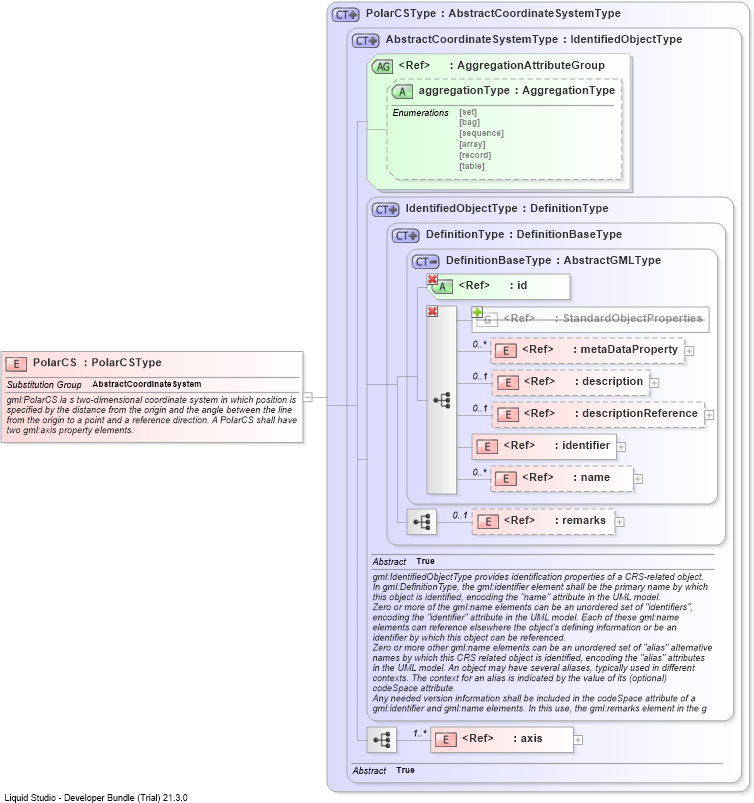

Collapse XSD Schema Diagram:
Drilldown into axisDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into IdentifiedObjectTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into AbstractCoordinateSystemTypeDrilldown into PolarCSTypeXSD Diagram of PolarCS
Collapse XSD Schema Code:
<element name="PolarCS" type="gml:PolarCSType" substitutionGroup="gml:AbstractCoordinateSystem">
    <annotation>
        <documentation>gml:PolarCS ia s two-dimensional coordinate system in which position is specified by the distance from the origin and the angle between the line from the origin to a point and a reference direction. A PolarCS shall have two gml:axis property elements.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
axis gml:axis (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCoordinateSystem
