Documentation for AIXM 5.1.1
Definition Type: Element
Name: UserDefinedCS
Namespace: http://www.opengis.net/gml/3.2
Type: gml:UserDefinedCSType
Containing Schema: coordinateSystems.xsd
Abstract
Documentation:
gml:UserDefinedCS is a two- or three-dimensional coordinate system that consists of any combination of coordinate axes not covered by any other coordinate system type. A UserDefinedCS shall have two or three gml:axis property elements; the number of property elements shall equal the dimension of the CS.

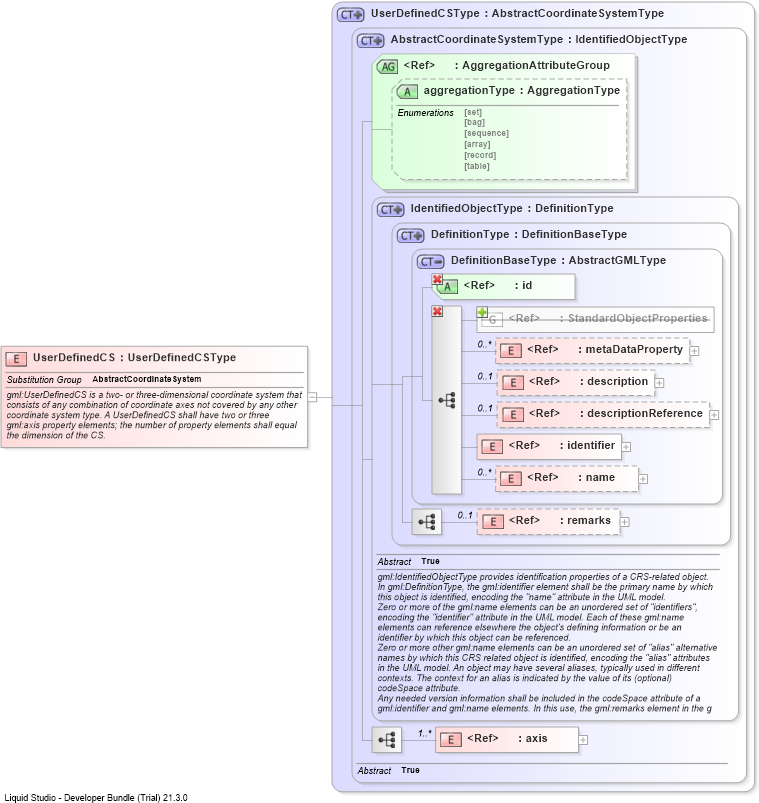

Collapse XSD Schema Diagram:
Drilldown into axisDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into IdentifiedObjectTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into AbstractCoordinateSystemTypeDrilldown into UserDefinedCSTypeXSD Diagram of UserDefinedCS
Collapse XSD Schema Code:
<element name="UserDefinedCS" type="gml:UserDefinedCSType" substitutionGroup="gml:AbstractCoordinateSystem">
    <annotation>
        <documentation>gml:UserDefinedCS is a two- or three-dimensional coordinate system that consists of any combination of coordinate axes not covered by any other coordinate system type. A UserDefinedCS shall have two or three gml:axis property elements; the number of property elements shall equal the dimension of the CS.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
axis gml:axis (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCoordinateSystem
