Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: EllipsoidPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: datums.xsd
Abstract
Documentation:
gml:EllipsoidPropertyType is a property type for association roles to an ellipsoid, either referencing or containing the definition of that ellipsoid.

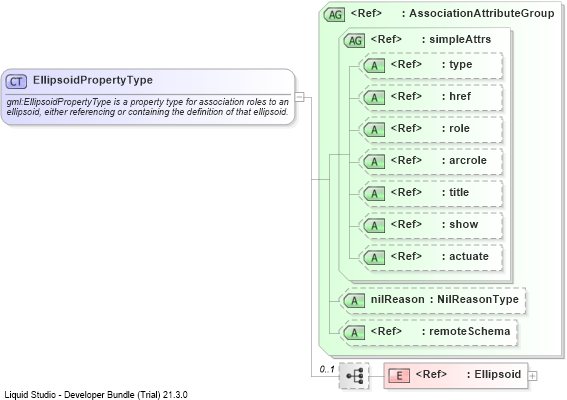

Collapse XSD Schema Diagram:
Drilldown into EllipsoidDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of EllipsoidPropertyType
Collapse XSD Schema Code:
<complexType name="EllipsoidPropertyType">
    <annotation>
        <documentation>gml:EllipsoidPropertyType is a property type for association roles to an ellipsoid, either referencing or containing the definition of that ellipsoid.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:Ellipsoid" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Ellipsoid gml:Ellipsoid (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:ellipsoid, gml:ellipsoidRef, gml:usesEllipsoid
