Definition Type: ComplexType
Name: EnRouteSegmentPointType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractSegmentPointType
Containing Schema: AIXM_Features.xsd
Abstract

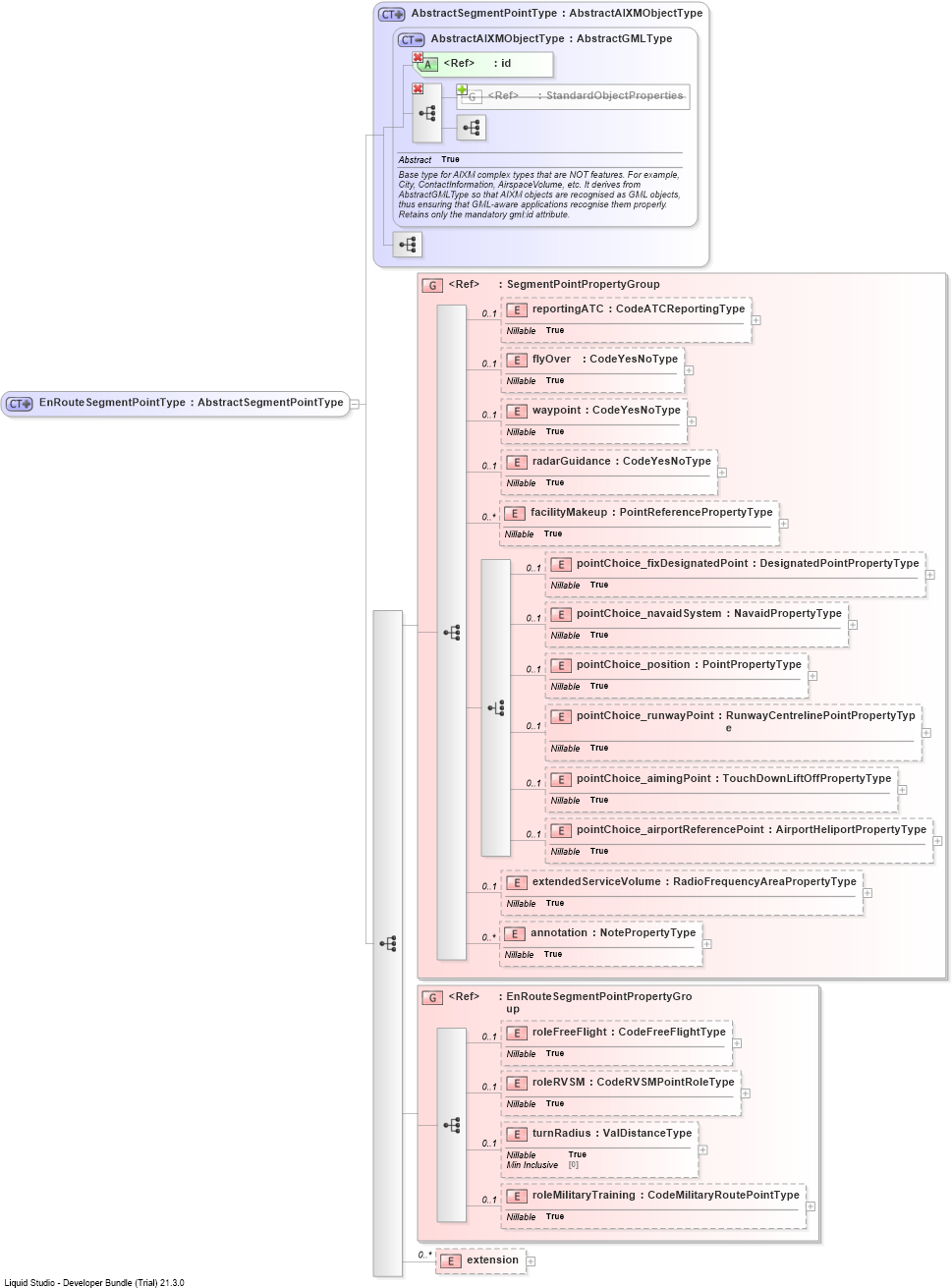

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into roleMilitaryTrainingDrilldown into turnRadiusDrilldown into roleRVSMDrilldown into roleFreeFlightDrilldown into EnRouteSegmentPointPropertyGroupDrilldown into annotationDrilldown into extendedServiceVolumeDrilldown into pointChoice_airportReferencePointDrilldown into pointChoice_aimingPointDrilldown into pointChoice_runwayPointDrilldown into pointChoice_positionDrilldown into pointChoice_navaidSystemDrilldown into pointChoice_fixDesignatedPointDrilldown into facilityMakeupDrilldown into radarGuidanceDrilldown into waypointDrilldown into flyOverDrilldown into reportingATCDrilldown into SegmentPointPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into AbstractSegmentPointTypeXSD Diagram of EnRouteSegmentPointType
Collapse XSD Schema Code:
<complexType name="EnRouteSegmentPointType">
    <complexContent>
        <extension base="aixm:AbstractSegmentPointType">
            <sequence>
                <group ref="aixm:SegmentPointPropertyGroup" />
                <group ref="aixm:EnRouteSegmentPointPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractSegmentPointExtension" />
                            <element ref="aixm:AbstractEnRouteSegmentPointExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
reportingATC aixm:reportingATC 0 (1)
flyOver aixm:flyOver 0 (1)
waypoint aixm:waypoint 0 (1)
radarGuidance aixm:radarGuidance 0 (1)
facilityMakeup aixm:facilityMakeup 0 unbounded
pointChoice_fixDesignatedPoint aixm:pointChoice_fixDesignatedPoint 0 (1)
pointChoice_navaidSystem aixm:pointChoice_navaidSystem 0 (1)
pointChoice_position aixm:pointChoice_position 0 (1)
pointChoice_runwayPoint aixm:pointChoice_runwayPoint 0 (1)
pointChoice_aimingPoint aixm:pointChoice_aimingPoint 0 (1)
pointChoice_airportReferencePoint aixm:pointChoice_airportReferencePoint 0 (1)
extendedServiceVolume aixm:extendedServiceVolume 0 1
annotation aixm:annotation 0 unbounded
roleFreeFlight aixm:roleFreeFlight 0 (1)
roleRVSM aixm:roleRVSM 0 (1)
turnRadius aixm:turnRadius 0 (1)
roleMilitaryTraining aixm:roleMilitaryTraining 0 (1)
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:SegmentPointPropertyGroup (1) (1)
<xs:group> aixm:EnRouteSegmentPointPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:EnRouteSegmentPoint
