Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: FASDataBlockType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMObjectType
Containing Schema: AIXM_Features.xsd
Abstract

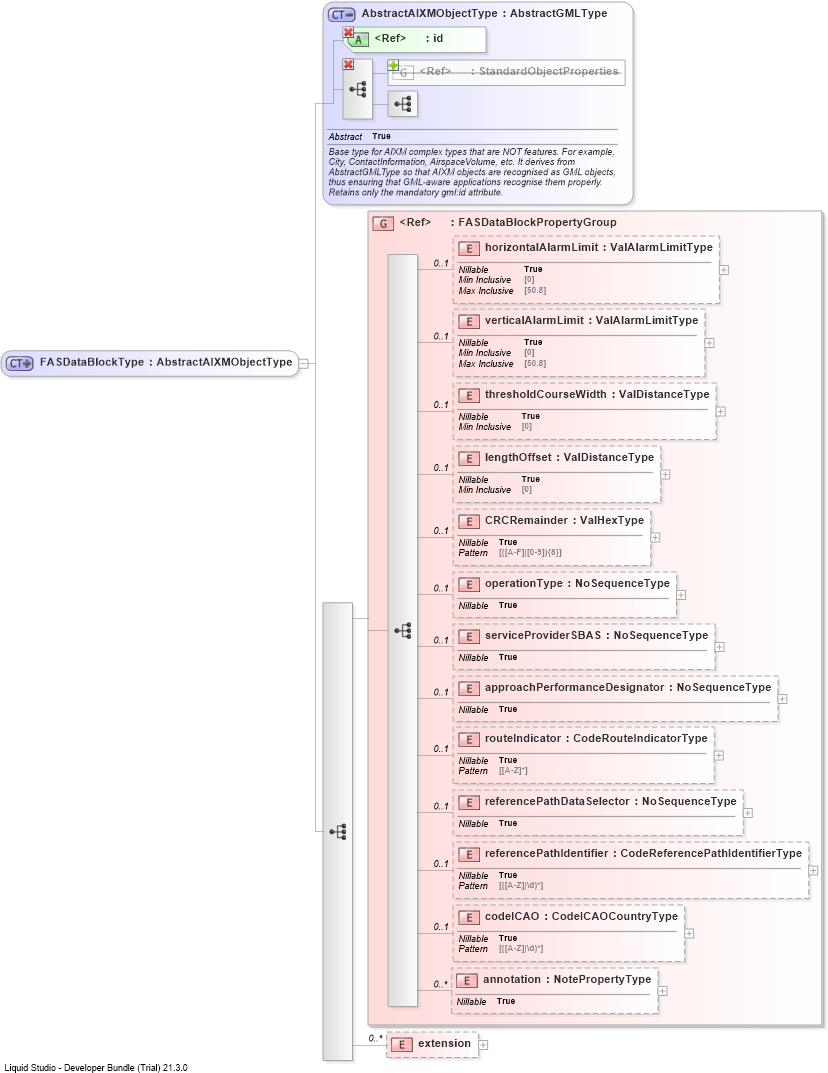

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into codeICAODrilldown into referencePathIdentifierDrilldown into referencePathDataSelectorDrilldown into routeIndicatorDrilldown into approachPerformanceDesignatorDrilldown into serviceProviderSBASDrilldown into operationTypeDrilldown into CRCRemainderDrilldown into lengthOffsetDrilldown into thresholdCourseWidthDrilldown into verticalAlarmLimitDrilldown into horizontalAlarmLimitDrilldown into FASDataBlockPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeXSD Diagram of FASDataBlockType
Collapse XSD Schema Code:
<complexType name="FASDataBlockType">
    <complexContent>
        <extension base="aixm:AbstractAIXMObjectType">
            <sequence>
                <group ref="aixm:FASDataBlockPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractFASDataBlockExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
horizontalAlarmLimit aixm:horizontalAlarmLimit 0 (1)
verticalAlarmLimit aixm:verticalAlarmLimit 0 (1)
thresholdCourseWidth aixm:thresholdCourseWidth 0 (1)
lengthOffset aixm:lengthOffset 0 (1)
CRCRemainder aixm:CRCRemainder 0 (1)
operationType aixm:operationType 0 (1)
serviceProviderSBAS aixm:serviceProviderSBAS 0 (1)
approachPerformanceDesignator aixm:approachPerformanceDesignator 0 (1)
routeIndicator aixm:routeIndicator 0 (1)
referencePathDataSelector aixm:referencePathDataSelector 0 (1)
referencePathIdentifier aixm:referencePathIdentifier 0 (1)
codeICAO aixm:codeICAO 0 (1)
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:FASDataBlockPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:FASDataBlock
