Docs for schema item GroundTrafficControlServicePropertyGroup in AIXM 5.1.1

Documentation for AIXM 5.1.1

Definition Type:	Group
Name:	GroundTrafficControlServicePropertyGroup
Namespace:	http://www.aixm.aero/schema/5.1.1
Containing Schema:	AIXM_Features.xsd

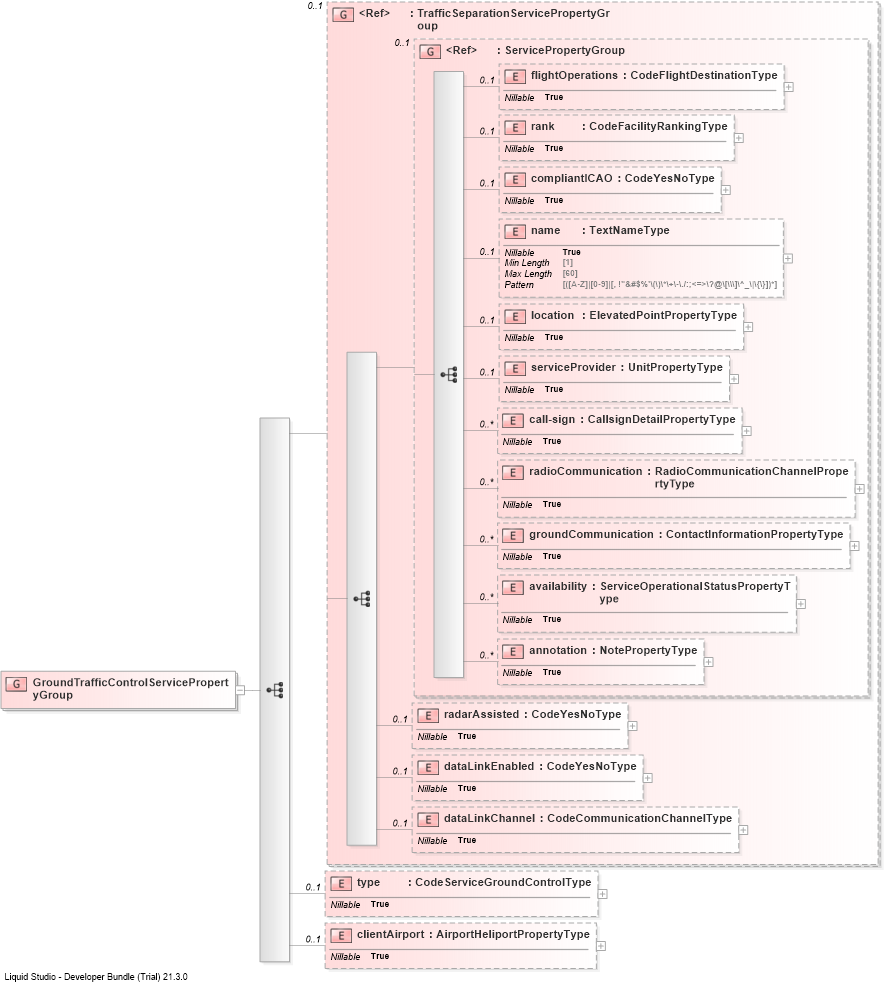

XSD Schema Diagram:

XSD Diagram of GroundTrafficControlServicePropertyGroup

XSD Schema Code:

<group name="GroundTrafficControlServicePropertyGroup">
    <sequence>
        <group ref="aixm:TrafficSeparationServicePropertyGroup" minOccurs="0" />
        <element name="type" type="aixm:CodeServiceGroundControlType" nillable="true" minOccurs="0" />
        <element name="clientAirport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
    </sequence>
</group>

Child Elements:

Name	Type	Min Occurs	Max Occurs
flightOperations	aixm:flightOperations	0	(1)
rank	aixm:rank	0	(1)
compliantICAO	aixm:compliantICAO	0	(1)
name	aixm:name	0	(1)
location	aixm:location	0	1
serviceProvider	aixm:serviceProvider	0	1
call-sign	aixm:call-sign	0	unbounded
radioCommunication	aixm:radioCommunication	0	unbounded
groundCommunication	aixm:groundCommunication	0	unbounded
availability	aixm:availability	0	unbounded
annotation	aixm:annotation	0	unbounded
radarAssisted	aixm:radarAssisted	0	(1)
dataLinkEnabled	aixm:dataLinkEnabled	0	(1)
dataLinkChannel	aixm:dataLinkChannel	0	(1)
type	aixm:type	0	(1)
clientAirport	aixm:clientAirport	0	1
<xs:group>	aixm:TrafficSeparationServicePropertyGroup	0	(1)
<xs:group>	aixm:ServicePropertyGroup	0	(1)
