Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: HoldingAssessmentTimeSliceType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMTimeSliceType
Containing Schema: AIXM_Features.xsd
Abstract
Collapse XSD Schema Diagram:

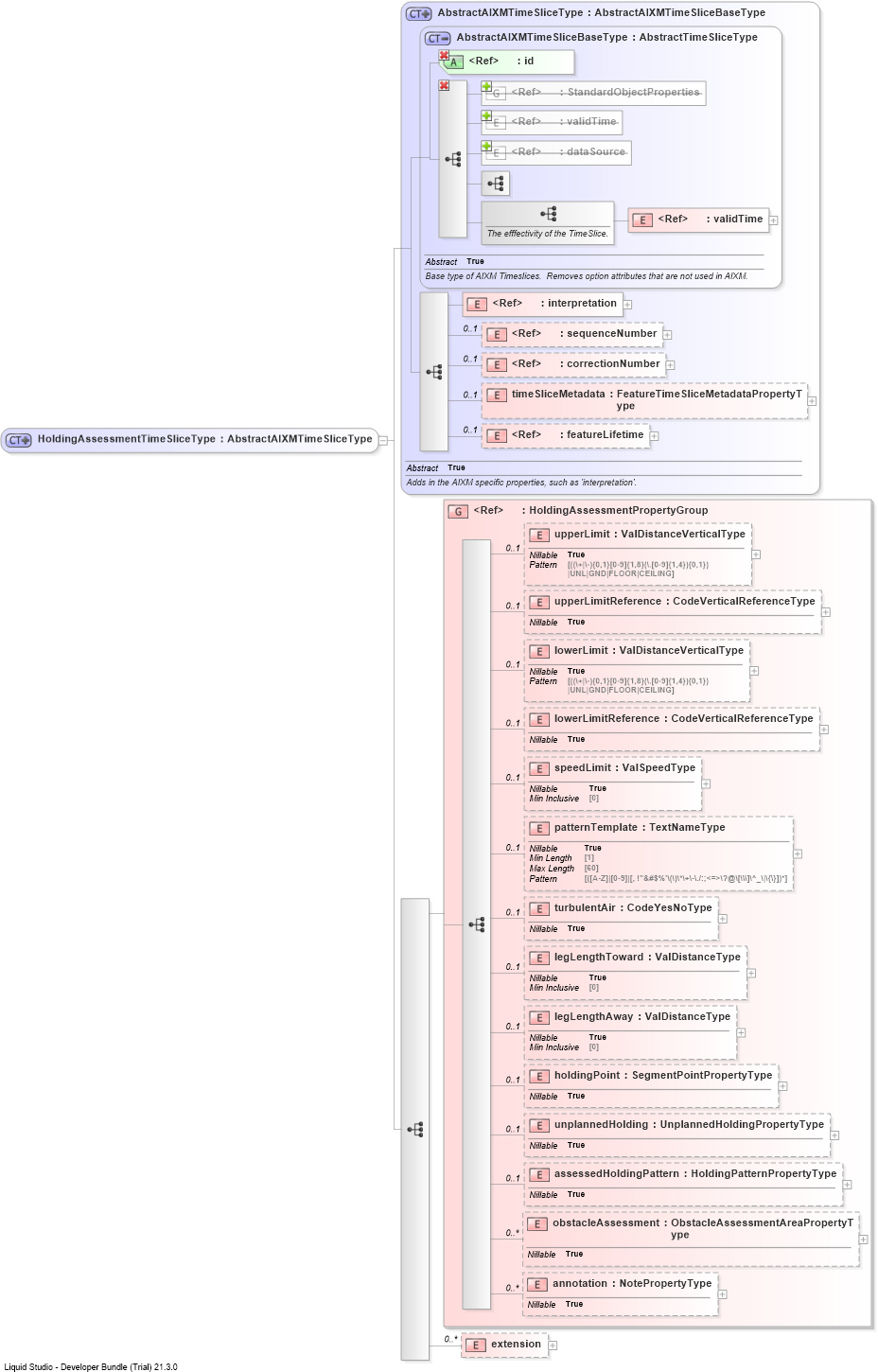

Drilldown into extensionDrilldown into annotationDrilldown into obstacleAssessmentDrilldown into assessedHoldingPatternDrilldown into unplannedHoldingDrilldown into holdingPointDrilldown into legLengthAwayDrilldown into legLengthTowardDrilldown into turbulentAirDrilldown into patternTemplateDrilldown into speedLimitDrilldown into lowerLimitReferenceDrilldown into lowerLimitDrilldown into upperLimitReferenceDrilldown into upperLimitDrilldown into HoldingAssessmentPropertyGroupDrilldown into featureLifetimeDrilldown into timeSliceMetadataDrilldown into correctionNumberDrilldown into sequenceNumberDrilldown into interpretationDrilldown into validTimeDrilldown into dataSourceDrilldown into validTimeDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMTimeSliceBaseTypeDrilldown into AbstractAIXMTimeSliceTypeXSD Diagram of HoldingAssessmentTimeSliceType
Collapse XSD Schema Code:
<complexType name="HoldingAssessmentTimeSliceType">
    <complexContent>
        <extension base="aixm:AbstractAIXMTimeSliceType">
            <sequence>
                <group ref="aixm:HoldingAssessmentPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <sequence>
                            <element ref="aixm:AbstractHoldingAssessmentExtension" />
                        </sequence>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
validTime gml:validTime (1) (1)
interpretation aixm:interpretation (1) (1)
sequenceNumber aixm:sequenceNumber 0 (1)
correctionNumber aixm:correctionNumber 0 (1)
timeSliceMetadata aixm:timeSliceMetadata 0 (1)
featureLifetime aixm:featureLifetime 0 (1)
upperLimit aixm:upperLimit 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
lowerLimit aixm:lowerLimit 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
speedLimit aixm:speedLimit 0 (1)
patternTemplate aixm:patternTemplate 0 (1)
turbulentAir aixm:turbulentAir 0 (1)
legLengthToward aixm:legLengthToward 0 (1)
legLengthAway aixm:legLengthAway 0 (1)
holdingPoint aixm:holdingPoint 0 1
unplannedHolding aixm:unplannedHolding 0 1
assessedHoldingPattern aixm:assessedHoldingPattern 0 1
obstacleAssessment aixm:obstacleAssessment 0 unbounded
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:HoldingAssessmentPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:HoldingAssessmentTimeSlice
