Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: AbstractAIXMTimeSliceBaseType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: gml:AbstractTimeSliceType
Containing Schema: AIXM_AbstractGML_ObjectTypes.xsd
Abstract True
Documentation:
Base type of AIXM Timeslices.  Removes option attributes that are not used in AIXM.

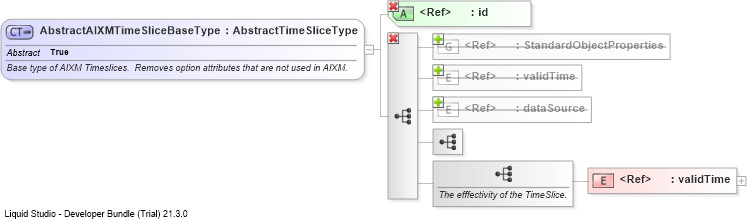

Collapse XSD Schema Diagram:
Drilldown into validTimeDrilldown into dataSourceDrilldown into validTimeDrilldown into StandardObjectPropertiesDrilldown into idXSD Diagram of AbstractAIXMTimeSliceBaseType
Collapse XSD Schema Code:
<complexType name="AbstractAIXMTimeSliceBaseType" abstract="true">
    <annotation>
        <documentation>Base type of AIXM Timeslices.  Removes option attributes that are not used in AIXM.</documentation>
    </annotation>
    <complexContent>
        <restriction base="gml:AbstractTimeSliceType">
            <sequence>
                <sequence />
                <sequence>
                    <annotation>
                        <documentation>The efffectivity of the TimeSlice.</documentation>
                    </annotation>
                    <element ref="gml:validTime" />
                </sequence>
            </sequence>
            <attribute ref="gml:id" use="required" />
        </restriction>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
validTime gml:validTime (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:AbstractAIXMTimeSliceType
