Definition Type: ComplexType
Name: HoldingPatternTimeSliceType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMTimeSliceType
Containing Schema: AIXM_Features.xsd
Abstract

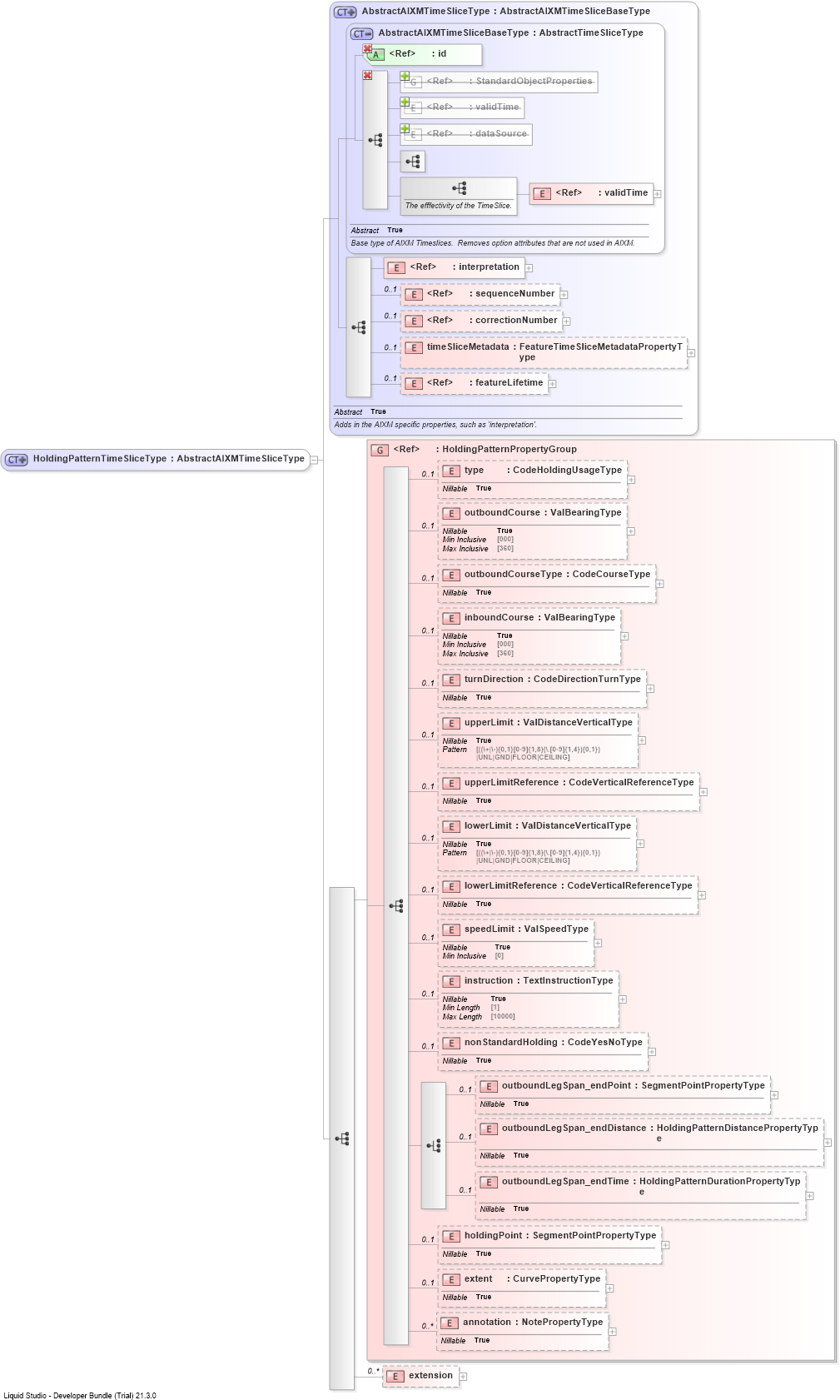

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into extentDrilldown into holdingPointDrilldown into outboundLegSpan_endTimeDrilldown into outboundLegSpan_endDistanceDrilldown into outboundLegSpan_endPointDrilldown into nonStandardHoldingDrilldown into instructionDrilldown into speedLimitDrilldown into lowerLimitReferenceDrilldown into lowerLimitDrilldown into upperLimitReferenceDrilldown into upperLimitDrilldown into turnDirectionDrilldown into inboundCourseDrilldown into outboundCourseTypeDrilldown into outboundCourseDrilldown into typeDrilldown into HoldingPatternPropertyGroupDrilldown into featureLifetimeDrilldown into timeSliceMetadataDrilldown into correctionNumberDrilldown into sequenceNumberDrilldown into interpretationDrilldown into validTimeDrilldown into dataSourceDrilldown into validTimeDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMTimeSliceBaseTypeDrilldown into AbstractAIXMTimeSliceTypeXSD Diagram of HoldingPatternTimeSliceType
Collapse XSD Schema Code:
<complexType name="HoldingPatternTimeSliceType">
    <complexContent>
        <extension base="aixm:AbstractAIXMTimeSliceType">
            <sequence>
                <group ref="aixm:HoldingPatternPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <sequence>
                            <element ref="aixm:AbstractHoldingPatternExtension" />
                        </sequence>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
validTime gml:validTime (1) (1)
interpretation aixm:interpretation (1) (1)
sequenceNumber aixm:sequenceNumber 0 (1)
correctionNumber aixm:correctionNumber 0 (1)
timeSliceMetadata aixm:timeSliceMetadata 0 (1)
featureLifetime aixm:featureLifetime 0 (1)
type aixm:type 0 (1)
outboundCourse aixm:outboundCourse 0 (1)
outboundCourseType aixm:outboundCourseType 0 (1)
inboundCourse aixm:inboundCourse 0 (1)
turnDirection aixm:turnDirection 0 (1)
upperLimit aixm:upperLimit 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
lowerLimit aixm:lowerLimit 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
speedLimit aixm:speedLimit 0 (1)
instruction aixm:instruction 0 (1)
nonStandardHolding aixm:nonStandardHolding 0 (1)
outboundLegSpan_endPoint aixm:outboundLegSpan_endPoint 0 (1)
outboundLegSpan_endDistance aixm:outboundLegSpan_endDistance 0 (1)
outboundLegSpan_endTime aixm:outboundLegSpan_endTime 0 (1)
holdingPoint aixm:holdingPoint 0 1
extent aixm:extent 0 1
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:HoldingPatternPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:HoldingPatternTimeSlice
