Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: MarkerBeaconTimeSliceType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMTimeSliceType
Containing Schema: AIXM_Features.xsd
Abstract

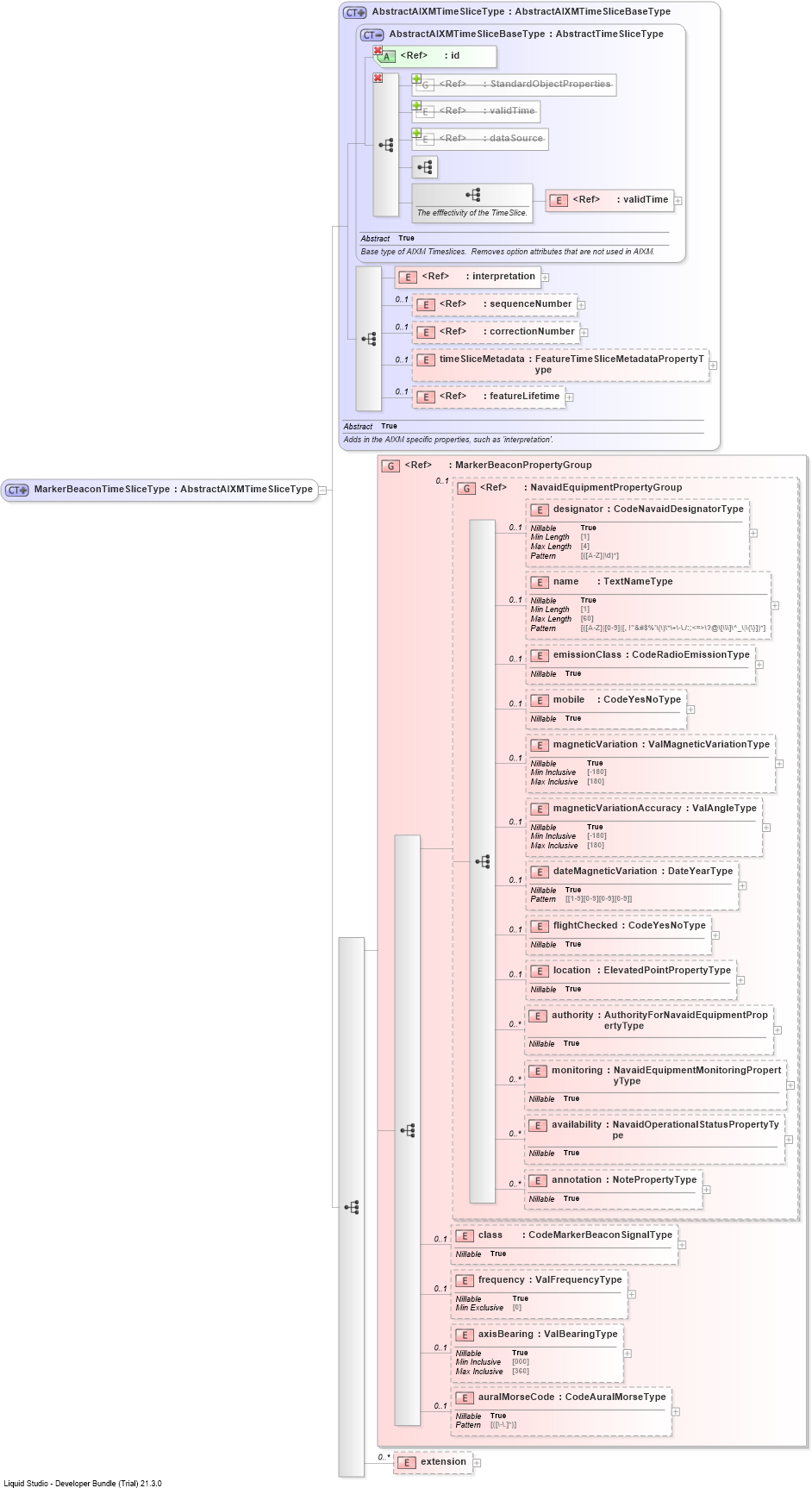

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into auralMorseCodeDrilldown into axisBearingDrilldown into frequencyDrilldown into classDrilldown into annotationDrilldown into availabilityDrilldown into monitoringDrilldown into authorityDrilldown into locationDrilldown into flightCheckedDrilldown into dateMagneticVariationDrilldown into magneticVariationAccuracyDrilldown into magneticVariationDrilldown into mobileDrilldown into emissionClassDrilldown into nameDrilldown into designatorDrilldown into NavaidEquipmentPropertyGroupDrilldown into MarkerBeaconPropertyGroupDrilldown into featureLifetimeDrilldown into timeSliceMetadataDrilldown into correctionNumberDrilldown into sequenceNumberDrilldown into interpretationDrilldown into validTimeDrilldown into dataSourceDrilldown into validTimeDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMTimeSliceBaseTypeDrilldown into AbstractAIXMTimeSliceTypeXSD Diagram of MarkerBeaconTimeSliceType
Collapse XSD Schema Code:
<complexType name="MarkerBeaconTimeSliceType">
    <complexContent>
        <extension base="aixm:AbstractAIXMTimeSliceType">
            <sequence>
                <group ref="aixm:MarkerBeaconPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractMarkerBeaconExtension" />
                            <element ref="aixm:AbstractNavaidEquipmentExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
validTime gml:validTime (1) (1)
interpretation aixm:interpretation (1) (1)
sequenceNumber aixm:sequenceNumber 0 (1)
correctionNumber aixm:correctionNumber 0 (1)
timeSliceMetadata aixm:timeSliceMetadata 0 (1)
featureLifetime aixm:featureLifetime 0 (1)
designator aixm:designator 0 (1)
name aixm:name 0 (1)
emissionClass aixm:emissionClass 0 (1)
mobile aixm:mobile 0 (1)
magneticVariation aixm:magneticVariation 0 (1)
magneticVariationAccuracy aixm:magneticVariationAccuracy 0 (1)
dateMagneticVariation aixm:dateMagneticVariation 0 (1)
flightChecked aixm:flightChecked 0 (1)
location aixm:location 0 1
authority aixm:authority 0 unbounded
monitoring aixm:monitoring 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
class aixm:class 0 (1)
frequency aixm:frequency 0 (1)
axisBearing aixm:axisBearing 0 (1)
auralMorseCode aixm:auralMorseCode 0 (1)
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:MarkerBeaconPropertyGroup (1) (1)
<xs:group> aixm:NavaidEquipmentPropertyGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:MarkerBeaconTimeSlice
