Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: InstrumentApproachProcedureTimeSliceType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMTimeSliceType
Containing Schema: AIXM_Features.xsd
Abstract

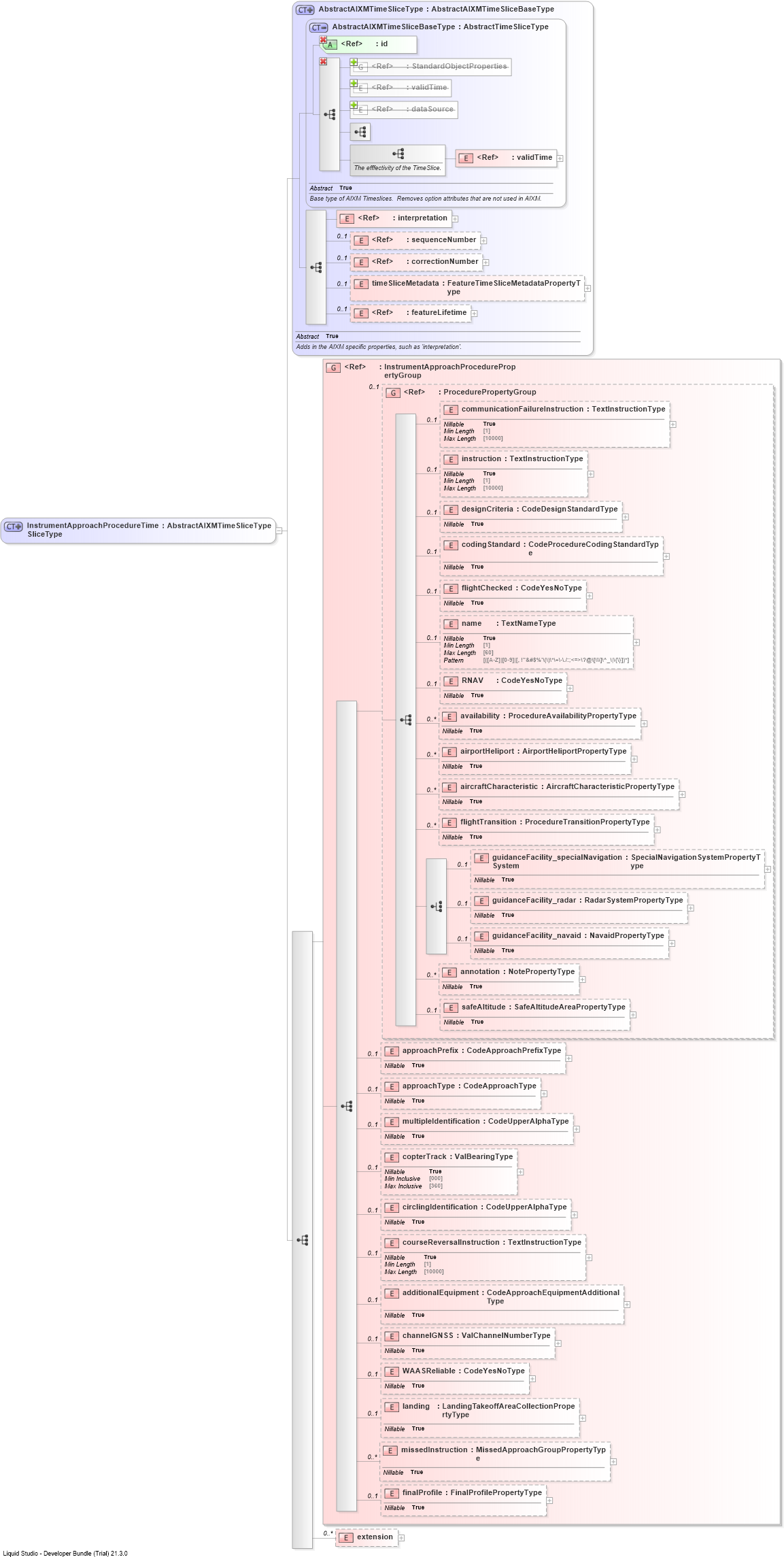

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into finalProfileDrilldown into missedInstructionDrilldown into landingDrilldown into WAASReliableDrilldown into channelGNSSDrilldown into additionalEquipmentDrilldown into courseReversalInstructionDrilldown into circlingIdentificationDrilldown into copterTrackDrilldown into multipleIdentificationDrilldown into approachTypeDrilldown into approachPrefixDrilldown into safeAltitudeDrilldown into annotationDrilldown into guidanceFacility_navaidDrilldown into guidanceFacility_radarDrilldown into guidanceFacility_specialNavigationSystemDrilldown into flightTransitionDrilldown into aircraftCharacteristicDrilldown into airportHeliportDrilldown into availabilityDrilldown into RNAVDrilldown into nameDrilldown into flightCheckedDrilldown into codingStandardDrilldown into designCriteriaDrilldown into instructionDrilldown into communicationFailureInstructionDrilldown into ProcedurePropertyGroupDrilldown into InstrumentApproachProcedurePropertyGroupDrilldown into featureLifetimeDrilldown into timeSliceMetadataDrilldown into correctionNumberDrilldown into sequenceNumberDrilldown into interpretationDrilldown into validTimeDrilldown into dataSourceDrilldown into validTimeDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMTimeSliceBaseTypeDrilldown into AbstractAIXMTimeSliceTypeXSD Diagram of InstrumentApproachProcedureTimeSliceType
Collapse XSD Schema Code:
<complexType name="InstrumentApproachProcedureTimeSliceType">
    <complexContent>
        <extension base="aixm:AbstractAIXMTimeSliceType">
            <sequence>
                <group ref="aixm:InstrumentApproachProcedurePropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractInstrumentApproachProcedureExtension" />
                            <element ref="aixm:AbstractProcedureExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
validTime gml:validTime (1) (1)
interpretation aixm:interpretation (1) (1)
sequenceNumber aixm:sequenceNumber 0 (1)
correctionNumber aixm:correctionNumber 0 (1)
timeSliceMetadata aixm:timeSliceMetadata 0 (1)
featureLifetime aixm:featureLifetime 0 (1)
communicationFailureInstruction aixm:communicationFailureInstruction 0 (1)
instruction aixm:instruction 0 (1)
designCriteria aixm:designCriteria 0 (1)
codingStandard aixm:codingStandard 0 (1)
flightChecked aixm:flightChecked 0 (1)
name aixm:name 0 (1)
RNAV aixm:RNAV 0 (1)
availability aixm:availability 0 unbounded
airportHeliport aixm:airportHeliport 0 unbounded
aircraftCharacteristic aixm:aircraftCharacteristic 0 unbounded
flightTransition aixm:flightTransition 0 unbounded
guidanceFacility_specialNavigationSystem aixm:guidanceFacility_specialNavigationSystem 0 (1)
guidanceFacility_radar aixm:guidanceFacility_radar 0 (1)
guidanceFacility_navaid aixm:guidanceFacility_navaid 0 (1)
annotation aixm:annotation 0 unbounded
safeAltitude aixm:safeAltitude 0 1
approachPrefix aixm:approachPrefix 0 (1)
approachType aixm:approachType 0 (1)
multipleIdentification aixm:multipleIdentification 0 (1)
copterTrack aixm:copterTrack 0 (1)
circlingIdentification aixm:circlingIdentification 0 (1)
courseReversalInstruction aixm:courseReversalInstruction 0 (1)
additionalEquipment aixm:additionalEquipment 0 (1)
channelGNSS aixm:channelGNSS 0 (1)
WAASReliable aixm:WAASReliable 0 (1)
landing aixm:landing 0 1
missedInstruction aixm:missedInstruction 0 unbounded
finalProfile aixm:finalProfile 0 1
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:InstrumentApproachProcedurePropertyGroup (1) (1)
<xs:group> aixm:ProcedurePropertyGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:InstrumentApproachProcedureTimeSlice
Documentation for AIXM 5.1.1
Generated using Liquid Studio - Developer Bundle (Trial) 21.3.0
