Definition Type: Group
Name: InstrumentApproachProcedurePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

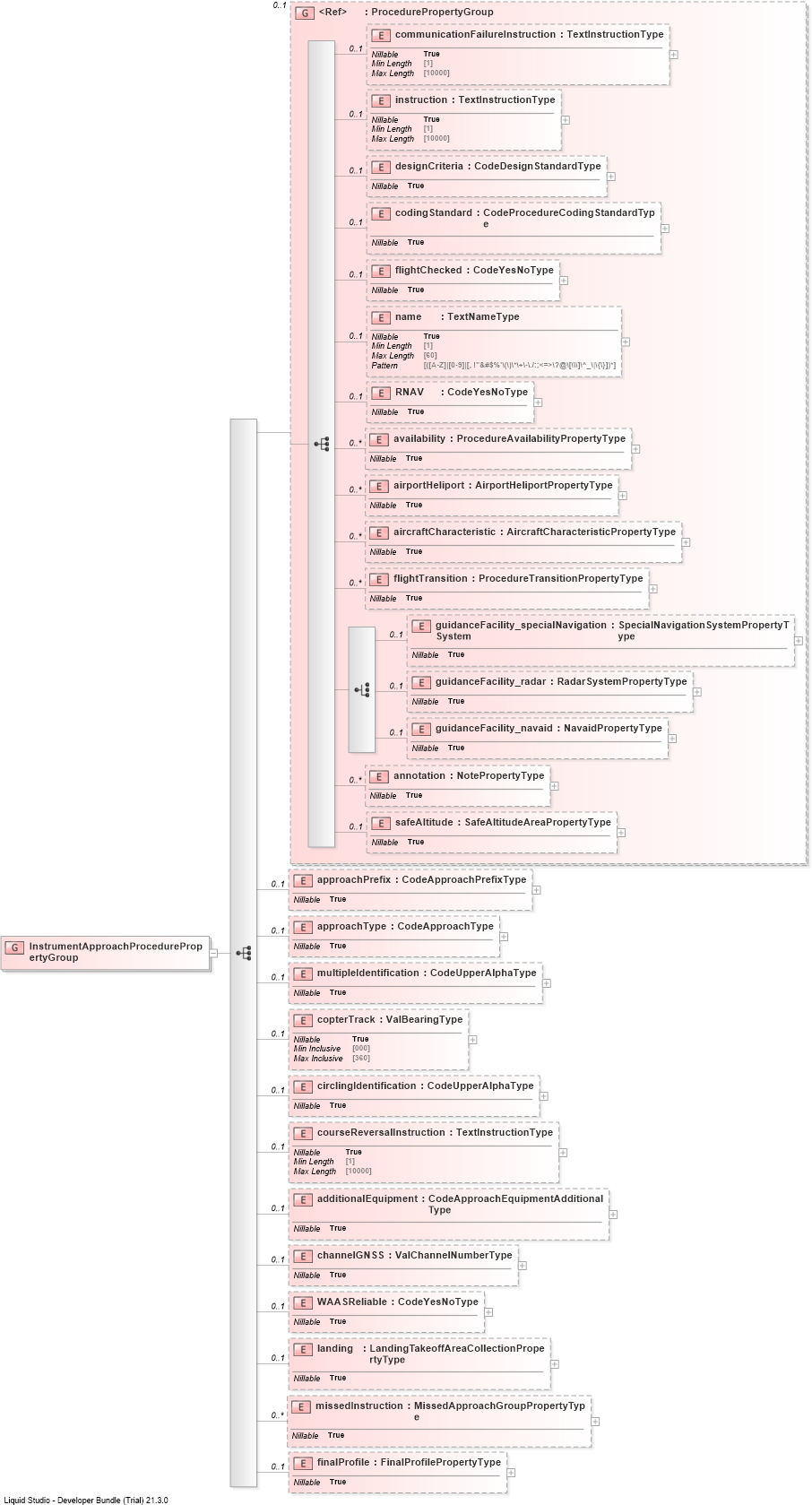

Collapse XSD Schema Diagram:
Drilldown into finalProfileDrilldown into missedInstructionDrilldown into landingDrilldown into WAASReliableDrilldown into channelGNSSDrilldown into additionalEquipmentDrilldown into courseReversalInstructionDrilldown into circlingIdentificationDrilldown into copterTrackDrilldown into multipleIdentificationDrilldown into approachTypeDrilldown into approachPrefixDrilldown into safeAltitudeDrilldown into annotationDrilldown into guidanceFacility_navaidDrilldown into guidanceFacility_radarDrilldown into guidanceFacility_specialNavigationSystemDrilldown into flightTransitionDrilldown into aircraftCharacteristicDrilldown into airportHeliportDrilldown into availabilityDrilldown into RNAVDrilldown into nameDrilldown into flightCheckedDrilldown into codingStandardDrilldown into designCriteriaDrilldown into instructionDrilldown into communicationFailureInstructionDrilldown into ProcedurePropertyGroupXSD Diagram of InstrumentApproachProcedurePropertyGroup
Collapse XSD Schema Code:
<group name="InstrumentApproachProcedurePropertyGroup">
    <sequence>
        <group ref="aixm:ProcedurePropertyGroup" minOccurs="0" />
        <element name="approachPrefix" type="aixm:CodeApproachPrefixType" nillable="true" minOccurs="0" />
        <element name="approachType" type="aixm:CodeApproachType" nillable="true" minOccurs="0" />
        <element name="multipleIdentification" type="aixm:CodeUpperAlphaType" nillable="true" minOccurs="0" />
        <element name="copterTrack" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="circlingIdentification" type="aixm:CodeUpperAlphaType" nillable="true" minOccurs="0" />
        <element name="courseReversalInstruction" type="aixm:TextInstructionType" nillable="true" minOccurs="0" />
        <element name="additionalEquipment" type="aixm:CodeApproachEquipmentAdditionalType" nillable="true" minOccurs="0" />
        <element name="channelGNSS" type="aixm:ValChannelNumberType" nillable="true" minOccurs="0" />
        <element name="WAASReliable" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="landing" type="aixm:LandingTakeoffAreaCollectionPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="missedInstruction" type="aixm:MissedApproachGroupPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="finalProfile" type="aixm:FinalProfilePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
communicationFailureInstruction aixm:communicationFailureInstruction 0 (1)
instruction aixm:instruction 0 (1)
designCriteria aixm:designCriteria 0 (1)
codingStandard aixm:codingStandard 0 (1)
flightChecked aixm:flightChecked 0 (1)
name aixm:name 0 (1)
RNAV aixm:RNAV 0 (1)
availability aixm:availability 0 unbounded
airportHeliport aixm:airportHeliport 0 unbounded
aircraftCharacteristic aixm:aircraftCharacteristic 0 unbounded
flightTransition aixm:flightTransition 0 unbounded
guidanceFacility_specialNavigationSystem aixm:guidanceFacility_specialNavigationSystem 0 (1)
guidanceFacility_radar aixm:guidanceFacility_radar 0 (1)
guidanceFacility_navaid aixm:guidanceFacility_navaid 0 (1)
annotation aixm:annotation 0 unbounded
safeAltitude aixm:safeAltitude 0 1
approachPrefix aixm:approachPrefix 0 (1)
approachType aixm:approachType 0 (1)
multipleIdentification aixm:multipleIdentification 0 (1)
copterTrack aixm:copterTrack 0 (1)
circlingIdentification aixm:circlingIdentification 0 (1)
courseReversalInstruction aixm:courseReversalInstruction 0 (1)
additionalEquipment aixm:additionalEquipment 0 (1)
channelGNSS aixm:channelGNSS 0 (1)
WAASReliable aixm:WAASReliable 0 (1)
landing aixm:landing 0 1
missedInstruction aixm:missedInstruction 0 unbounded
finalProfile aixm:finalProfile 0 1
<xs:group> aixm:ProcedurePropertyGroup 0 (1)
