Documentation for AIXM 5.1.1
Definition Type: Element
Name: FinalLegTimeSlice
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:FinalLegTimeSliceType
Containing Schema: AIXM_Features.xsd
Abstract

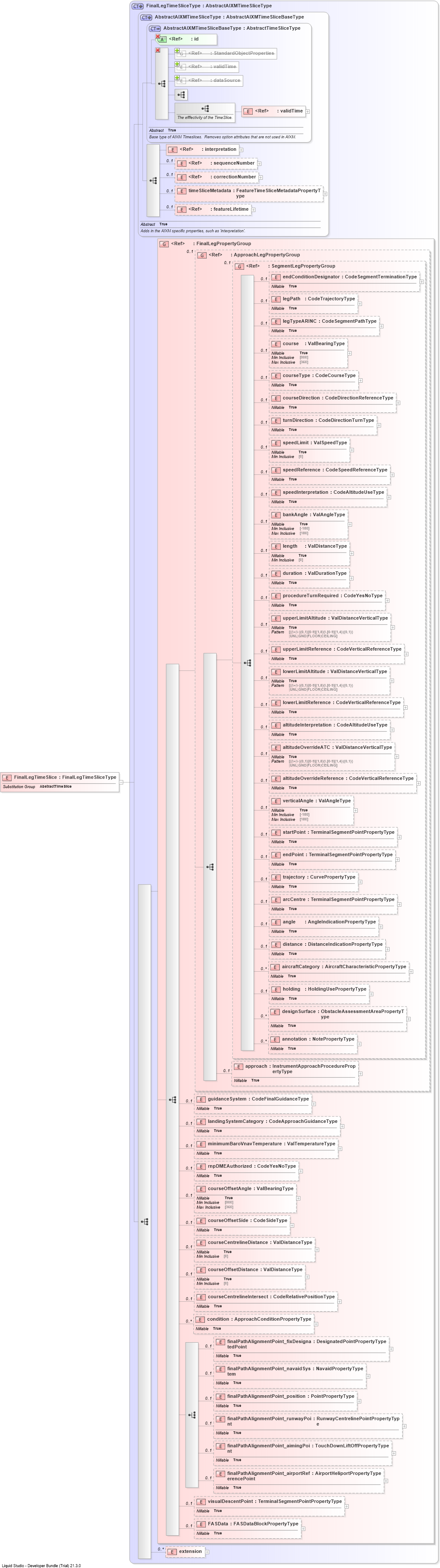

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into FASDataDrilldown into visualDescentPointDrilldown into finalPathAlignmentPoint_airportReferencePointDrilldown into finalPathAlignmentPoint_aimingPointDrilldown into finalPathAlignmentPoint_runwayPointDrilldown into finalPathAlignmentPoint_positionDrilldown into finalPathAlignmentPoint_navaidSystemDrilldown into finalPathAlignmentPoint_fixDesignatedPointDrilldown into conditionDrilldown into courseCentrelineIntersectDrilldown into courseOffsetDistanceDrilldown into courseCentrelineDistanceDrilldown into courseOffsetSideDrilldown into courseOffsetAngleDrilldown into rnpDMEAuthorizedDrilldown into minimumBaroVnavTemperatureDrilldown into landingSystemCategoryDrilldown into guidanceSystemDrilldown into approachDrilldown into annotationDrilldown into designSurfaceDrilldown into holdingDrilldown into aircraftCategoryDrilldown into distanceDrilldown into angleDrilldown into arcCentreDrilldown into trajectoryDrilldown into endPointDrilldown into startPointDrilldown into verticalAngleDrilldown into altitudeOverrideReferenceDrilldown into altitudeOverrideATCDrilldown into altitudeInterpretationDrilldown into lowerLimitReferenceDrilldown into lowerLimitAltitudeDrilldown into upperLimitReferenceDrilldown into upperLimitAltitudeDrilldown into procedureTurnRequiredDrilldown into durationDrilldown into lengthDrilldown into bankAngleDrilldown into speedInterpretationDrilldown into speedReferenceDrilldown into speedLimitDrilldown into turnDirectionDrilldown into courseDirectionDrilldown into courseTypeDrilldown into courseDrilldown into legTypeARINCDrilldown into legPathDrilldown into endConditionDesignatorDrilldown into SegmentLegPropertyGroupDrilldown into ApproachLegPropertyGroupDrilldown into FinalLegPropertyGroupDrilldown into featureLifetimeDrilldown into timeSliceMetadataDrilldown into correctionNumberDrilldown into sequenceNumberDrilldown into interpretationDrilldown into validTimeDrilldown into dataSourceDrilldown into validTimeDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMTimeSliceBaseTypeDrilldown into AbstractAIXMTimeSliceTypeDrilldown into FinalLegTimeSliceTypeXSD Diagram of FinalLegTimeSlice
Collapse XSD Schema Code:
<element name="FinalLegTimeSlice" type="aixm:FinalLegTimeSliceType" substitutionGroup="gml:AbstractTimeSlice" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
validTime gml:validTime (1) (1)
interpretation aixm:interpretation (1) (1)
sequenceNumber aixm:sequenceNumber 0 (1)
correctionNumber aixm:correctionNumber 0 (1)
timeSliceMetadata aixm:timeSliceMetadata 0 (1)
featureLifetime aixm:featureLifetime 0 (1)
endConditionDesignator aixm:endConditionDesignator 0 (1)
legPath aixm:legPath 0 (1)
legTypeARINC aixm:legTypeARINC 0 (1)
course aixm:course 0 (1)
courseType aixm:courseType 0 (1)
courseDirection aixm:courseDirection 0 (1)
turnDirection aixm:turnDirection 0 (1)
speedLimit aixm:speedLimit 0 (1)
speedReference aixm:speedReference 0 (1)
speedInterpretation aixm:speedInterpretation 0 (1)
bankAngle aixm:bankAngle 0 (1)
length aixm:length 0 (1)
duration aixm:duration 0 (1)
procedureTurnRequired aixm:procedureTurnRequired 0 (1)
upperLimitAltitude aixm:upperLimitAltitude 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
lowerLimitAltitude aixm:lowerLimitAltitude 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
altitudeInterpretation aixm:altitudeInterpretation 0 (1)
altitudeOverrideATC aixm:altitudeOverrideATC 0 (1)
altitudeOverrideReference aixm:altitudeOverrideReference 0 (1)
verticalAngle aixm:verticalAngle 0 (1)
startPoint aixm:startPoint 0 1
endPoint aixm:endPoint 0 1
trajectory aixm:trajectory 0 1
arcCentre aixm:arcCentre 0 1
angle aixm:angle 0 1
distance aixm:distance 0 1
aircraftCategory aixm:aircraftCategory 0 unbounded
holding aixm:holding 0 1
designSurface aixm:designSurface 0 unbounded
annotation aixm:annotation 0 unbounded
approach aixm:approach 0 1
guidanceSystem aixm:guidanceSystem 0 (1)
landingSystemCategory aixm:landingSystemCategory 0 (1)
minimumBaroVnavTemperature aixm:minimumBaroVnavTemperature 0 (1)
rnpDMEAuthorized aixm:rnpDMEAuthorized 0 (1)
courseOffsetAngle aixm:courseOffsetAngle 0 (1)
courseOffsetSide aixm:courseOffsetSide 0 (1)
courseCentrelineDistance aixm:courseCentrelineDistance 0 (1)
courseOffsetDistance aixm:courseOffsetDistance 0 (1)
courseCentrelineIntersect aixm:courseCentrelineIntersect 0 (1)
condition aixm:condition 0 unbounded
finalPathAlignmentPoint_fixDesignatedPoint aixm:finalPathAlignmentPoint_fixDesignatedPoint 0 (1)
finalPathAlignmentPoint_navaidSystem aixm:finalPathAlignmentPoint_navaidSystem 0 (1)
finalPathAlignmentPoint_position aixm:finalPathAlignmentPoint_position 0 (1)
finalPathAlignmentPoint_runwayPoint aixm:finalPathAlignmentPoint_runwayPoint 0 (1)
finalPathAlignmentPoint_aimingPoint aixm:finalPathAlignmentPoint_aimingPoint 0 (1)
finalPathAlignmentPoint_airportReferencePoint aixm:finalPathAlignmentPoint_airportReferencePoint 0 (1)
visualDescentPoint aixm:visualDescentPoint 0 1
FASData aixm:FASData 0 1
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:FinalLegPropertyGroup (1) (1)
<xs:group> aixm:ApproachLegPropertyGroup 0 (1)
<xs:group> aixm:SegmentLegPropertyGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:AbstractTimeSlice
