Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: DesignatedPointTimeSliceType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMTimeSliceType
Containing Schema: AIXM_Features.xsd
Abstract

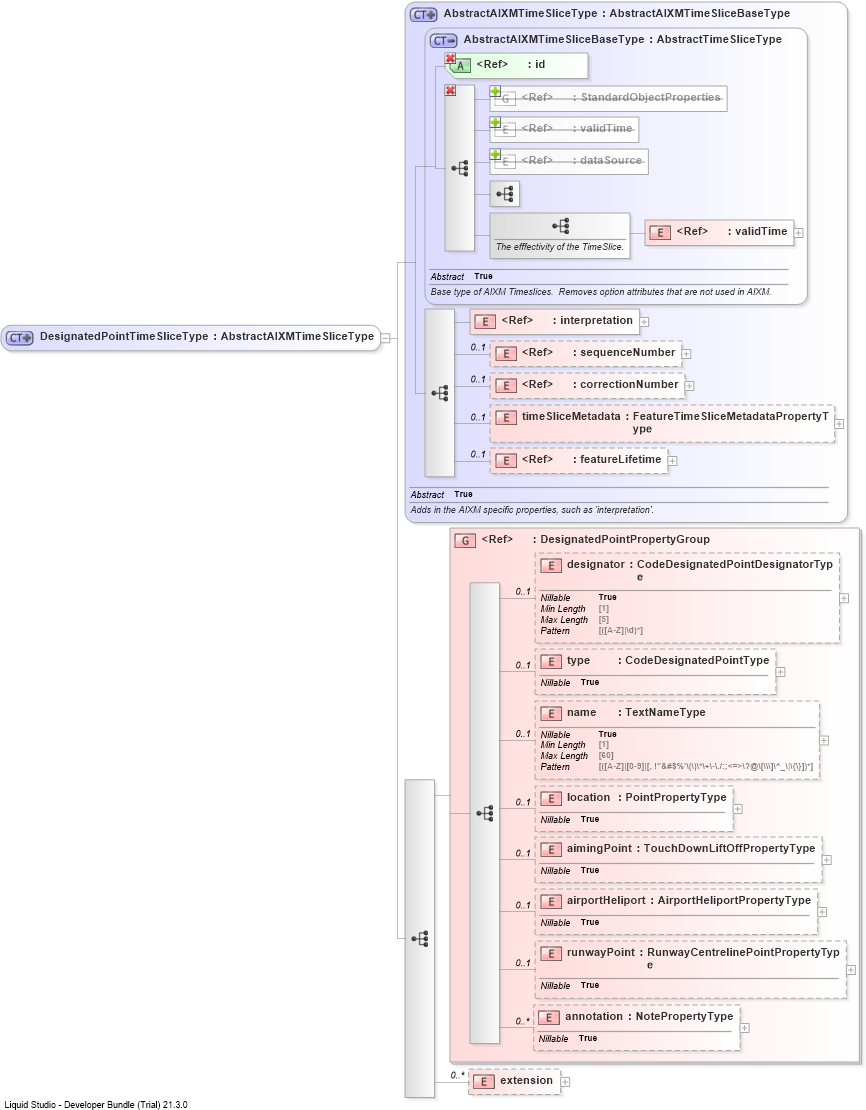

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into runwayPointDrilldown into airportHeliportDrilldown into aimingPointDrilldown into locationDrilldown into nameDrilldown into typeDrilldown into designatorDrilldown into DesignatedPointPropertyGroupDrilldown into featureLifetimeDrilldown into timeSliceMetadataDrilldown into correctionNumberDrilldown into sequenceNumberDrilldown into interpretationDrilldown into validTimeDrilldown into dataSourceDrilldown into validTimeDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMTimeSliceBaseTypeDrilldown into AbstractAIXMTimeSliceTypeXSD Diagram of DesignatedPointTimeSliceType
Collapse XSD Schema Code:
<complexType name="DesignatedPointTimeSliceType">
    <complexContent>
        <extension base="aixm:AbstractAIXMTimeSliceType">
            <sequence>
                <group ref="aixm:DesignatedPointPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <sequence>
                            <element ref="aixm:AbstractDesignatedPointExtension" />
                        </sequence>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
validTime gml:validTime (1) (1)
interpretation aixm:interpretation (1) (1)
sequenceNumber aixm:sequenceNumber 0 (1)
correctionNumber aixm:correctionNumber 0 (1)
timeSliceMetadata aixm:timeSliceMetadata 0 (1)
featureLifetime aixm:featureLifetime 0 (1)
designator aixm:designator 0 (1)
type aixm:type 0 (1)
name aixm:name 0 (1)
location aixm:location 0 1
aimingPoint aixm:aimingPoint 0 1
airportHeliport aixm:airportHeliport 0 1
runwayPoint aixm:runwayPoint 0 1
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:DesignatedPointPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:DesignatedPointTimeSlice
