Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: AerialRefuellingTimeSliceType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMTimeSliceType
Containing Schema: AIXM_Features.xsd
Abstract

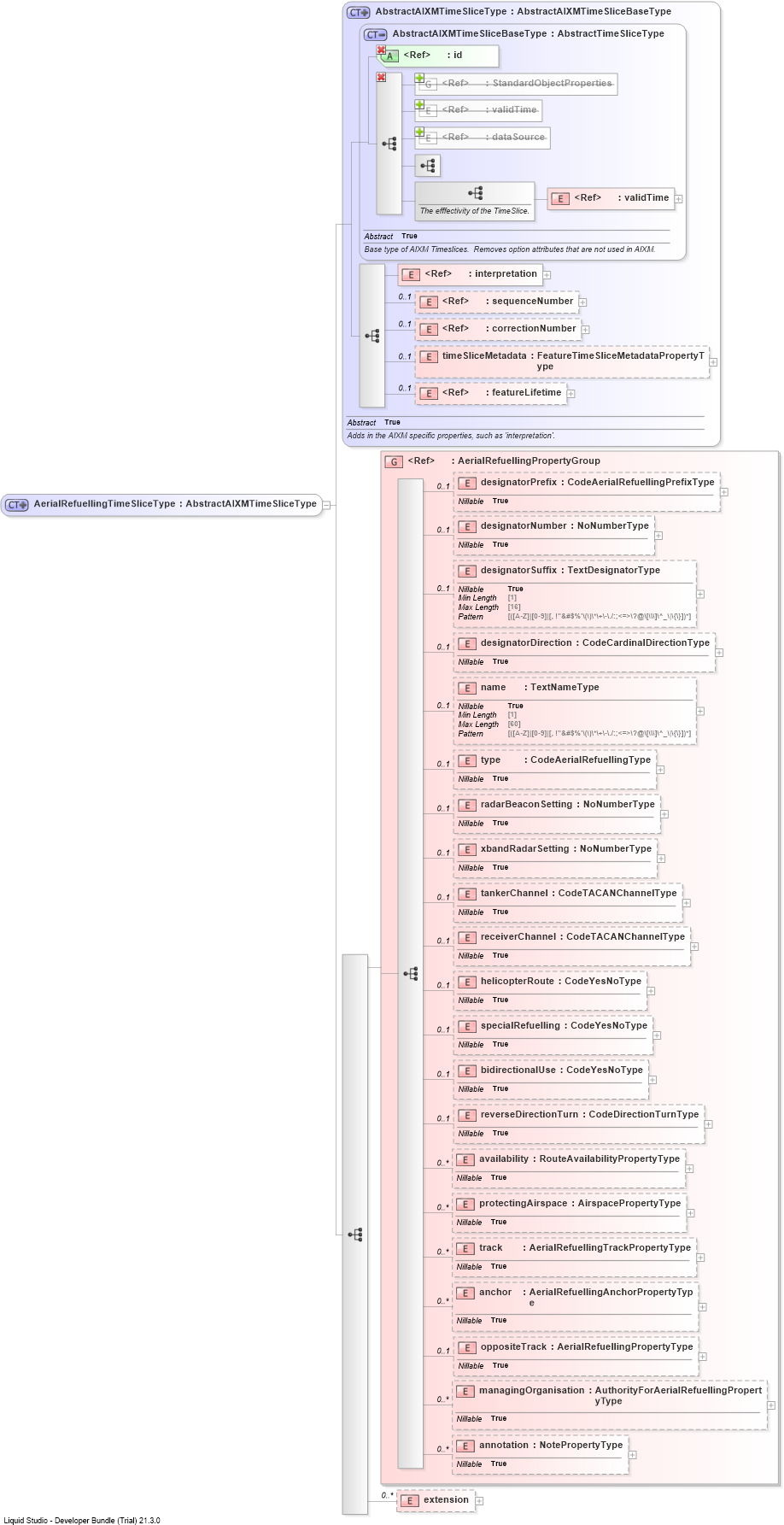

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into managingOrganisationDrilldown into oppositeTrackDrilldown into anchorDrilldown into trackDrilldown into protectingAirspaceDrilldown into availabilityDrilldown into reverseDirectionTurnDrilldown into bidirectionalUseDrilldown into specialRefuellingDrilldown into helicopterRouteDrilldown into receiverChannelDrilldown into tankerChannelDrilldown into xbandRadarSettingDrilldown into radarBeaconSettingDrilldown into typeDrilldown into nameDrilldown into designatorDirectionDrilldown into designatorSuffixDrilldown into designatorNumberDrilldown into designatorPrefixDrilldown into AerialRefuellingPropertyGroupDrilldown into featureLifetimeDrilldown into timeSliceMetadataDrilldown into correctionNumberDrilldown into sequenceNumberDrilldown into interpretationDrilldown into validTimeDrilldown into dataSourceDrilldown into validTimeDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMTimeSliceBaseTypeDrilldown into AbstractAIXMTimeSliceTypeXSD Diagram of AerialRefuellingTimeSliceType
Collapse XSD Schema Code:
<complexType name="AerialRefuellingTimeSliceType">
    <complexContent>
        <extension base="aixm:AbstractAIXMTimeSliceType">
            <sequence>
                <group ref="aixm:AerialRefuellingPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <sequence>
                            <element ref="aixm:AbstractAerialRefuellingExtension" />
                        </sequence>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
validTime gml:validTime (1) (1)
interpretation aixm:interpretation (1) (1)
sequenceNumber aixm:sequenceNumber 0 (1)
correctionNumber aixm:correctionNumber 0 (1)
timeSliceMetadata aixm:timeSliceMetadata 0 (1)
featureLifetime aixm:featureLifetime 0 (1)
designatorPrefix aixm:designatorPrefix 0 (1)
designatorNumber aixm:designatorNumber 0 (1)
designatorSuffix aixm:designatorSuffix 0 (1)
designatorDirection aixm:designatorDirection 0 (1)
name aixm:name 0 (1)
type aixm:type 0 (1)
radarBeaconSetting aixm:radarBeaconSetting 0 (1)
xbandRadarSetting aixm:xbandRadarSetting 0 (1)
tankerChannel aixm:tankerChannel 0 (1)
receiverChannel aixm:receiverChannel 0 (1)
helicopterRoute aixm:helicopterRoute 0 (1)
specialRefuelling aixm:specialRefuelling 0 (1)
bidirectionalUse aixm:bidirectionalUse 0 (1)
reverseDirectionTurn aixm:reverseDirectionTurn 0 (1)
availability aixm:availability 0 unbounded
protectingAirspace aixm:protectingAirspace 0 unbounded
track aixm:track 0 unbounded
anchor aixm:anchor 0 unbounded
oppositeTrack aixm:oppositeTrack 0 1
managingOrganisation aixm:managingOrganisation 0 unbounded
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:AerialRefuellingPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:AerialRefuellingTimeSlice
