Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: SearchRescueServiceTimeSliceType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMTimeSliceType
Containing Schema: AIXM_Features.xsd
Abstract

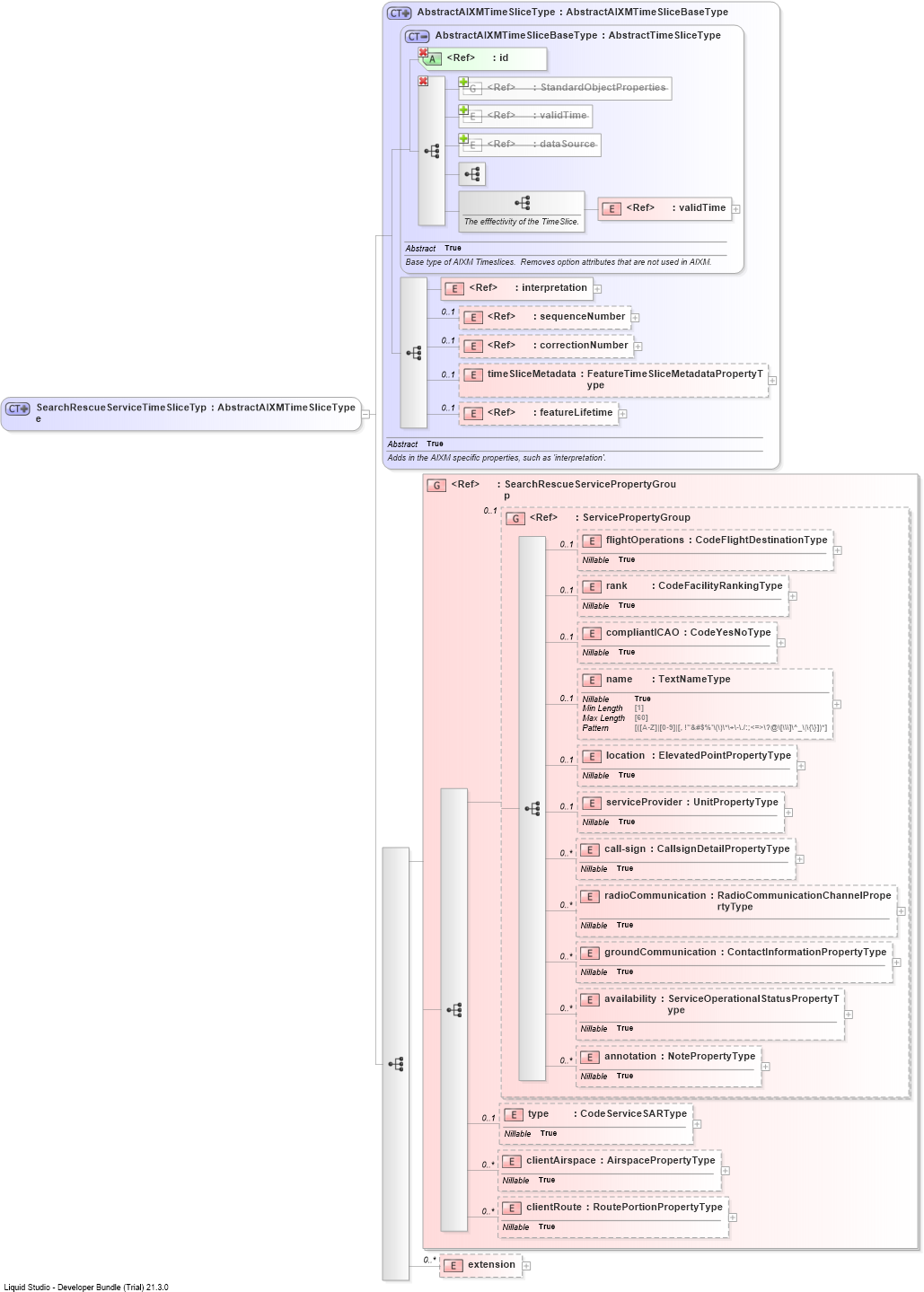

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into clientRouteDrilldown into clientAirspaceDrilldown into typeDrilldown into annotationDrilldown into availabilityDrilldown into groundCommunicationDrilldown into radioCommunicationDrilldown into call-signDrilldown into serviceProviderDrilldown into locationDrilldown into nameDrilldown into compliantICAODrilldown into rankDrilldown into flightOperationsDrilldown into ServicePropertyGroupDrilldown into SearchRescueServicePropertyGroupDrilldown into featureLifetimeDrilldown into timeSliceMetadataDrilldown into correctionNumberDrilldown into sequenceNumberDrilldown into interpretationDrilldown into validTimeDrilldown into dataSourceDrilldown into validTimeDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMTimeSliceBaseTypeDrilldown into AbstractAIXMTimeSliceTypeXSD Diagram of SearchRescueServiceTimeSliceType
Collapse XSD Schema Code:
<complexType name="SearchRescueServiceTimeSliceType">
    <complexContent>
        <extension base="aixm:AbstractAIXMTimeSliceType">
            <sequence>
                <group ref="aixm:SearchRescueServicePropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractSearchRescueServiceExtension" />
                            <element ref="aixm:AbstractServiceExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
validTime gml:validTime (1) (1)
interpretation aixm:interpretation (1) (1)
sequenceNumber aixm:sequenceNumber 0 (1)
correctionNumber aixm:correctionNumber 0 (1)
timeSliceMetadata aixm:timeSliceMetadata 0 (1)
featureLifetime aixm:featureLifetime 0 (1)
flightOperations aixm:flightOperations 0 (1)
rank aixm:rank 0 (1)
compliantICAO aixm:compliantICAO 0 (1)
name aixm:name 0 (1)
location aixm:location 0 1
serviceProvider aixm:serviceProvider 0 1
call-sign aixm:call-sign 0 unbounded
radioCommunication aixm:radioCommunication 0 unbounded
groundCommunication aixm:groundCommunication 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
type aixm:type 0 (1)
clientAirspace aixm:clientAirspace 0 unbounded
clientRoute aixm:clientRoute 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:SearchRescueServicePropertyGroup (1) (1)
<xs:group> aixm:ServicePropertyGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:SearchRescueServiceTimeSlice
