Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: RouteSegmentTimeSliceType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMTimeSliceType
Containing Schema: AIXM_Features.xsd
Abstract

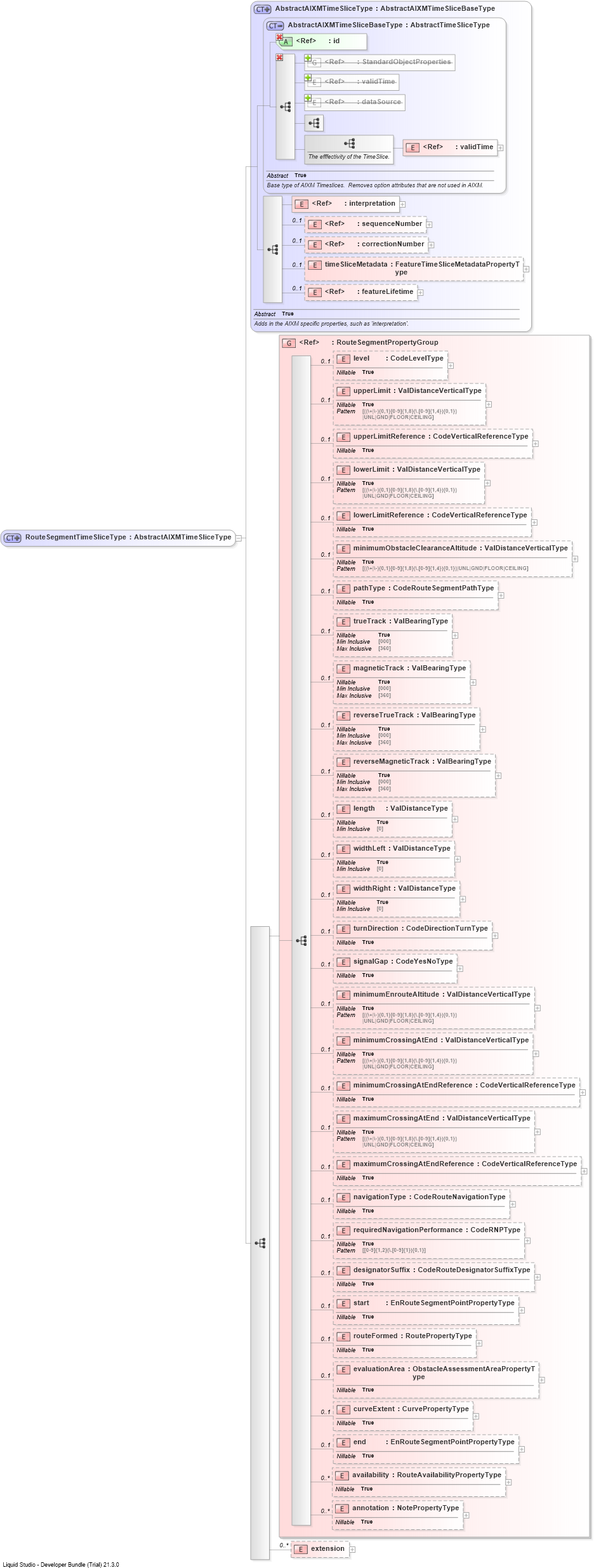

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into availabilityDrilldown into endDrilldown into curveExtentDrilldown into evaluationAreaDrilldown into routeFormedDrilldown into startDrilldown into designatorSuffixDrilldown into requiredNavigationPerformanceDrilldown into navigationTypeDrilldown into maximumCrossingAtEndReferenceDrilldown into maximumCrossingAtEndDrilldown into minimumCrossingAtEndReferenceDrilldown into minimumCrossingAtEndDrilldown into minimumEnrouteAltitudeDrilldown into signalGapDrilldown into turnDirectionDrilldown into widthRightDrilldown into widthLeftDrilldown into lengthDrilldown into reverseMagneticTrackDrilldown into reverseTrueTrackDrilldown into magneticTrackDrilldown into trueTrackDrilldown into pathTypeDrilldown into minimumObstacleClearanceAltitudeDrilldown into lowerLimitReferenceDrilldown into lowerLimitDrilldown into upperLimitReferenceDrilldown into upperLimitDrilldown into levelDrilldown into RouteSegmentPropertyGroupDrilldown into featureLifetimeDrilldown into timeSliceMetadataDrilldown into correctionNumberDrilldown into sequenceNumberDrilldown into interpretationDrilldown into validTimeDrilldown into dataSourceDrilldown into validTimeDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMTimeSliceBaseTypeDrilldown into AbstractAIXMTimeSliceTypeXSD Diagram of RouteSegmentTimeSliceType
Collapse XSD Schema Code:
<complexType name="RouteSegmentTimeSliceType">
    <complexContent>
        <extension base="aixm:AbstractAIXMTimeSliceType">
            <sequence>
                <group ref="aixm:RouteSegmentPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <sequence>
                            <element ref="aixm:AbstractRouteSegmentExtension" />
                        </sequence>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
validTime gml:validTime (1) (1)
interpretation aixm:interpretation (1) (1)
sequenceNumber aixm:sequenceNumber 0 (1)
correctionNumber aixm:correctionNumber 0 (1)
timeSliceMetadata aixm:timeSliceMetadata 0 (1)
featureLifetime aixm:featureLifetime 0 (1)
level aixm:level 0 (1)
upperLimit aixm:upperLimit 0 (1)
upperLimitReference aixm:upperLimitReference 0 (1)
lowerLimit aixm:lowerLimit 0 (1)
lowerLimitReference aixm:lowerLimitReference 0 (1)
minimumObstacleClearanceAltitude aixm:minimumObstacleClearanceAltitude 0 (1)
pathType aixm:pathType 0 (1)
trueTrack aixm:trueTrack 0 (1)
magneticTrack aixm:magneticTrack 0 (1)
reverseTrueTrack aixm:reverseTrueTrack 0 (1)
reverseMagneticTrack aixm:reverseMagneticTrack 0 (1)
length aixm:length 0 (1)
widthLeft aixm:widthLeft 0 (1)
widthRight aixm:widthRight 0 (1)
turnDirection aixm:turnDirection 0 (1)
signalGap aixm:signalGap 0 (1)
minimumEnrouteAltitude aixm:minimumEnrouteAltitude 0 (1)
minimumCrossingAtEnd aixm:minimumCrossingAtEnd 0 (1)
minimumCrossingAtEndReference aixm:minimumCrossingAtEndReference 0 (1)
maximumCrossingAtEnd aixm:maximumCrossingAtEnd 0 (1)
maximumCrossingAtEndReference aixm:maximumCrossingAtEndReference 0 (1)
navigationType aixm:navigationType 0 (1)
requiredNavigationPerformance aixm:requiredNavigationPerformance 0 (1)
designatorSuffix aixm:designatorSuffix 0 (1)
start aixm:start 0 1
routeFormed aixm:routeFormed 0 1
evaluationArea aixm:evaluationArea 0 1
curveExtent aixm:curveExtent 0 1
end aixm:end 0 1
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:RouteSegmentPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:RouteSegmentTimeSlice
