Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: NavigationAreaTimeSliceType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMTimeSliceType
Containing Schema: AIXM_Features.xsd
Abstract

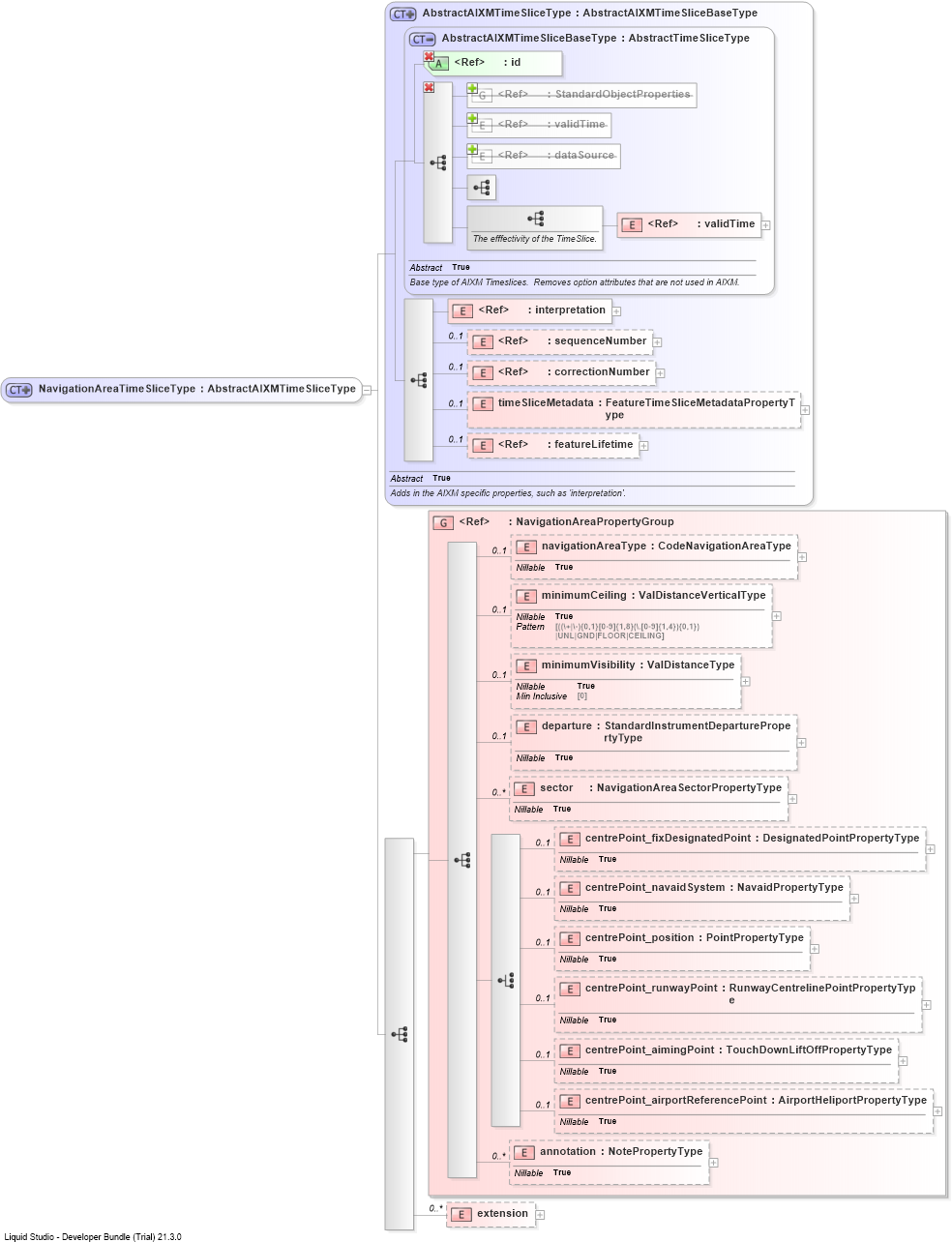

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into centrePoint_airportReferencePointDrilldown into centrePoint_aimingPointDrilldown into centrePoint_runwayPointDrilldown into centrePoint_positionDrilldown into centrePoint_navaidSystemDrilldown into centrePoint_fixDesignatedPointDrilldown into sectorDrilldown into departureDrilldown into minimumVisibilityDrilldown into minimumCeilingDrilldown into navigationAreaTypeDrilldown into NavigationAreaPropertyGroupDrilldown into featureLifetimeDrilldown into timeSliceMetadataDrilldown into correctionNumberDrilldown into sequenceNumberDrilldown into interpretationDrilldown into validTimeDrilldown into dataSourceDrilldown into validTimeDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMTimeSliceBaseTypeDrilldown into AbstractAIXMTimeSliceTypeXSD Diagram of NavigationAreaTimeSliceType
Collapse XSD Schema Code:
<complexType name="NavigationAreaTimeSliceType">
    <complexContent>
        <extension base="aixm:AbstractAIXMTimeSliceType">
            <sequence>
                <group ref="aixm:NavigationAreaPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <sequence>
                            <element ref="aixm:AbstractNavigationAreaExtension" />
                        </sequence>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
validTime gml:validTime (1) (1)
interpretation aixm:interpretation (1) (1)
sequenceNumber aixm:sequenceNumber 0 (1)
correctionNumber aixm:correctionNumber 0 (1)
timeSliceMetadata aixm:timeSliceMetadata 0 (1)
featureLifetime aixm:featureLifetime 0 (1)
navigationAreaType aixm:navigationAreaType 0 (1)
minimumCeiling aixm:minimumCeiling 0 (1)
minimumVisibility aixm:minimumVisibility 0 (1)
departure aixm:departure 0 1
sector aixm:sector 0 unbounded
centrePoint_fixDesignatedPoint aixm:centrePoint_fixDesignatedPoint 0 (1)
centrePoint_navaidSystem aixm:centrePoint_navaidSystem 0 (1)
centrePoint_position aixm:centrePoint_position 0 (1)
centrePoint_runwayPoint aixm:centrePoint_runwayPoint 0 (1)
centrePoint_aimingPoint aixm:centrePoint_aimingPoint 0 (1)
centrePoint_airportReferencePoint aixm:centrePoint_airportReferencePoint 0 (1)
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:NavigationAreaPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:NavigationAreaTimeSlice
