Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: TouchDownLiftOffTimeSliceType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMTimeSliceType
Containing Schema: AIXM_Features.xsd
Abstract

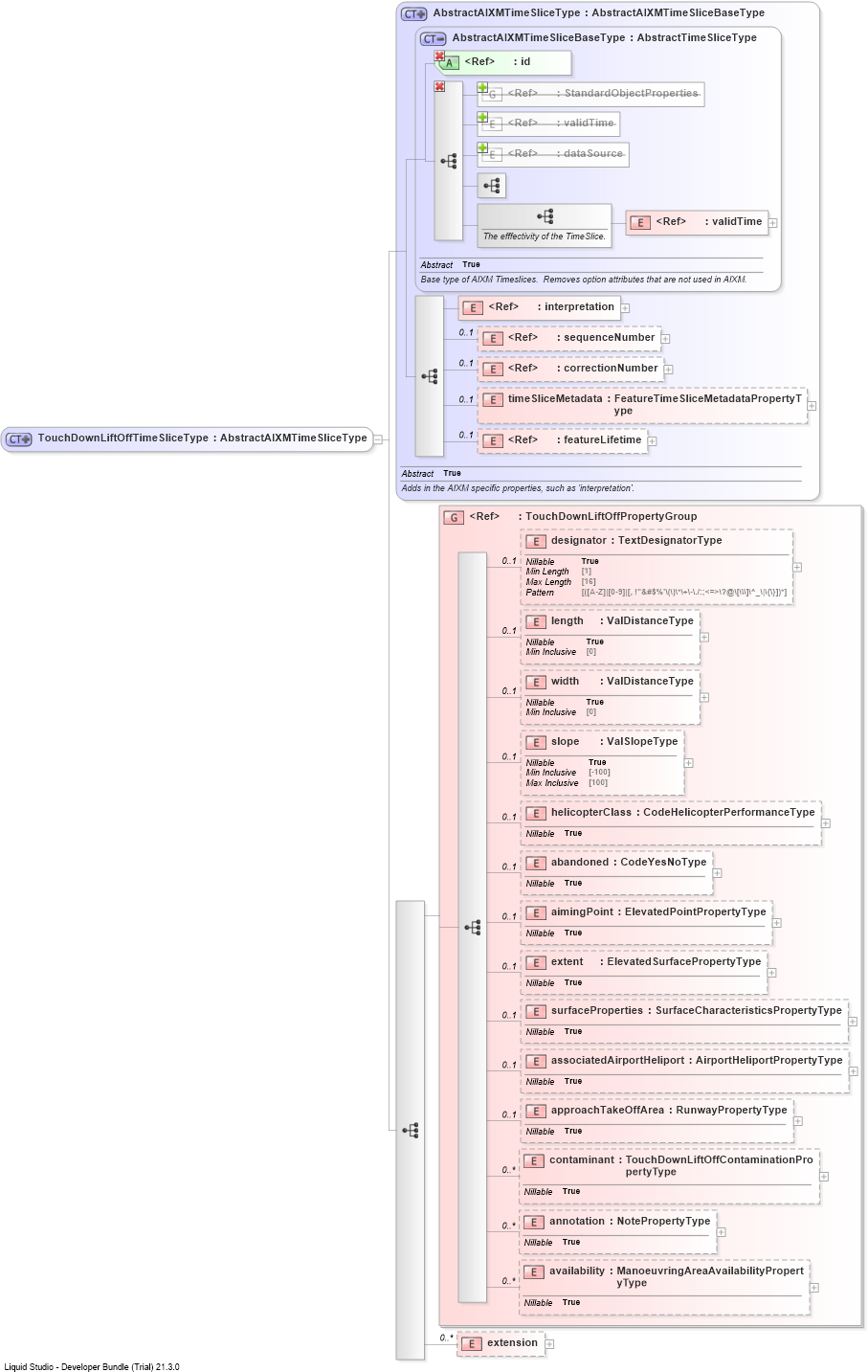

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into availabilityDrilldown into annotationDrilldown into contaminantDrilldown into approachTakeOffAreaDrilldown into associatedAirportHeliportDrilldown into surfacePropertiesDrilldown into extentDrilldown into aimingPointDrilldown into abandonedDrilldown into helicopterClassDrilldown into slopeDrilldown into widthDrilldown into lengthDrilldown into designatorDrilldown into TouchDownLiftOffPropertyGroupDrilldown into featureLifetimeDrilldown into timeSliceMetadataDrilldown into correctionNumberDrilldown into sequenceNumberDrilldown into interpretationDrilldown into validTimeDrilldown into dataSourceDrilldown into validTimeDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMTimeSliceBaseTypeDrilldown into AbstractAIXMTimeSliceTypeXSD Diagram of TouchDownLiftOffTimeSliceType
Collapse XSD Schema Code:
<complexType name="TouchDownLiftOffTimeSliceType">
    <complexContent>
        <extension base="aixm:AbstractAIXMTimeSliceType">
            <sequence>
                <group ref="aixm:TouchDownLiftOffPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <sequence>
                            <element ref="aixm:AbstractTouchDownLiftOffExtension" />
                        </sequence>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
validTime gml:validTime (1) (1)
interpretation aixm:interpretation (1) (1)
sequenceNumber aixm:sequenceNumber 0 (1)
correctionNumber aixm:correctionNumber 0 (1)
timeSliceMetadata aixm:timeSliceMetadata 0 (1)
featureLifetime aixm:featureLifetime 0 (1)
designator aixm:designator 0 (1)
length aixm:length 0 (1)
width aixm:width 0 (1)
slope aixm:slope 0 (1)
helicopterClass aixm:helicopterClass 0 (1)
abandoned aixm:abandoned 0 (1)
aimingPoint aixm:aimingPoint 0 1
extent aixm:extent 0 1
surfaceProperties aixm:surfaceProperties 0 1
associatedAirportHeliport aixm:associatedAirportHeliport 0 1
approachTakeOffArea aixm:approachTakeOffArea 0 1
contaminant aixm:contaminant 0 unbounded
annotation aixm:annotation 0 unbounded
availability aixm:availability 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:TouchDownLiftOffPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:TouchDownLiftOffTimeSlice
