Documentation for AIXM 5.1.1
Definition Type: Element
Name: UnitTimeSlice
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:UnitTimeSliceType
Containing Schema: AIXM_Features.xsd
Abstract

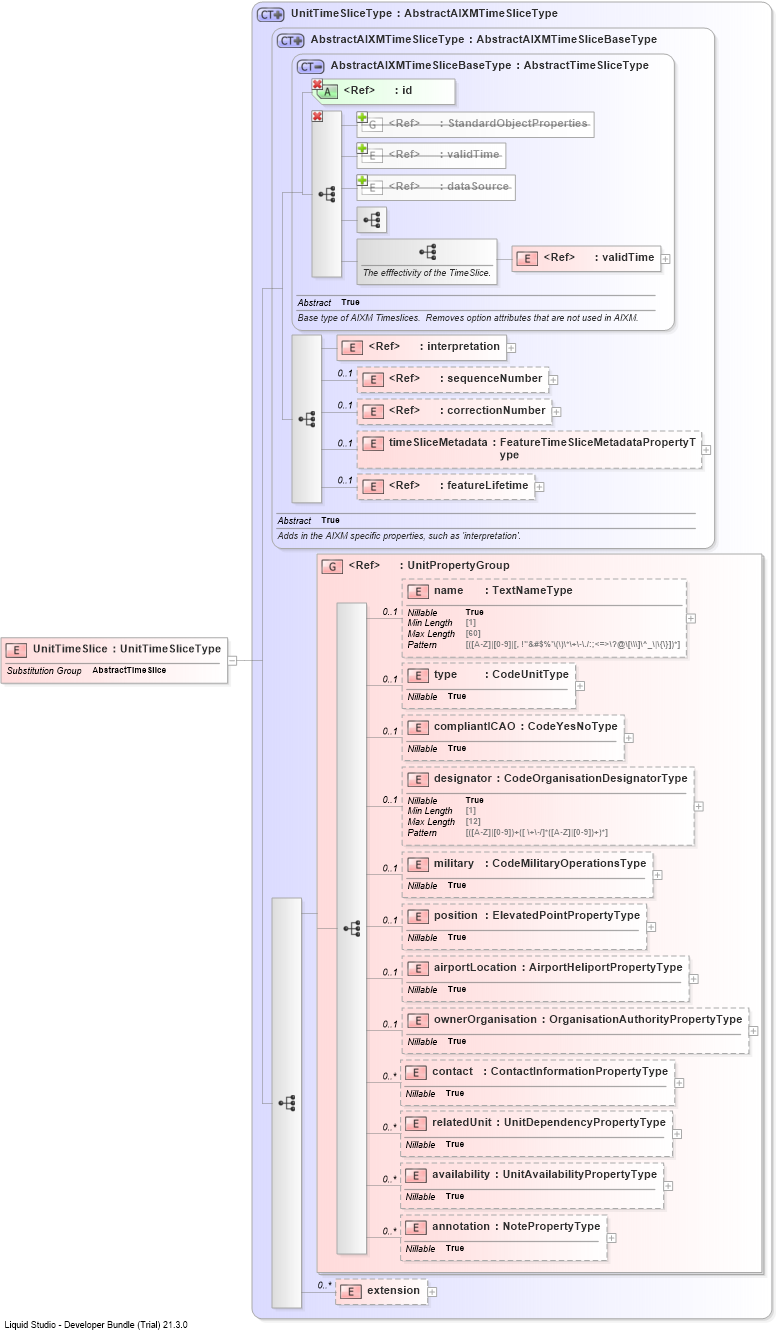

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into availabilityDrilldown into relatedUnitDrilldown into contactDrilldown into ownerOrganisationDrilldown into airportLocationDrilldown into positionDrilldown into militaryDrilldown into designatorDrilldown into compliantICAODrilldown into typeDrilldown into nameDrilldown into UnitPropertyGroupDrilldown into featureLifetimeDrilldown into timeSliceMetadataDrilldown into correctionNumberDrilldown into sequenceNumberDrilldown into interpretationDrilldown into validTimeDrilldown into dataSourceDrilldown into validTimeDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMTimeSliceBaseTypeDrilldown into AbstractAIXMTimeSliceTypeDrilldown into UnitTimeSliceTypeXSD Diagram of UnitTimeSlice
Collapse XSD Schema Code:
<element name="UnitTimeSlice" type="aixm:UnitTimeSliceType" substitutionGroup="gml:AbstractTimeSlice" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
validTime gml:validTime (1) (1)
dataSource gml:dataSource 0 (1)
validTime gml:validTime (1) (1)
interpretation aixm:interpretation (1) (1)
sequenceNumber aixm:sequenceNumber 0 (1)
correctionNumber aixm:correctionNumber 0 (1)
timeSliceMetadata aixm:timeSliceMetadata 0 (1)
featureLifetime aixm:featureLifetime 0 (1)
name aixm:name 0 (1)
type aixm:type 0 (1)
compliantICAO aixm:compliantICAO 0 (1)
designator aixm:designator 0 (1)
military aixm:military 0 (1)
position aixm:position 0 1
airportLocation aixm:airportLocation 0 1
ownerOrganisation aixm:ownerOrganisation 0 1
contact aixm:contact 0 unbounded
relatedUnit aixm:relatedUnit 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:UnitPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:AbstractTimeSlice
