Definition Type: Element
Name: ImageCRS
Namespace: http://www.opengis.net/gml/3.2
Type: gml:ImageCRSType
Containing Schema: coordinateReferenceSystems.xsd
Abstract
Documentation:
gml:ImageCRS is an engineering coordinate reference system applied to locations in images. Image coordinate reference systems are treated as a separate sub-type because the definition of the associated image datum contains two attributes not relevant to other engineering datums.

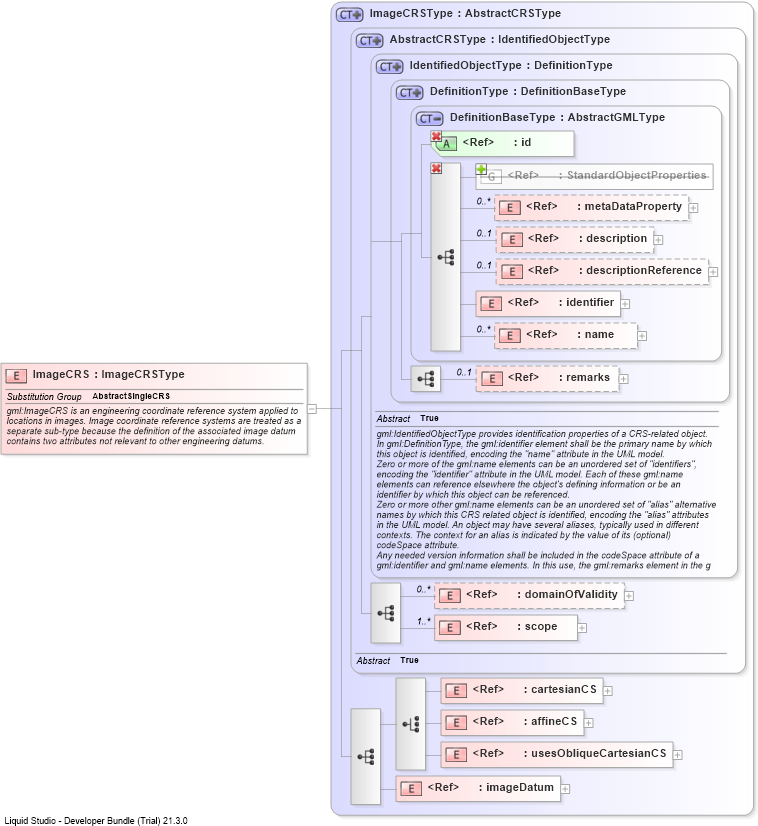

Collapse XSD Schema Diagram:
Drilldown into imageDatumDrilldown into usesObliqueCartesianCSDrilldown into affineCSDrilldown into cartesianCSDrilldown into scopeDrilldown into domainOfValidityDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into IdentifiedObjectTypeDrilldown into AbstractCRSTypeDrilldown into ImageCRSTypeXSD Diagram of ImageCRS
Collapse XSD Schema Code:
<element name="ImageCRS" type="gml:ImageCRSType" substitutionGroup="gml:AbstractSingleCRS">
    <annotation>
        <documentation>gml:ImageCRS is an engineering coordinate reference system applied to locations in images. Image coordinate reference systems are treated as a separate sub-type because the definition of the associated image datum contains two attributes not relevant to other engineering datums.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 unbounded
scope gml:scope (1) unbounded
cartesianCS gml:cartesianCS (1) (1)
affineCS gml:affineCS (1) (1)
usesObliqueCartesianCS gml:usesObliqueCartesianCS (1) (1)
imageDatum gml:imageDatum (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:AbstractSingleCRS
