Documentation for AIXM 5.1.1
Definition Type: Element
Name: ImageDatum
Namespace: http://www.opengis.net/gml/3.2
Type: gml:ImageDatumType
Containing Schema: datums.xsd
Abstract
Documentation:
gml:ImageDatum defines the origin of an image coordinate reference system, and is used in a local context only. For an image datum, the anchor definition is usually either the centre of the image or the corner of the image. For more information, see ISO 19111 B.3.5.

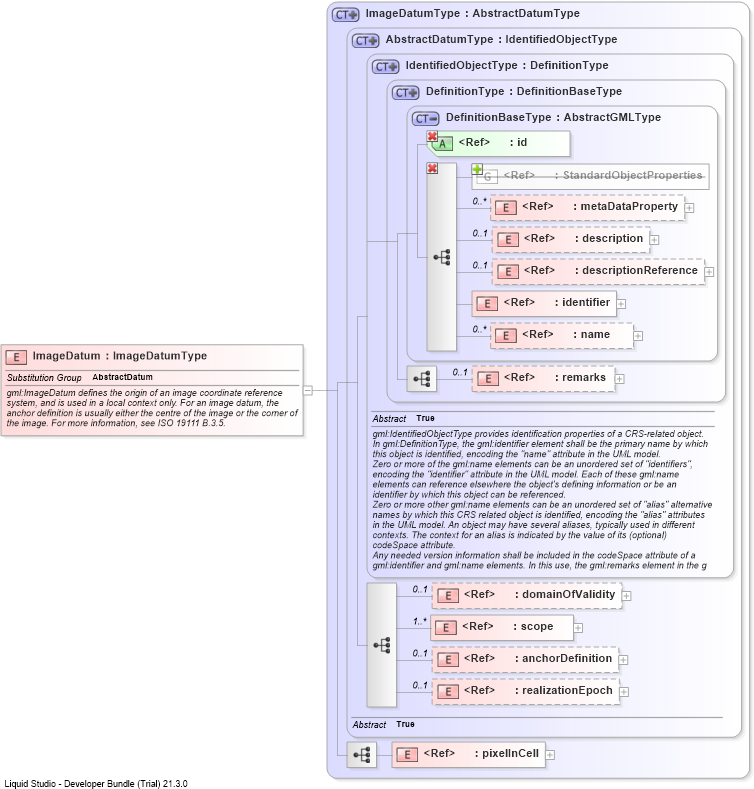

Collapse XSD Schema Diagram:
Drilldown into pixelInCellDrilldown into realizationEpochDrilldown into anchorDefinitionDrilldown into scopeDrilldown into domainOfValidityDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into IdentifiedObjectTypeDrilldown into AbstractDatumTypeDrilldown into ImageDatumTypeXSD Diagram of ImageDatum
Collapse XSD Schema Code:
<element name="ImageDatum" type="gml:ImageDatumType" substitutionGroup="gml:AbstractDatum">
    <annotation>
        <documentation>gml:ImageDatum defines the origin of an image coordinate reference system, and is used in a local context only. For an image datum, the anchor definition is usually either the centre of the image or the corner of the image. For more information, see ISO 19111 B.3.5.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 (1)
scope gml:scope (1) unbounded
anchorDefinition gml:anchorDefinition 0 (1)
realizationEpoch gml:realizationEpoch 0 (1)
pixelInCell gml:pixelInCell (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gml:AbstractDatum
