Definition Type: ComplexType
Name: ImageDatumPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: datums.xsd
Abstract
Documentation:
gml:ImageDatumPropertyType is a property type for association roles to an image datum, either referencing or containing the definition of that datum.

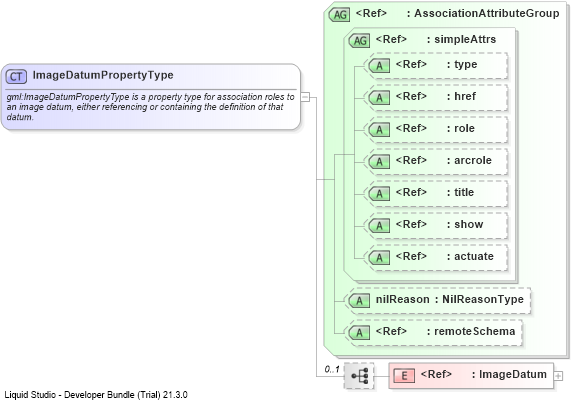

Collapse XSD Schema Diagram:
Drilldown into ImageDatumDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of ImageDatumPropertyType
Collapse XSD Schema Code:
<complexType name="ImageDatumPropertyType">
    <annotation>
        <documentation>gml:ImageDatumPropertyType is a property type for association roles to an image datum, either referencing or containing the definition of that datum.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:ImageDatum" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ImageDatum gml:ImageDatum (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:imageDatum, gml:imageDatumRef, gml:usesImageDatum
