Documentation for AIXM 5.1.1
Definition Type: Group
Name: InformationServicePropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

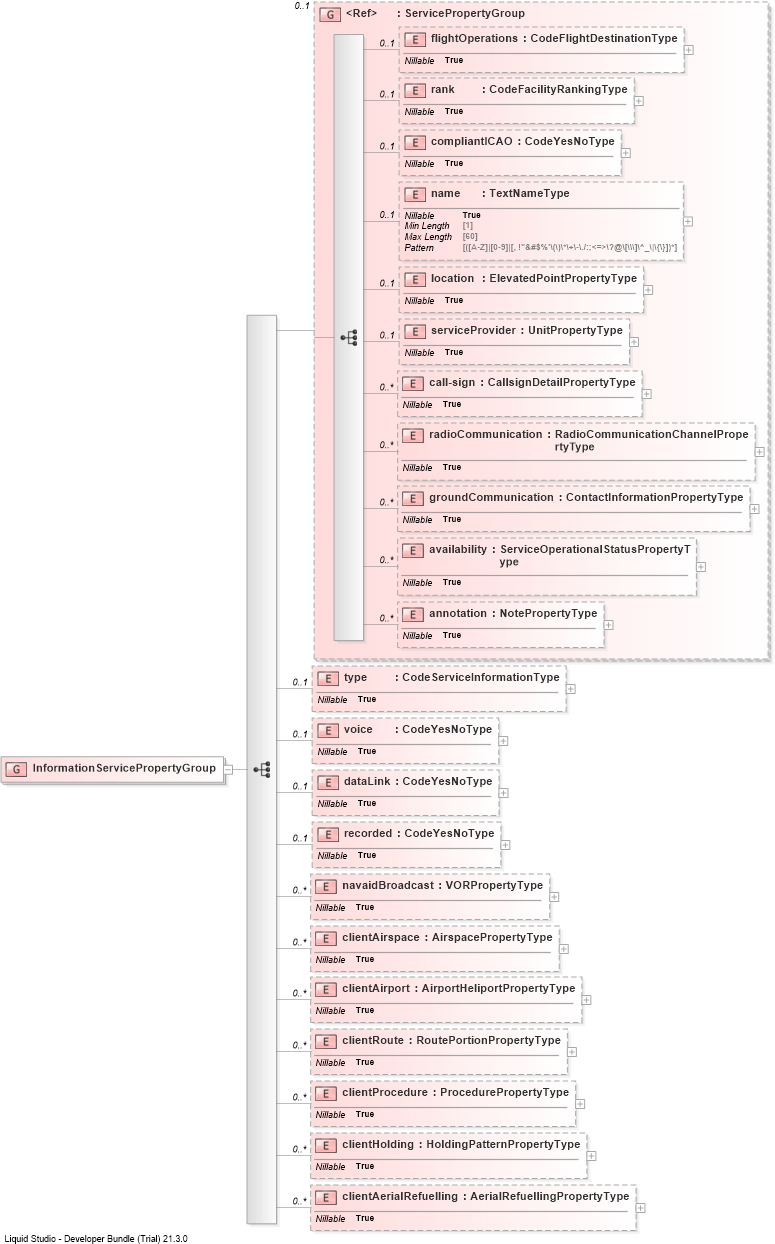

Collapse XSD Schema Diagram:
Drilldown into clientAerialRefuellingDrilldown into clientHoldingDrilldown into clientProcedureDrilldown into clientRouteDrilldown into clientAirportDrilldown into clientAirspaceDrilldown into navaidBroadcastDrilldown into recordedDrilldown into dataLinkDrilldown into voiceDrilldown into typeDrilldown into annotationDrilldown into availabilityDrilldown into groundCommunicationDrilldown into radioCommunicationDrilldown into call-signDrilldown into serviceProviderDrilldown into locationDrilldown into nameDrilldown into compliantICAODrilldown into rankDrilldown into flightOperationsDrilldown into ServicePropertyGroupXSD Diagram of InformationServicePropertyGroup
Collapse XSD Schema Code:
<group name="InformationServicePropertyGroup">
    <sequence>
        <group ref="aixm:ServicePropertyGroup" minOccurs="0" />
        <element name="type" type="aixm:CodeServiceInformationType" nillable="true" minOccurs="0" />
        <element name="voice" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="dataLink" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="recorded" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="navaidBroadcast" type="aixm:VORPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="clientAirspace" type="aixm:AirspacePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="clientAirport" type="aixm:AirportHeliportPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="clientRoute" type="aixm:RoutePortionPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="clientProcedure" type="aixm:ProcedurePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="clientHolding" type="aixm:HoldingPatternPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="clientAerialRefuelling" type="aixm:AerialRefuellingPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
flightOperations aixm:flightOperations 0 (1)
rank aixm:rank 0 (1)
compliantICAO aixm:compliantICAO 0 (1)
name aixm:name 0 (1)
location aixm:location 0 1
serviceProvider aixm:serviceProvider 0 1
call-sign aixm:call-sign 0 unbounded
radioCommunication aixm:radioCommunication 0 unbounded
groundCommunication aixm:groundCommunication 0 unbounded
availability aixm:availability 0 unbounded
annotation aixm:annotation 0 unbounded
type aixm:type 0 (1)
voice aixm:voice 0 (1)
dataLink aixm:dataLink 0 (1)
recorded aixm:recorded 0 (1)
navaidBroadcast aixm:navaidBroadcast 0 unbounded
clientAirspace aixm:clientAirspace 0 unbounded
clientAirport aixm:clientAirport 0 unbounded
clientRoute aixm:clientRoute 0 unbounded
clientProcedure aixm:clientProcedure 0 unbounded
clientHolding aixm:clientHolding 0 unbounded
clientAerialRefuelling aixm:clientAerialRefuelling 0 unbounded
<xs:group> aixm:ServicePropertyGroup 0 (1)
