Documentation for AIXM 5.1.1
Definition Type: Element
Name: LineString
Namespace: http://www.opengis.net/gml/3.2
Type: gml:LineStringType
Containing Schema: geometryBasic0d1d.xsd
Abstract
Documentation:
A LineString is a special curve that consists of a single segment with linear interpolation. It is defined by two or more coordinate tuples, with linear interpolation between them. The number of direct positions in the list shall be at least two.

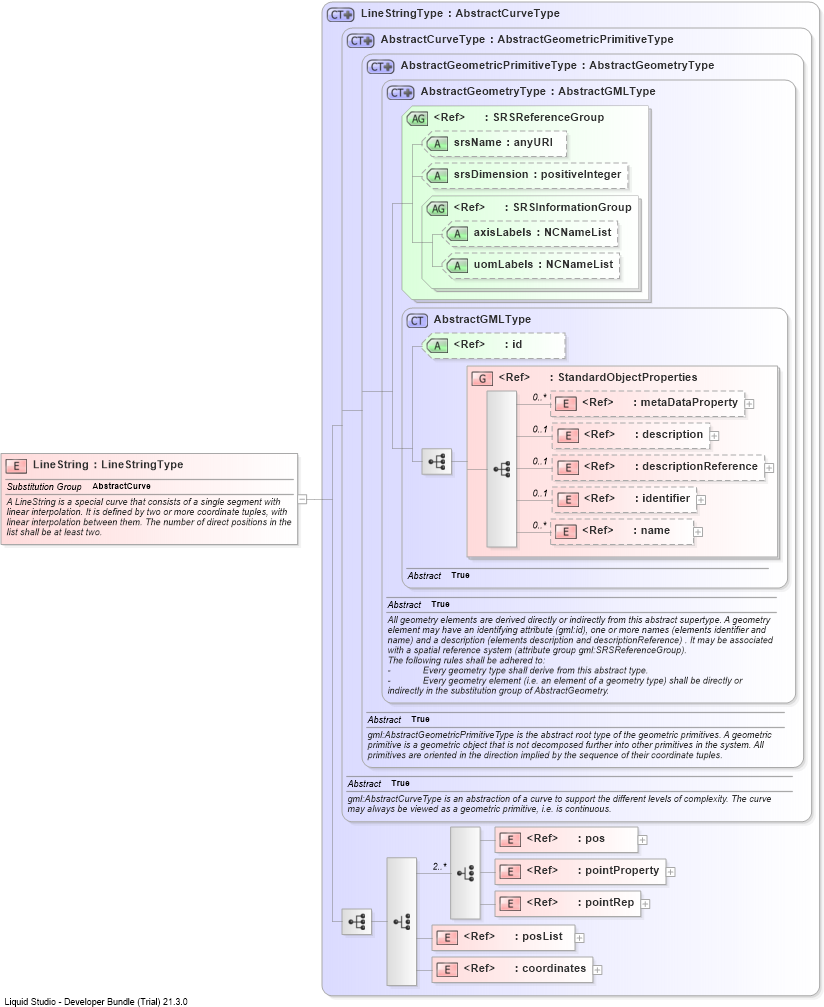

Collapse XSD Schema Diagram:
Drilldown into coordinatesDrilldown into posListDrilldown into pointRepDrilldown into pointPropertyDrilldown into posDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractCurveTypeDrilldown into LineStringTypeXSD Diagram of LineString
Collapse XSD Schema Code:
<element name="LineString" type="gml:LineStringType" substitutionGroup="gml:AbstractCurve">
    <annotation>
        <documentation>A LineString is a special curve that consists of a single segment with linear interpolation. It is defined by two or more coordinate tuples, with linear interpolation between them. The number of direct positions in the list shall be at least two.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
pos gml:pos (1) (1)
pointProperty gml:pointProperty (1) (1)
pointRep gml:pointRep (1) (1)
posList gml:posList (1) (1)
coordinates gml:coordinates (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractCurve
