Documentation for AIXM 5.1.1
Definition Type: Element
Name: MultiSurfaceCoverage
Namespace: http://www.opengis.net/gml/3.2
Type: gml:DiscreteCoverageType
Containing Schema: coverage.xsd
Abstract
Documentation:
In a gml:MultiSurfaceCoverage the domain is partioned into a collection of surfaces comprising a gml:MultiSurface.  The coverage function than maps each surface in the collection to a value in the range set.
The content model is identical with gml:DiscreteCoverageType, but that gml:domainSet shall have values gml:MultiSurface.
In a gml:MultiSurfaceCoverage the mapping from the domain to the range is straightforward.
-	For gml:DataBlock encodings the surfaces of the gml:MultiSurface are mapped in document order to the tuples of the data block.
-	For gml:CompositeValue encodings the surfaces of the gml:MultiSurface are mapped to the members of the composite value in document order.
-	For gml:File encodings the surfaces of the gml:MultiSurface are mapped to the records of the file in sequential order.

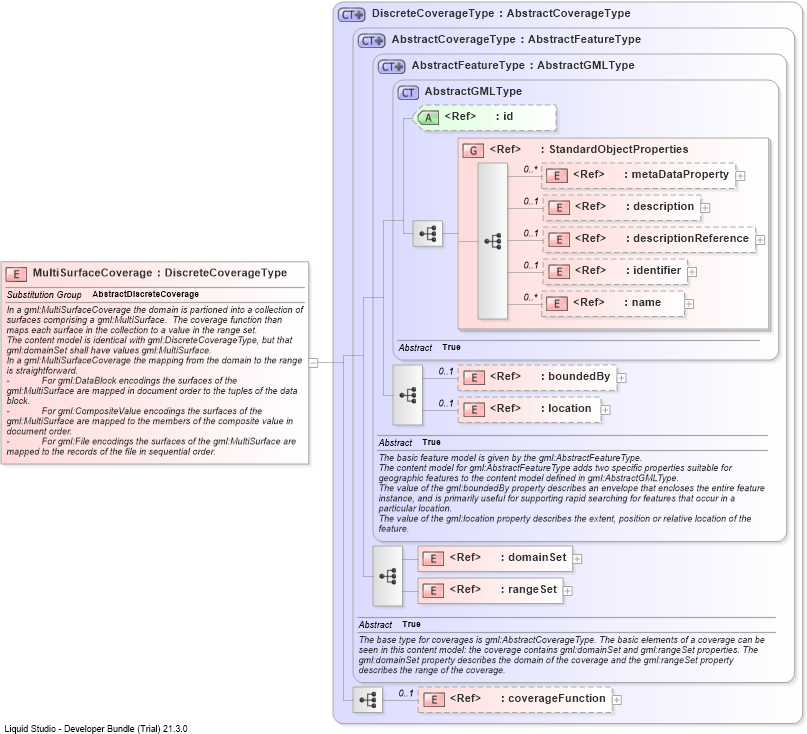

Collapse XSD Schema Diagram:
Drilldown into coverageFunctionDrilldown into rangeSetDrilldown into domainSetDrilldown into locationDrilldown into boundedByDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into AbstractFeatureTypeDrilldown into AbstractCoverageTypeDrilldown into DiscreteCoverageTypeXSD Diagram of MultiSurfaceCoverage
Collapse XSD Schema Code:
<element name="MultiSurfaceCoverage" type="gml:DiscreteCoverageType" substitutionGroup="gml:AbstractDiscreteCoverage">
    <annotation>
        <documentation>In a gml:MultiSurfaceCoverage the domain is partioned into a collection of surfaces comprising a gml:MultiSurface.  The coverage function than maps each surface in the collection to a value in the range set.
The content model is identical with gml:DiscreteCoverageType, but that gml:domainSet shall have values gml:MultiSurface.
In a gml:MultiSurfaceCoverage the mapping from the domain to the range is straightforward.
-	For gml:DataBlock encodings the surfaces of the gml:MultiSurface are mapped in document order to the tuples of the data block.
-	For gml:CompositeValue encodings the surfaces of the gml:MultiSurface are mapped to the members of the composite value in document order.
-	For gml:File encodings the surfaces of the gml:MultiSurface are mapped to the records of the file in sequential order.
</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
boundedBy gml:boundedBy 0 (1)
location gml:location 0 (1)
domainSet gml:domainSet (1) (1)
rangeSet gml:rangeSet (1) (1)
coverageFunction gml:coverageFunction 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractDiscreteCoverage
