Documentation for AIXM 5.1.1
Definition Type: Element
Name: NavaidComponent
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:NavaidComponentType
Containing Schema: AIXM_Features.xsd
Abstract

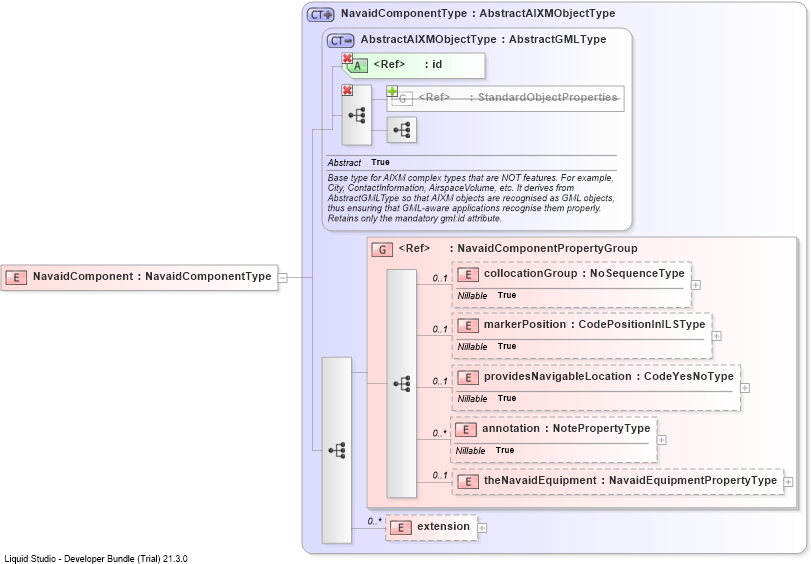

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into theNavaidEquipmentDrilldown into annotationDrilldown into providesNavigableLocationDrilldown into markerPositionDrilldown into collocationGroupDrilldown into NavaidComponentPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into NavaidComponentTypeXSD Diagram of NavaidComponent
Collapse XSD Schema Code:
<element name="NavaidComponent" type="aixm:NavaidComponentType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
collocationGroup aixm:collocationGroup 0 (1)
markerPosition aixm:markerPosition 0 (1)
providesNavigableLocation aixm:providesNavigableLocation 0 (1)
annotation aixm:annotation 0 unbounded
theNavaidEquipment aixm:theNavaidEquipment 0 (1)
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:NavaidComponentPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
