Documentation for AIXM 5.1.1
Definition Type: Element
Name: ObstacleAssessmentArea
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:ObstacleAssessmentAreaType
Containing Schema: AIXM_Features.xsd
Abstract

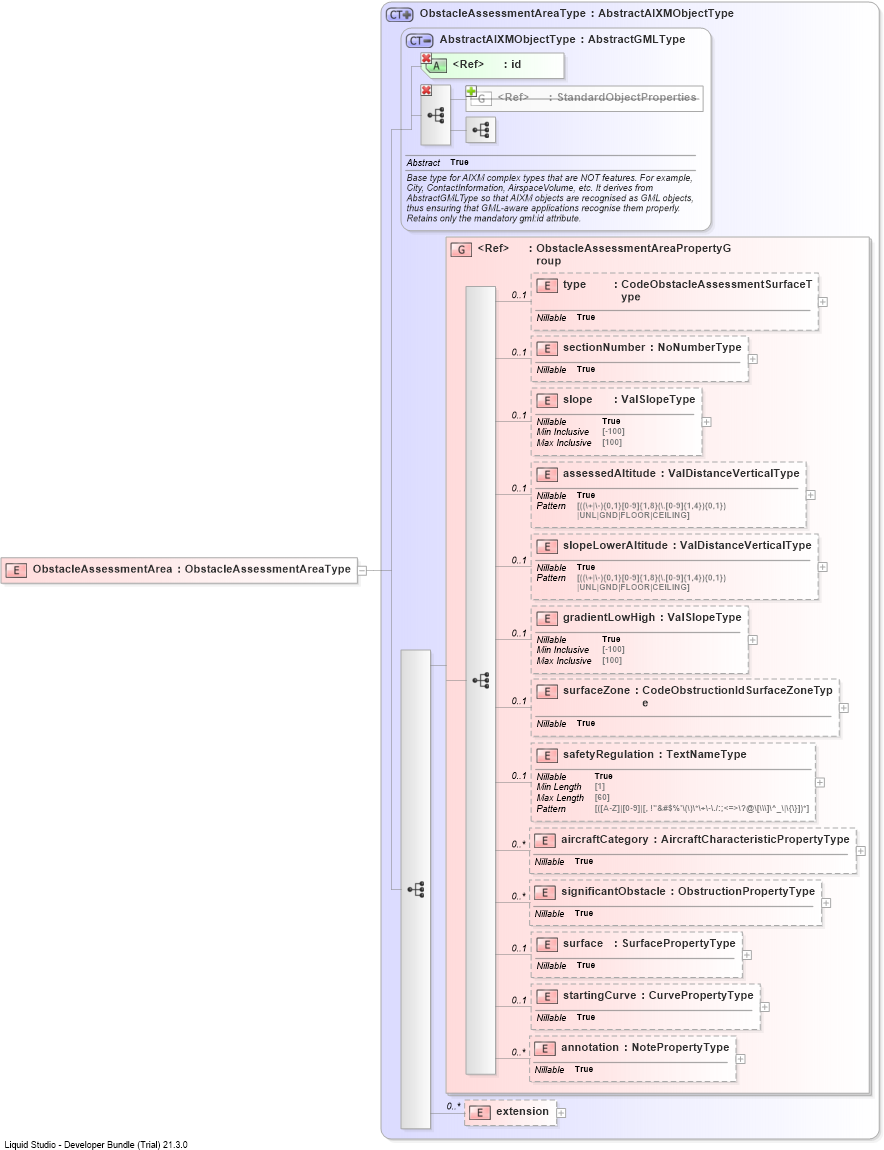

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into startingCurveDrilldown into surfaceDrilldown into significantObstacleDrilldown into aircraftCategoryDrilldown into safetyRegulationDrilldown into surfaceZoneDrilldown into gradientLowHighDrilldown into slopeLowerAltitudeDrilldown into assessedAltitudeDrilldown into slopeDrilldown into sectionNumberDrilldown into typeDrilldown into ObstacleAssessmentAreaPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into ObstacleAssessmentAreaTypeXSD Diagram of ObstacleAssessmentArea
Collapse XSD Schema Code:
<element name="ObstacleAssessmentArea" type="aixm:ObstacleAssessmentAreaType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
type aixm:type 0 (1)
sectionNumber aixm:sectionNumber 0 (1)
slope aixm:slope 0 (1)
assessedAltitude aixm:assessedAltitude 0 (1)
slopeLowerAltitude aixm:slopeLowerAltitude 0 (1)
gradientLowHigh aixm:gradientLowHigh 0 (1)
surfaceZone aixm:surfaceZone 0 (1)
safetyRegulation aixm:safetyRegulation 0 (1)
aircraftCategory aixm:aircraftCategory 0 unbounded
significantObstacle aixm:significantObstacle 0 unbounded
surface aixm:surface 0 1
startingCurve aixm:startingCurve 0 1
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:ObstacleAssessmentAreaPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
