Documentation for AIXM 5.1.1
Definition Type: Element
Name: ObstaclePlacement
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:ObstaclePlacementType
Containing Schema: AIXM_Features.xsd
Abstract

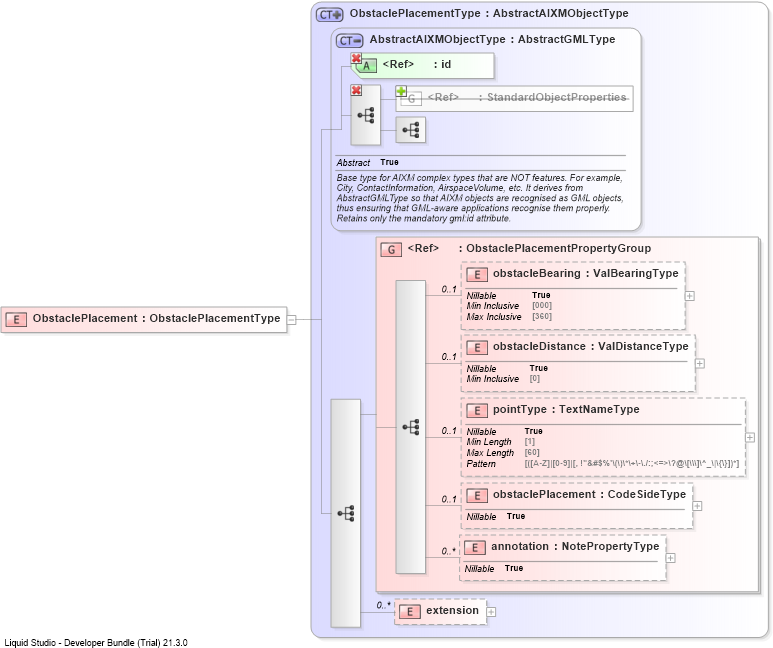

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into obstaclePlacementDrilldown into pointTypeDrilldown into obstacleDistanceDrilldown into obstacleBearingDrilldown into ObstaclePlacementPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into ObstaclePlacementTypeXSD Diagram of ObstaclePlacement
Collapse XSD Schema Code:
<element name="ObstaclePlacement" type="aixm:ObstaclePlacementType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
obstacleBearing aixm:obstacleBearing 0 (1)
obstacleDistance aixm:obstacleDistance 0 (1)
pointType aixm:pointType 0 (1)
obstaclePlacement aixm:obstaclePlacement 0 (1)
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:ObstaclePlacementPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
