Documentation for AIXM 5.1.1
Definition Type: Element
Name: Obstruction
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:ObstructionType
Containing Schema: AIXM_Features.xsd
Abstract

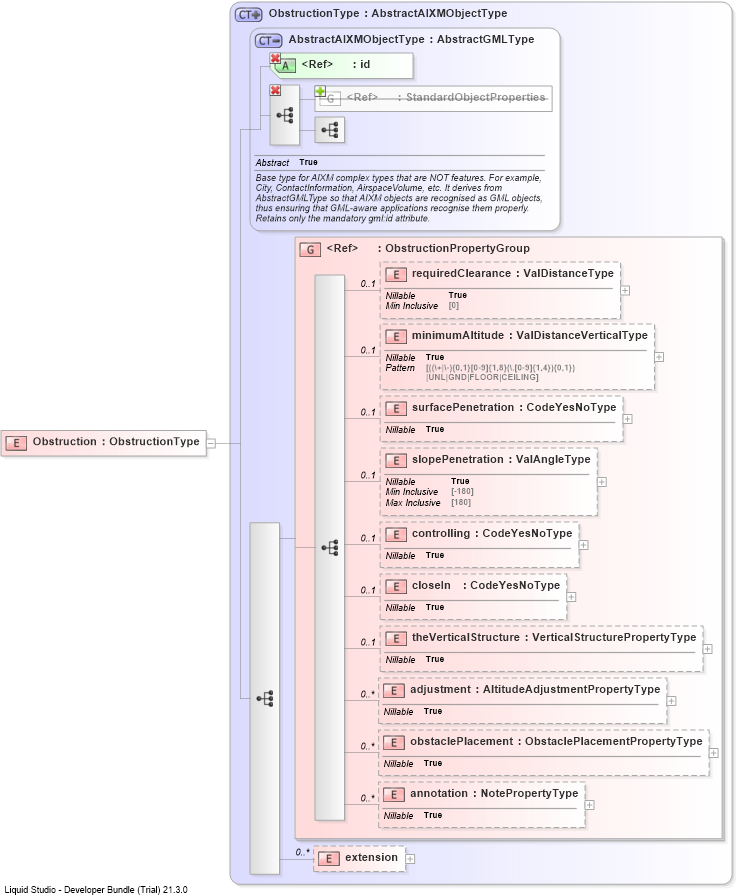

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into obstaclePlacementDrilldown into adjustmentDrilldown into theVerticalStructureDrilldown into closeInDrilldown into controllingDrilldown into slopePenetrationDrilldown into surfacePenetrationDrilldown into minimumAltitudeDrilldown into requiredClearanceDrilldown into ObstructionPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into ObstructionTypeXSD Diagram of Obstruction
Collapse XSD Schema Code:
<element name="Obstruction" type="aixm:ObstructionType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
requiredClearance aixm:requiredClearance 0 (1)
minimumAltitude aixm:minimumAltitude 0 (1)
surfacePenetration aixm:surfacePenetration 0 (1)
slopePenetration aixm:slopePenetration 0 (1)
controlling aixm:controlling 0 (1)
closeIn aixm:closeIn 0 (1)
theVerticalStructure aixm:theVerticalStructure 0 1
adjustment aixm:adjustment 0 unbounded
obstaclePlacement aixm:obstaclePlacement 0 unbounded
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:ObstructionPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
