Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: OperationMethodPropertyType
Namespace: http://www.opengis.net/gml/3.2
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
gml:OperationMethodPropertyType is a property type for association roles to a concrete general-purpose operation method, either referencing or containing the definition of that method.

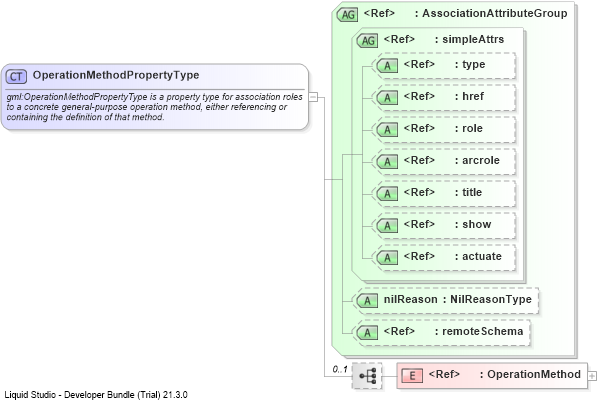

Collapse XSD Schema Diagram:
Drilldown into OperationMethodDrilldown into remoteSchemaDrilldown into nilReasonDrilldown into actuateDrilldown into showDrilldown into titleDrilldown into arcroleDrilldown into roleDrilldown into hrefDrilldown into typeDrilldown into simpleAttrsDrilldown into AssociationAttributeGroupXSD Diagram of OperationMethodPropertyType
Collapse XSD Schema Code:
<complexType name="OperationMethodPropertyType">
    <annotation>
        <documentation>gml:OperationMethodPropertyType is a property type for association roles to a concrete general-purpose operation method, either referencing or containing the definition of that method.</documentation>
    </annotation>
    <sequence minOccurs="0">
        <element ref="gml:OperationMethod" />
    </sequence>
    <attributeGroup ref="gml:AssociationAttributeGroup" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OperationMethod gml:OperationMethod (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type xlink:type (Optional)
href xlink:href (Optional)
role xlink:role (Optional)
arcrole xlink:arcrole (Optional)
title xlink:title (Optional)
show xlink:show (Optional)
actuate xlink:actuate (Optional)
nilReason gml:nilReason (Optional)
remoteSchema gml:remoteSchema (Optional)
Collapse Derivation Tree:
Collapse References:
gml:method, gml:operationMethodRef, gml:usesMethod
