Documentation for AIXM 5.1.1
Definition Type: Element
Name: PassThroughOperation
Namespace: http://www.opengis.net/gml/3.2
Type: gml:PassThroughOperationType
Containing Schema: coordinateOperations.xsd
Abstract
Documentation:
gml:PassThroughOperation is a pass-through operation specifies that a subset of a coordinate tuple is subject to a specific coordinate operation.
The modifiedCoordinate property elements are an ordered sequence of positive integers defining the positions in a coordinate tuple of the coordinates affected by this pass-through operation. The AggregationAttributeGroup should be used to specify that the modifiedCoordinate elements are ordered.

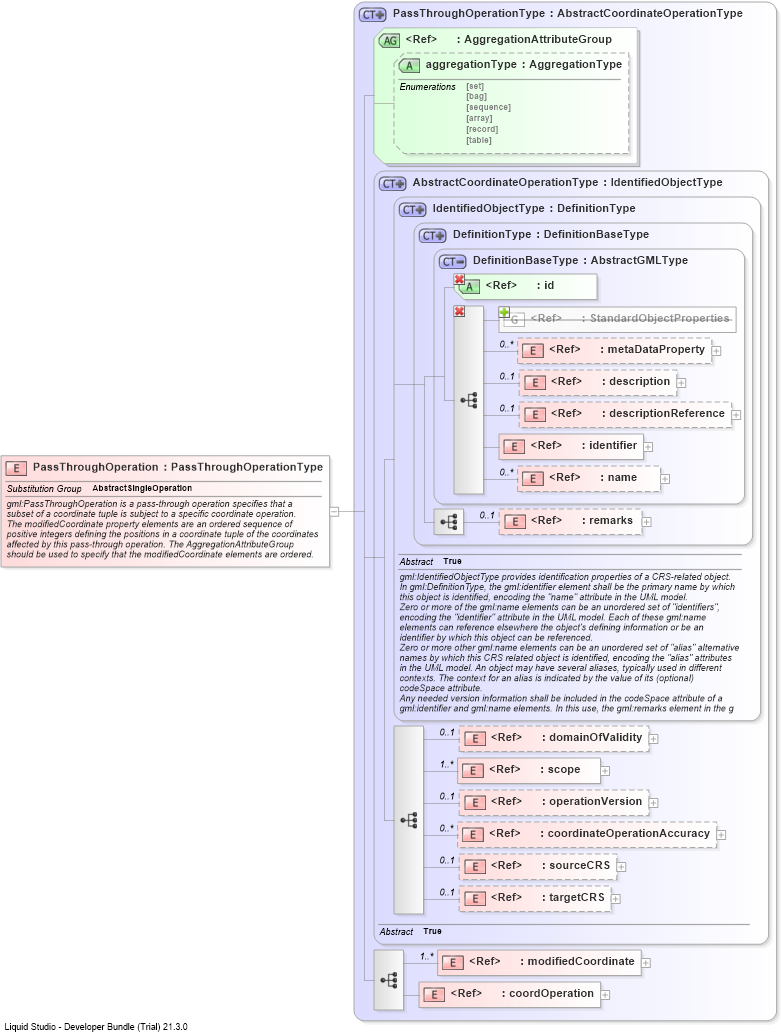

Collapse XSD Schema Diagram:
Drilldown into coordOperationDrilldown into modifiedCoordinateDrilldown into targetCRSDrilldown into sourceCRSDrilldown into coordinateOperationAccuracyDrilldown into operationVersionDrilldown into scopeDrilldown into domainOfValidityDrilldown into remarksDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into DefinitionBaseTypeDrilldown into DefinitionTypeDrilldown into IdentifiedObjectTypeDrilldown into AbstractCoordinateOperationTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into PassThroughOperationTypeXSD Diagram of PassThroughOperation
Collapse XSD Schema Code:
<element name="PassThroughOperation" type="gml:PassThroughOperationType" substitutionGroup="gml:AbstractSingleOperation">
    <annotation>
        <documentation>gml:PassThroughOperation is a pass-through operation specifies that a subset of a coordinate tuple is subject to a specific coordinate operation.
The modifiedCoordinate property elements are an ordered sequence of positive integers defining the positions in a coordinate tuple of the coordinates affected by this pass-through operation. The AggregationAttributeGroup should be used to specify that the modifiedCoordinate elements are ordered.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier (1) (1)
name gml:name 0 unbounded
remarks gml:remarks 0 (1)
domainOfValidity gml:domainOfValidity 0 (1)
scope gml:scope (1) unbounded
operationVersion gml:operationVersion 0 (1)
coordinateOperationAccuracy gml:coordinateOperationAccuracy 0 unbounded
sourceCRS gml:sourceCRS 0 (1)
targetCRS gml:targetCRS 0 (1)
modifiedCoordinate gml:modifiedCoordinate (1) unbounded
coordOperation gml:coordOperation (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractSingleOperation
