Definition Type: Group
Name: ProcedureTransitionPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd
Collapse XSD Schema Diagram:

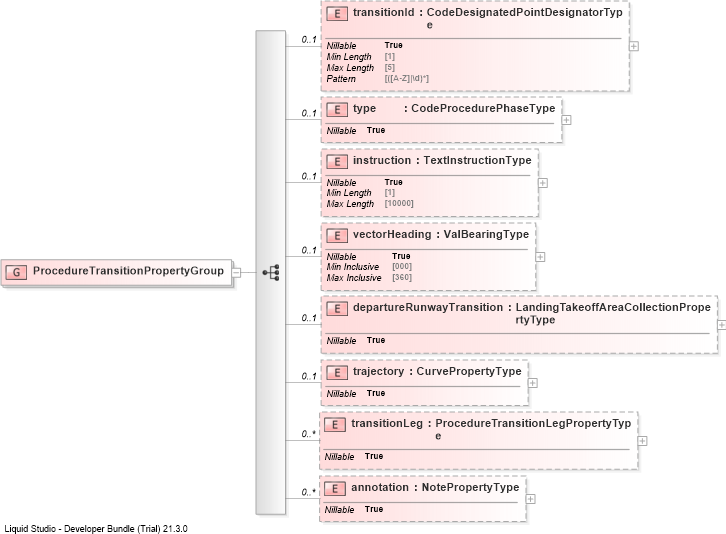

Drilldown into annotationDrilldown into transitionLegDrilldown into trajectoryDrilldown into departureRunwayTransitionDrilldown into vectorHeadingDrilldown into instructionDrilldown into typeDrilldown into transitionIdXSD Diagram of ProcedureTransitionPropertyGroup
Collapse XSD Schema Code:
<group name="ProcedureTransitionPropertyGroup">
    <sequence>
        <element name="transitionId" type="aixm:CodeDesignatedPointDesignatorType" nillable="true" minOccurs="0" />
        <element name="type" type="aixm:CodeProcedurePhaseType" nillable="true" minOccurs="0" />
        <element name="instruction" type="aixm:TextInstructionType" nillable="true" minOccurs="0" />
        <element name="vectorHeading" type="aixm:ValBearingType" nillable="true" minOccurs="0" />
        <element name="departureRunwayTransition" type="aixm:LandingTakeoffAreaCollectionPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="trajectory" type="aixm:CurvePropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
        <element name="transitionLeg" type="aixm:ProcedureTransitionLegPropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
        <element name="annotation" type="aixm:NotePropertyType" nillable="true" minOccurs="0" maxOccurs="unbounded" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
transitionId aixm:transitionId 0 (1)
type aixm:type 0 (1)
instruction aixm:instruction 0 (1)
vectorHeading aixm:vectorHeading 0 (1)
departureRunwayTransition aixm:departureRunwayTransition 0 1
trajectory aixm:trajectory 0 1
transitionLeg aixm:transitionLeg 0 unbounded
annotation aixm:annotation 0 unbounded
