Definition Type: Element
Name: RectifiedGrid
Namespace: http://www.opengis.net/gml/3.2
Type: gml:RectifiedGridType
Containing Schema: grids.xsd
Abstract
Documentation:
A rectified grid is a grid for which there is an affine transformation between the grid coordinates and the coordinates of an external coordinate reference system. It is defined by specifying the position (in some geometric space) of the grid "origin" and of the vectors that specify the post locations.
Note that the grid limits (post indexes) and axis name properties are inherited from gml:GridType and that gml:RectifiedGrid adds a gml:origin property (contains or references a gml:Point) and a set of gml:offsetVector properties.
Collapse XSD Schema Diagram:

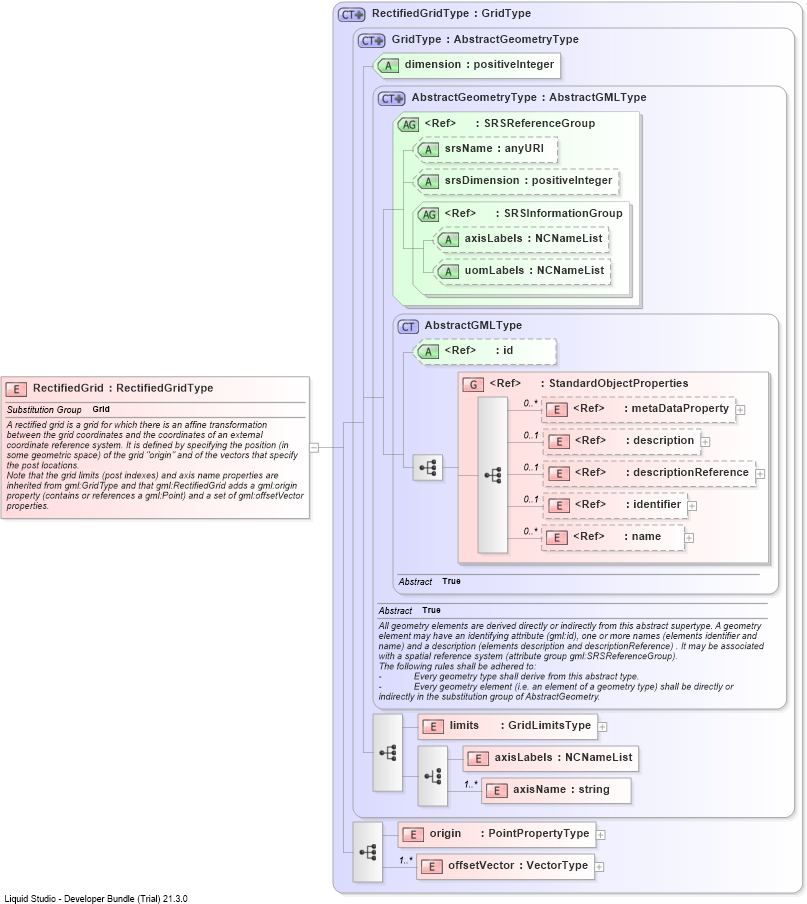

Drilldown into offsetVectorDrilldown into originDrilldown into axisNameDrilldown into axisLabelsDrilldown into limitsDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into dimensionDrilldown into GridTypeDrilldown into RectifiedGridTypeXSD Diagram of RectifiedGrid
Collapse XSD Schema Code:
<element name="RectifiedGrid" type="gml:RectifiedGridType" substitutionGroup="gml:Grid">
    <annotation>
        <documentation>A rectified grid is a grid for which there is an affine transformation between the grid coordinates and the coordinates of an external coordinate reference system. It is defined by specifying the position (in some geometric space) of the grid "origin" and of the vectors that specify the post locations.
Note that the grid limits (post indexes) and axis name properties are inherited from gml:GridType and that gml:RectifiedGrid adds a gml:origin property (contains or references a gml:Point) and a set of gml:offsetVector properties.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
limits gml:limits (1) (1)
axisLabels gml:axisLabels (1) (1)
axisName gml:axisName (1) unbounded
origin gml:origin (1) (1)
offsetVector gml:offsetVector (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
dimension gml:dimension Required
Collapse Derivation Tree:
Collapse References:
gml:Grid
