Documentation for AIXM 5.1.1
Definition Type: Element
Name: Ring
Namespace: http://www.opengis.net/gml/3.2
Type: gml:RingType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A ring is used to represent a single connected component of a surface boundary as specified in ISO 19107:2003, 6.3.6.
Every gml:curveMember references or contains one curve, i.e. any element which is substitutable for gml:AbstractCurve. In the context of a ring, the curves describe the boundary of the surface. The sequence of curves shall be contiguous and connected in a cycle.
If provided, the aggregationType attribute shall have the value "sequence".

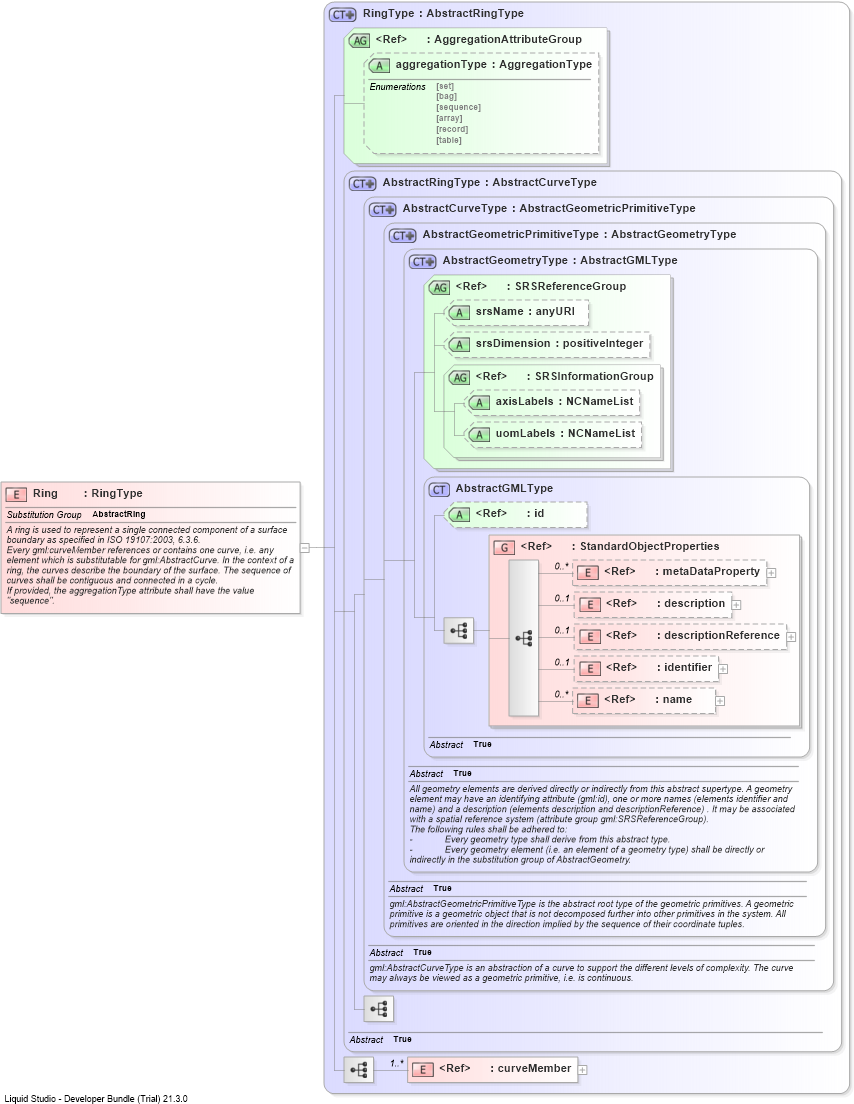

Collapse XSD Schema Diagram:
Drilldown into curveMemberDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractCurveTypeDrilldown into AbstractRingTypeDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into RingTypeXSD Diagram of Ring
Collapse XSD Schema Code:
<element name="Ring" type="gml:RingType" substitutionGroup="gml:AbstractRing">
    <annotation>
        <documentation>A ring is used to represent a single connected component of a surface boundary as specified in ISO 19107:2003, 6.3.6.
Every gml:curveMember references or contains one curve, i.e. any element which is substitutable for gml:AbstractCurve. In the context of a ring, the curves describe the boundary of the surface. The sequence of curves shall be contiguous and connected in a cycle.
If provided, the aggregationType attribute shall have the value "sequence".</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
curveMember gml:curveMember (1) unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
aggregationType gml:aggregationType (Optional)
Collapse Derivation Tree:
Collapse References:
gml:AbstractRing
