Documentation for AIXM 5.1.1
Definition Type: Element
Name: RoutePortion
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:RoutePortionType
Containing Schema: AIXM_Features.xsd
Abstract

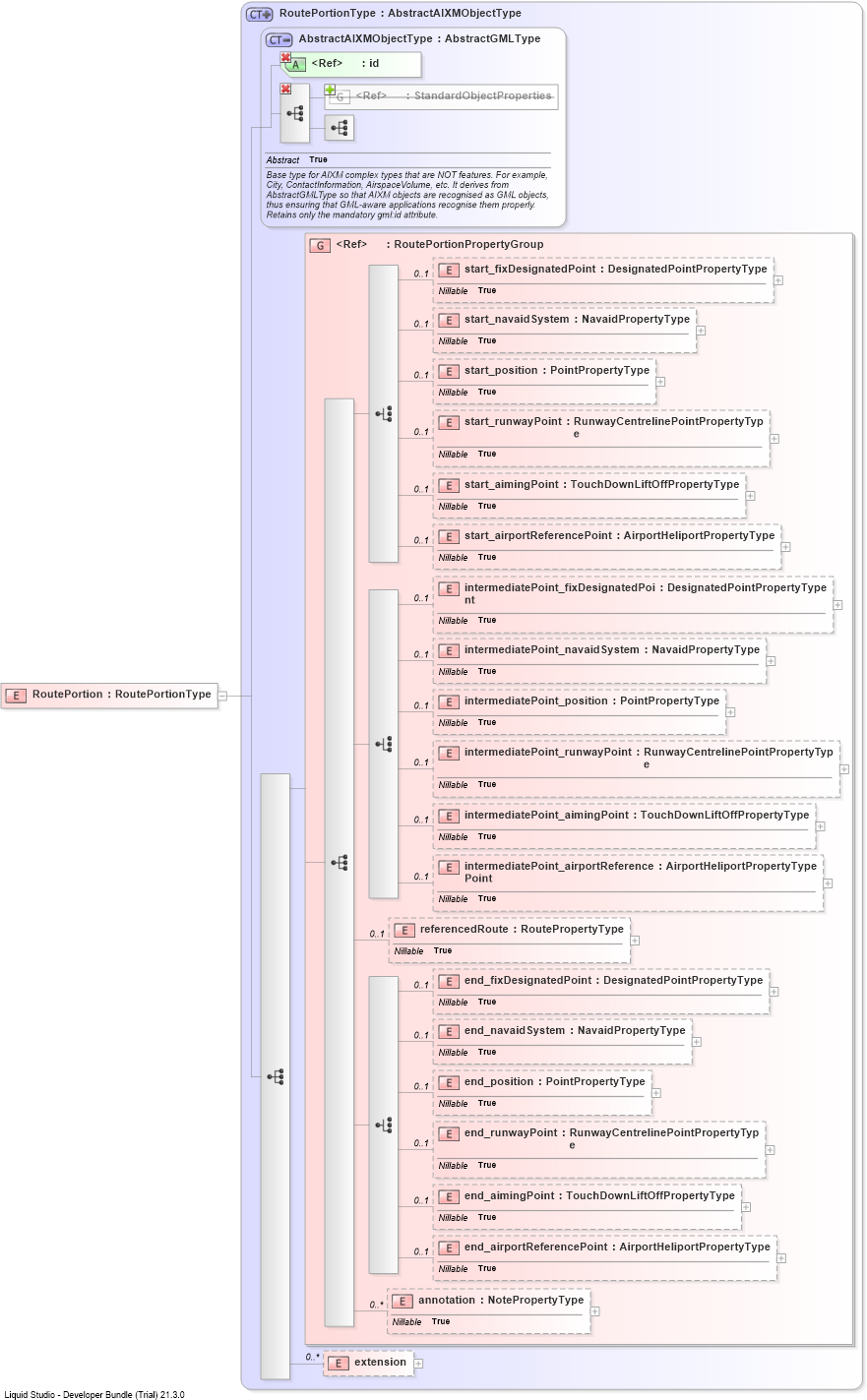

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into end_airportReferencePointDrilldown into end_aimingPointDrilldown into end_runwayPointDrilldown into end_positionDrilldown into end_navaidSystemDrilldown into end_fixDesignatedPointDrilldown into referencedRouteDrilldown into intermediatePoint_airportReferencePointDrilldown into intermediatePoint_aimingPointDrilldown into intermediatePoint_runwayPointDrilldown into intermediatePoint_positionDrilldown into intermediatePoint_navaidSystemDrilldown into intermediatePoint_fixDesignatedPointDrilldown into start_airportReferencePointDrilldown into start_aimingPointDrilldown into start_runwayPointDrilldown into start_positionDrilldown into start_navaidSystemDrilldown into start_fixDesignatedPointDrilldown into RoutePortionPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeDrilldown into RoutePortionTypeXSD Diagram of RoutePortion
Collapse XSD Schema Code:
<element name="RoutePortion" type="aixm:RoutePortionType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
start_fixDesignatedPoint aixm:start_fixDesignatedPoint 0 (1)
start_navaidSystem aixm:start_navaidSystem 0 (1)
start_position aixm:start_position 0 (1)
start_runwayPoint aixm:start_runwayPoint 0 (1)
start_aimingPoint aixm:start_aimingPoint 0 (1)
start_airportReferencePoint aixm:start_airportReferencePoint 0 (1)
intermediatePoint_fixDesignatedPoint aixm:intermediatePoint_fixDesignatedPoint 0 (1)
intermediatePoint_navaidSystem aixm:intermediatePoint_navaidSystem 0 (1)
intermediatePoint_position aixm:intermediatePoint_position 0 (1)
intermediatePoint_runwayPoint aixm:intermediatePoint_runwayPoint 0 (1)
intermediatePoint_aimingPoint aixm:intermediatePoint_aimingPoint 0 (1)
intermediatePoint_airportReferencePoint aixm:intermediatePoint_airportReferencePoint 0 (1)
referencedRoute aixm:referencedRoute 0 1
end_fixDesignatedPoint aixm:end_fixDesignatedPoint 0 (1)
end_navaidSystem aixm:end_navaidSystem 0 (1)
end_position aixm:end_position 0 (1)
end_runwayPoint aixm:end_runwayPoint 0 (1)
end_aimingPoint aixm:end_aimingPoint 0 (1)
end_airportReferencePoint aixm:end_airportReferencePoint 0 (1)
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:RoutePortionPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
