Documentation for AIXM 5.1.1
Definition Type: Group
Name: RunwayProtectAreaPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

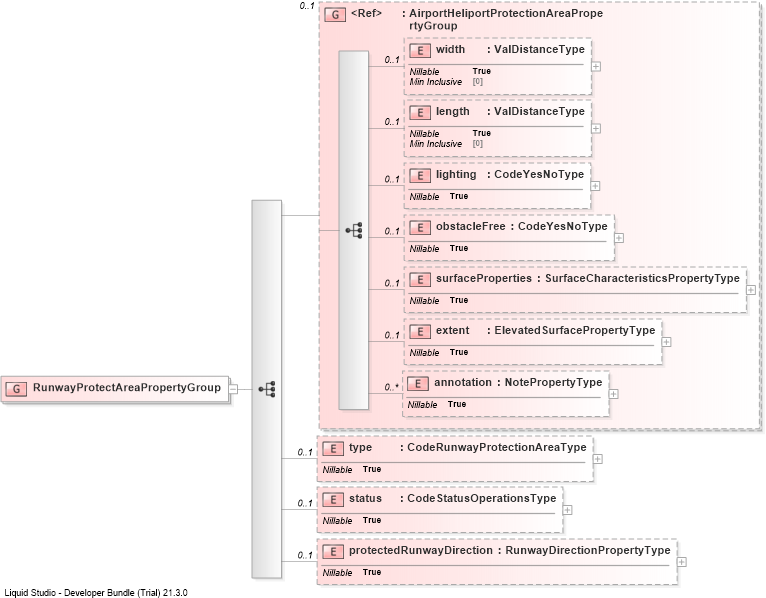

Collapse XSD Schema Diagram:
Drilldown into protectedRunwayDirectionDrilldown into statusDrilldown into typeDrilldown into annotationDrilldown into extentDrilldown into surfacePropertiesDrilldown into obstacleFreeDrilldown into lightingDrilldown into lengthDrilldown into widthDrilldown into AirportHeliportProtectionAreaPropertyGroupXSD Diagram of RunwayProtectAreaPropertyGroup
Collapse XSD Schema Code:
<group name="RunwayProtectAreaPropertyGroup">
    <sequence>
        <group ref="aixm:AirportHeliportProtectionAreaPropertyGroup" minOccurs="0" />
        <element name="type" type="aixm:CodeRunwayProtectionAreaType" nillable="true" minOccurs="0" />
        <element name="status" type="aixm:CodeStatusOperationsType" nillable="true" minOccurs="0" />
        <element name="protectedRunwayDirection" type="aixm:RunwayDirectionPropertyType" nillable="true" minOccurs="0" maxOccurs="1" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
width aixm:width 0 (1)
length aixm:length 0 (1)
lighting aixm:lighting 0 (1)
obstacleFree aixm:obstacleFree 0 (1)
surfaceProperties aixm:surfaceProperties 0 1
extent aixm:extent 0 1
annotation aixm:annotation 0 unbounded
type aixm:type 0 (1)
status aixm:status 0 (1)
protectedRunwayDirection aixm:protectedRunwayDirection 0 1
<xs:group> aixm:AirportHeliportProtectionAreaPropertyGroup 0 (1)
