Definition Type: Group
Name: SecondarySurveillanceRadarPropertyGroup
Namespace: http://www.aixm.aero/schema/5.1.1
Containing Schema: AIXM_Features.xsd

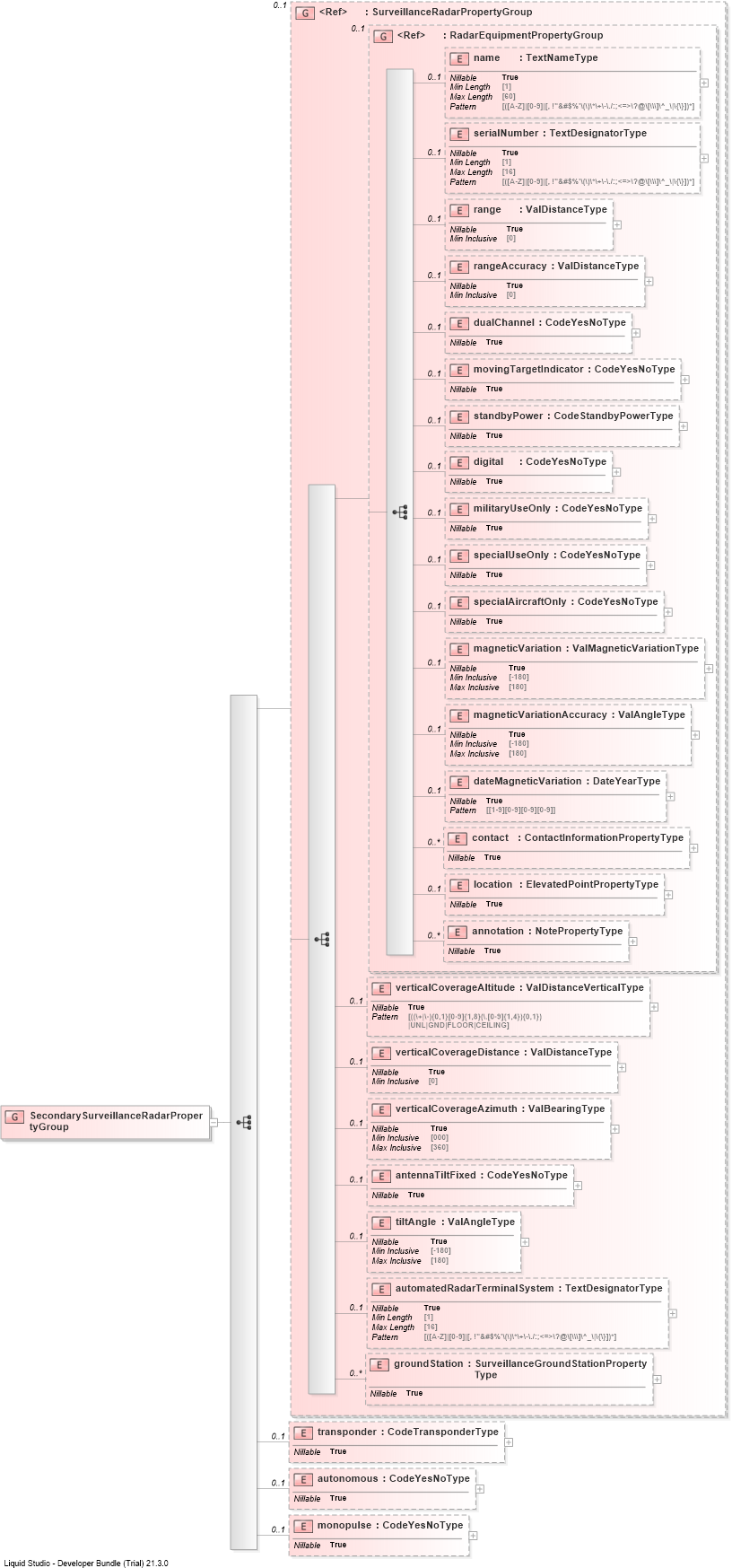

Collapse XSD Schema Diagram:
Drilldown into monopulseDrilldown into autonomousDrilldown into transponderDrilldown into groundStationDrilldown into automatedRadarTerminalSystemDrilldown into tiltAngleDrilldown into antennaTiltFixedDrilldown into verticalCoverageAzimuthDrilldown into verticalCoverageDistanceDrilldown into verticalCoverageAltitudeDrilldown into annotationDrilldown into locationDrilldown into contactDrilldown into dateMagneticVariationDrilldown into magneticVariationAccuracyDrilldown into magneticVariationDrilldown into specialAircraftOnlyDrilldown into specialUseOnlyDrilldown into militaryUseOnlyDrilldown into digitalDrilldown into standbyPowerDrilldown into movingTargetIndicatorDrilldown into dualChannelDrilldown into rangeAccuracyDrilldown into rangeDrilldown into serialNumberDrilldown into nameDrilldown into RadarEquipmentPropertyGroupDrilldown into SurveillanceRadarPropertyGroupXSD Diagram of SecondarySurveillanceRadarPropertyGroup
Collapse XSD Schema Code:
<group name="SecondarySurveillanceRadarPropertyGroup">
    <sequence>
        <group ref="aixm:SurveillanceRadarPropertyGroup" minOccurs="0" />
        <element name="transponder" type="aixm:CodeTransponderType" nillable="true" minOccurs="0" />
        <element name="autonomous" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
        <element name="monopulse" type="aixm:CodeYesNoType" nillable="true" minOccurs="0" />
    </sequence>
</group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name aixm:name 0 (1)
serialNumber aixm:serialNumber 0 (1)
range aixm:range 0 (1)
rangeAccuracy aixm:rangeAccuracy 0 (1)
dualChannel aixm:dualChannel 0 (1)
movingTargetIndicator aixm:movingTargetIndicator 0 (1)
standbyPower aixm:standbyPower 0 (1)
digital aixm:digital 0 (1)
militaryUseOnly aixm:militaryUseOnly 0 (1)
specialUseOnly aixm:specialUseOnly 0 (1)
specialAircraftOnly aixm:specialAircraftOnly 0 (1)
magneticVariation aixm:magneticVariation 0 (1)
magneticVariationAccuracy aixm:magneticVariationAccuracy 0 (1)
dateMagneticVariation aixm:dateMagneticVariation 0 (1)
contact aixm:contact 0 unbounded
location aixm:location 0 1
annotation aixm:annotation 0 unbounded
verticalCoverageAltitude aixm:verticalCoverageAltitude 0 (1)
verticalCoverageDistance aixm:verticalCoverageDistance 0 (1)
verticalCoverageAzimuth aixm:verticalCoverageAzimuth 0 (1)
antennaTiltFixed aixm:antennaTiltFixed 0 (1)
tiltAngle aixm:tiltAngle 0 (1)
automatedRadarTerminalSystem aixm:automatedRadarTerminalSystem 0 (1)
groundStation aixm:groundStation 0 unbounded
transponder aixm:transponder 0 (1)
autonomous aixm:autonomous 0 (1)
monopulse aixm:monopulse 0 (1)
<xs:group> aixm:SurveillanceRadarPropertyGroup 0 (1)
<xs:group> aixm:RadarEquipmentPropertyGroup 0 (1)
