Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: TerminalArrivalAreaSectorType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMObjectType
Containing Schema: AIXM_Features.xsd
Abstract

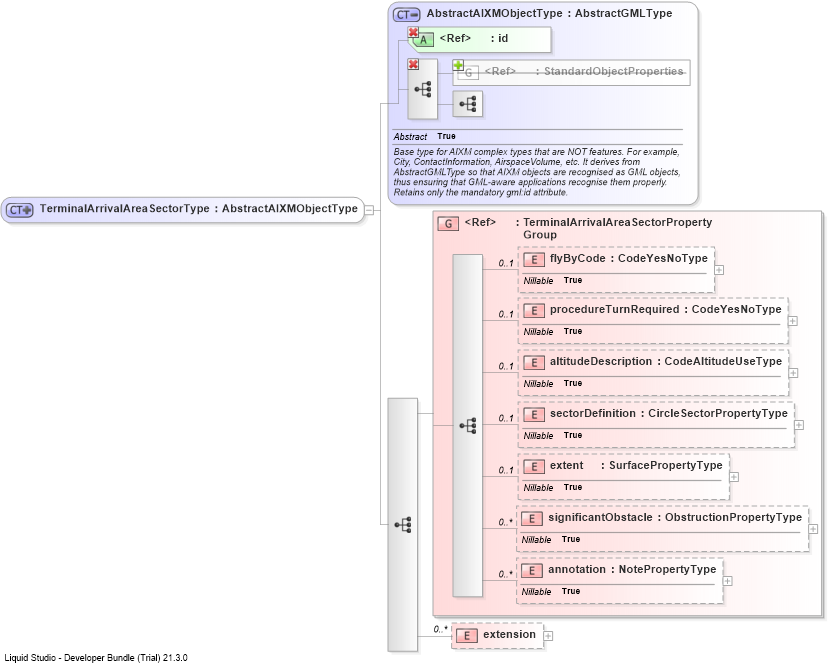

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into significantObstacleDrilldown into extentDrilldown into sectorDefinitionDrilldown into altitudeDescriptionDrilldown into procedureTurnRequiredDrilldown into flyByCodeDrilldown into TerminalArrivalAreaSectorPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeXSD Diagram of TerminalArrivalAreaSectorType
Collapse XSD Schema Code:
<complexType name="TerminalArrivalAreaSectorType">
    <complexContent>
        <extension base="aixm:AbstractAIXMObjectType">
            <sequence>
                <group ref="aixm:TerminalArrivalAreaSectorPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractTerminalArrivalAreaSectorExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
flyByCode aixm:flyByCode 0 (1)
procedureTurnRequired aixm:procedureTurnRequired 0 (1)
altitudeDescription aixm:altitudeDescription 0 (1)
sectorDefinition aixm:sectorDefinition 0 1
extent aixm:extent 0 1
significantObstacle aixm:significantObstacle 0 unbounded
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:TerminalArrivalAreaSectorPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:TerminalArrivalAreaSector
