Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: TimesheetType
Namespace: http://www.aixm.aero/schema/5.1.1
Type: aixm:AbstractAIXMObjectType
Containing Schema: AIXM_Features.xsd
Abstract

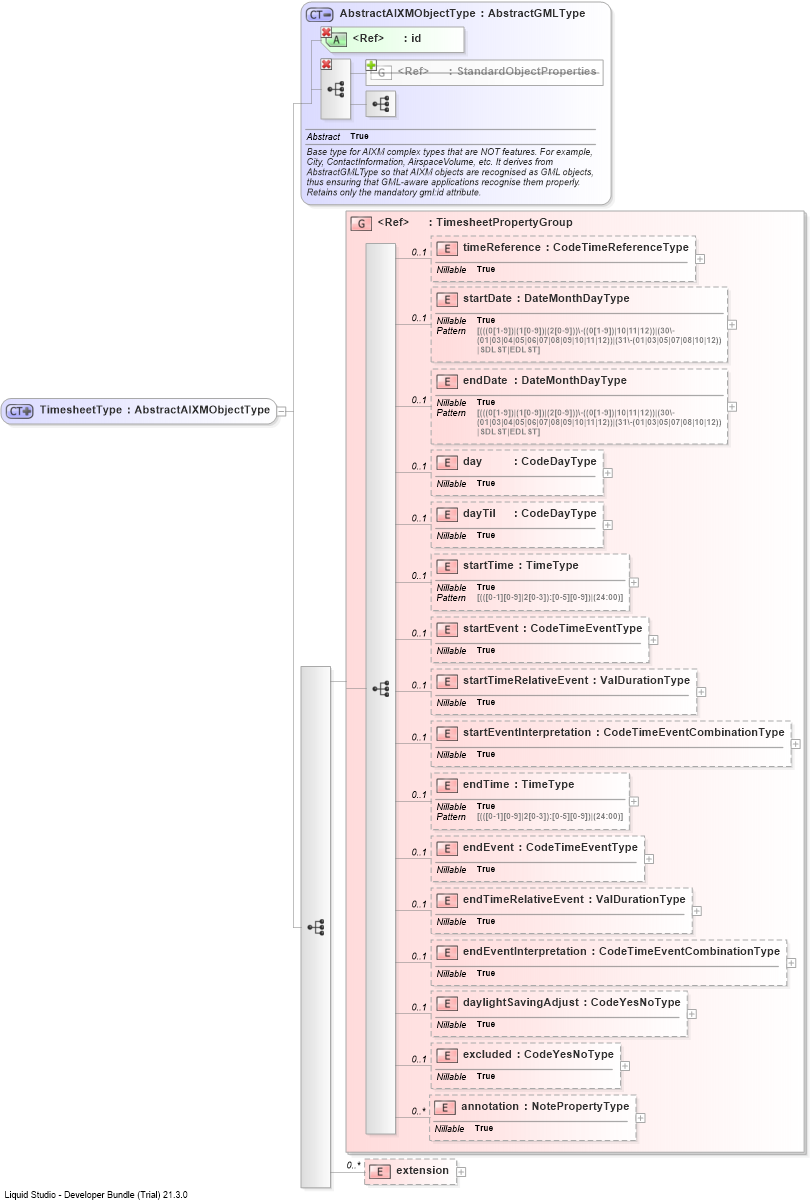

Collapse XSD Schema Diagram:
Drilldown into extensionDrilldown into annotationDrilldown into excludedDrilldown into daylightSavingAdjustDrilldown into endEventInterpretationDrilldown into endTimeRelativeEventDrilldown into endEventDrilldown into endTimeDrilldown into startEventInterpretationDrilldown into startTimeRelativeEventDrilldown into startEventDrilldown into startTimeDrilldown into dayTilDrilldown into dayDrilldown into endDateDrilldown into startDateDrilldown into timeReferenceDrilldown into TimesheetPropertyGroupDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractAIXMObjectTypeXSD Diagram of TimesheetType
Collapse XSD Schema Code:
<complexType name="TimesheetType">
    <complexContent>
        <extension base="aixm:AbstractAIXMObjectType">
            <sequence>
                <group ref="aixm:TimesheetPropertyGroup" />
                <element name="extension" minOccurs="0" maxOccurs="unbounded">
                    <complexType>
                        <choice>
                            <element ref="aixm:AbstractTimesheetExtension" />
                        </choice>
                        <attributeGroup ref="gml:OwnershipAttributeGroup" />
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
timeReference aixm:timeReference 0 (1)
startDate aixm:startDate 0 (1)
endDate aixm:endDate 0 (1)
day aixm:day 0 (1)
dayTil aixm:dayTil 0 (1)
startTime aixm:startTime 0 (1)
startEvent aixm:startEvent 0 (1)
startTimeRelativeEvent aixm:startTimeRelativeEvent 0 (1)
startEventInterpretation aixm:startEventInterpretation 0 (1)
endTime aixm:endTime 0 (1)
endEvent aixm:endEvent 0 (1)
endTimeRelativeEvent aixm:endTimeRelativeEvent 0 (1)
endEventInterpretation aixm:endEventInterpretation 0 (1)
daylightSavingAdjust aixm:daylightSavingAdjust 0 (1)
excluded aixm:excluded 0 (1)
annotation aixm:annotation 0 unbounded
extension aixm:extension 0 unbounded
<xs:group> gml:StandardObjectProperties (1) (1)
<xs:group> aixm:TimesheetPropertyGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
aixm:Timesheet
