Documentation for AIXM 5.1.1
Definition Type: ComplexType
Name: TinType
Namespace: http://www.opengis.net/gml/3.2
Type: gml:SurfaceType
Containing Schema: geometryPrimitives.xsd
Abstract

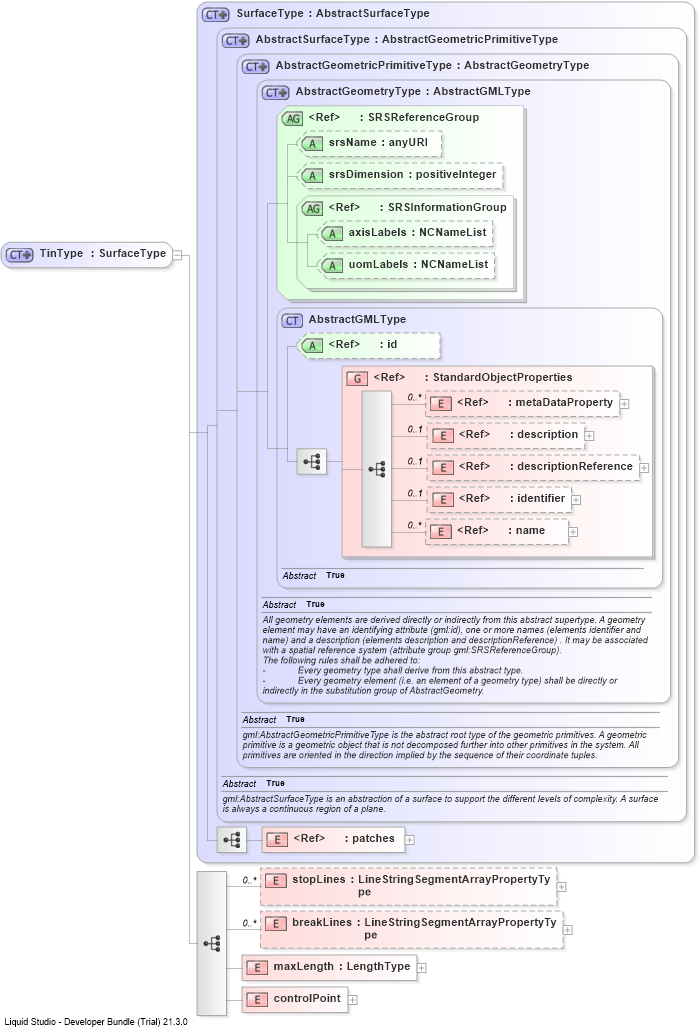

Collapse XSD Schema Diagram:
Drilldown into controlPointDrilldown into maxLengthDrilldown into breakLinesDrilldown into stopLinesDrilldown into patchesDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractSurfaceTypeDrilldown into SurfaceTypeXSD Diagram of TinType
Collapse XSD Schema Code:
<complexType name="TinType">
    <complexContent>
        <extension base="gml:SurfaceType">
            <sequence>
                <element name="stopLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded" />
                <element name="breakLines" type="gml:LineStringSegmentArrayPropertyType" minOccurs="0" maxOccurs="unbounded" />
                <element name="maxLength" type="gml:LengthType" />
                <element name="controlPoint">
                    <complexType>
                        <choice>
                            <element ref="gml:posList" />
                            <group ref="gml:geometricPositionGroup" minOccurs="3" maxOccurs="unbounded" />
                        </choice>
                    </complexType>
                </element>
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
patches gml:patches (1) (1)
stopLines gml:stopLines 0 unbounded
breakLines gml:breakLines 0 unbounded
maxLength gml:maxLength (1) (1)
controlPoint gml:controlPoint (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
Collapse Derivation Tree:
Collapse References:
gml:Tin
