Documentation for AIXM 5.1.1
Definition Type: Element
Name: Tin
Namespace: http://www.opengis.net/gml/3.2
Type: gml:TinType
Containing Schema: geometryPrimitives.xsd
Abstract
Documentation:
A tin is a triangulated surface that uses the Delauny algorithm or a similar algorithm complemented with consideration of stoplines (stopLines), breaklines (breakLines), and maximum length of triangle sides (maxLength). controlPoint shall contain a set of the positions (three or more) used as posts for this TIN (corners of the triangles in the TIN). See ISO 19107:2003, 6.4.39 for details.

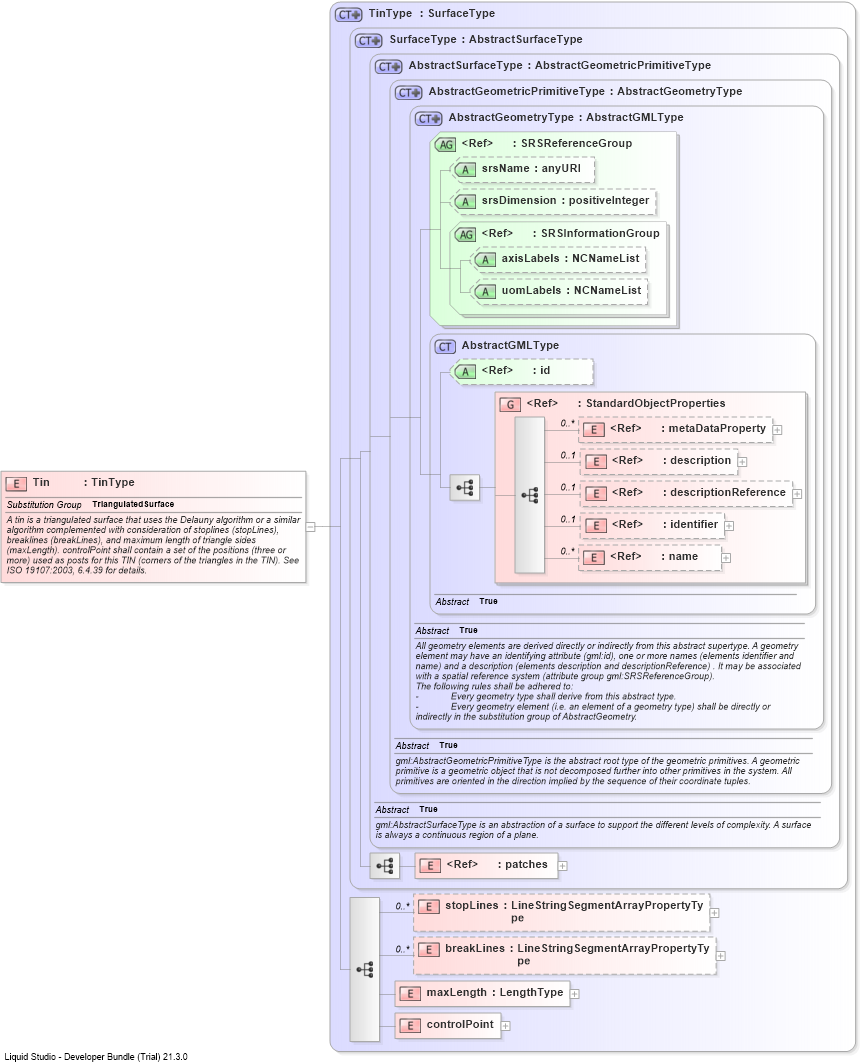

Collapse XSD Schema Diagram:
Drilldown into controlPointDrilldown into maxLengthDrilldown into breakLinesDrilldown into stopLinesDrilldown into patchesDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into uomLabelsDrilldown into axisLabelsDrilldown into SRSInformationGroupDrilldown into srsDimensionDrilldown into srsNameDrilldown into SRSReferenceGroupDrilldown into AbstractGeometryTypeDrilldown into AbstractGeometricPrimitiveTypeDrilldown into AbstractSurfaceTypeDrilldown into SurfaceTypeDrilldown into TinTypeXSD Diagram of Tin
Collapse XSD Schema Code:
<element name="Tin" type="gml:TinType" substitutionGroup="gml:TriangulatedSurface">
    <annotation>
        <documentation>A tin is a triangulated surface that uses the Delauny algorithm or a similar algorithm complemented with consideration of stoplines (stopLines), breaklines (breakLines), and maximum length of triangle sides (maxLength). controlPoint shall contain a set of the positions (three or more) used as posts for this TIN (corners of the triangles in the TIN). See ISO 19107:2003, 6.4.39 for details.</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
patches gml:patches (1) (1)
stopLines gml:stopLines 0 unbounded
breakLines gml:breakLines 0 unbounded
maxLength gml:maxLength (1) (1)
controlPoint gml:controlPoint (1) (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
srsName gml:srsName (Optional)
srsDimension gml:srsDimension (Optional)
axisLabels gml:axisLabels (Optional)
uomLabels gml:uomLabels (Optional)
Collapse Derivation Tree:
Collapse References:
gml:TriangulatedSurface
