Definition Type: Element
Name: TopoSolid
Namespace: http://www.opengis.net/gml/3.2
Type: gml:TopoSolidType
Containing Schema: topology.xsd
Abstract
Documentation:
gml:TopoSolid represents the 3-dimensional topology primitive.
The topological boundary of a solid (gml:directedFace) consists of a set of directed faces.
A solid may optionally be realised by a 3-dimensional geometric primitive (gml:solidProperty).

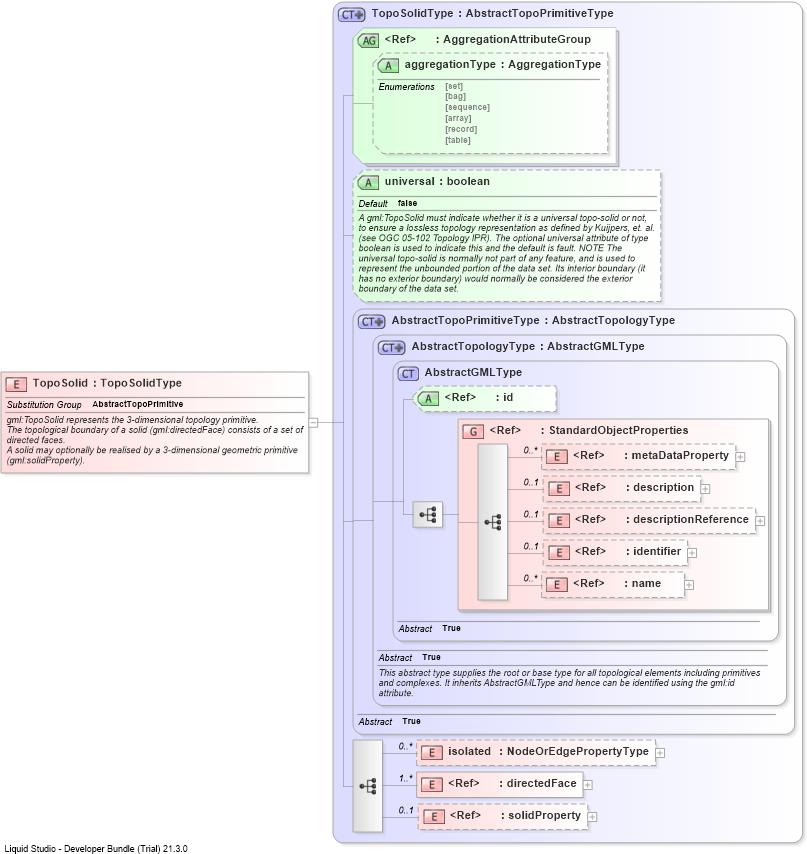

Collapse XSD Schema Diagram:
Drilldown into solidPropertyDrilldown into directedFaceDrilldown into isolatedDrilldown into nameDrilldown into identifierDrilldown into descriptionReferenceDrilldown into descriptionDrilldown into metaDataPropertyDrilldown into StandardObjectPropertiesDrilldown into idDrilldown into AbstractGMLTypeDrilldown into AbstractTopologyTypeDrilldown into AbstractTopoPrimitiveTypeDrilldown into universalDrilldown into aggregationTypeDrilldown into AggregationAttributeGroupDrilldown into TopoSolidTypeXSD Diagram of TopoSolid
Collapse XSD Schema Code:
<element name="TopoSolid" type="gml:TopoSolidType" substitutionGroup="gml:AbstractTopoPrimitive">
    <annotation>
        <documentation>gml:TopoSolid represents the 3-dimensional topology primitive.
The topological boundary of a solid (gml:directedFace) consists of a set of directed faces.
A solid may optionally be realised by a 3-dimensional geometric primitive (gml:solidProperty).</documentation>
    </annotation>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
descriptionReference gml:descriptionReference 0 (1)
identifier gml:identifier 0 (1)
name gml:name 0 unbounded
isolated gml:isolated 0 unbounded
directedFace gml:directedFace (1) unbounded
solidProperty gml:solidProperty 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id (Optional)
aggregationType gml:aggregationType (Optional)
universal gml:universal false Optional
Collapse Derivation Tree:
Collapse References:
gml:AbstractTopoPrimitive
